Westerschelde 29 April 2012 |
|
Name |

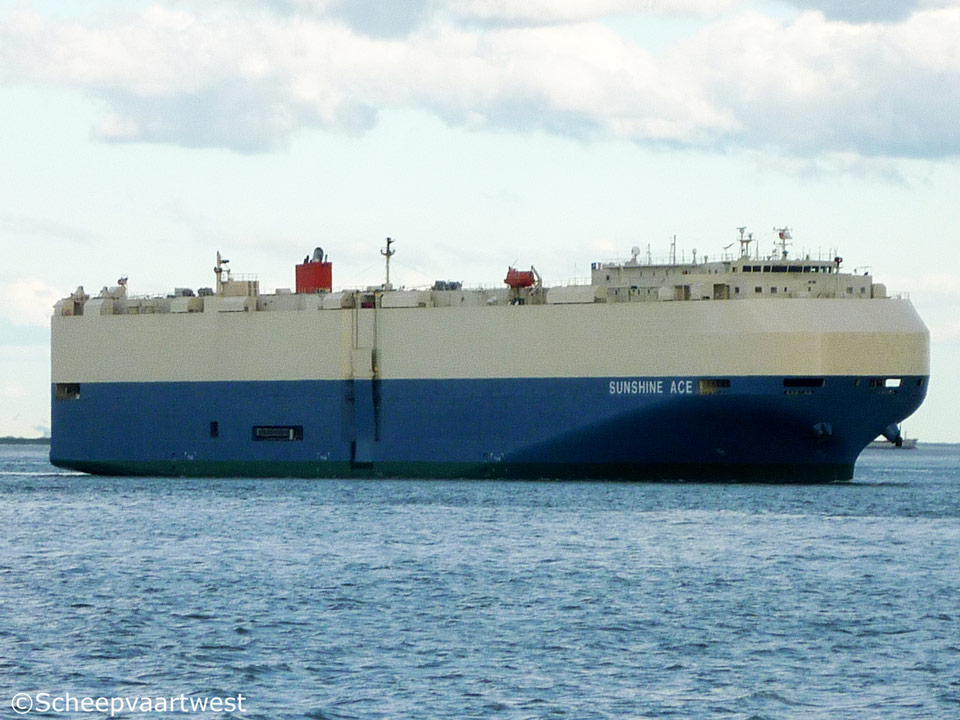

SUNSHINE ACE |
|
Type |
Roll-On/Roll-Off vehicle carrier |
|
IMO-number |
9338852 |
|
Call sign |
C6XN6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.917 t registered |
|
DWT |
Summer: 18.858 t |
|
NT |
18.167 t registered |
|
Length |
199,95 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,86 x 32,20 x 21,19 m |
|
Freeboard |
4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 22,2 knots |
|
Built |
2009 |
|
Keel laid |
13.05.2008 |
|
Launch date |
08.11.2008 |
|
Date of completion |
17.02.2009 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Japan |
|
Yard number |
703 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine 15.130 kW at 100,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,8 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 3.900 kVA |
|
Number of cars |
5.220 |
|
Tank capacities |
Fuel oil: 2.951 m³ Fresh water: 398 m³ |
|
Manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Previous owners |
Snowscape Car Carriers S.A. |
|
Latest data adjustment |
06 January 2017 |
