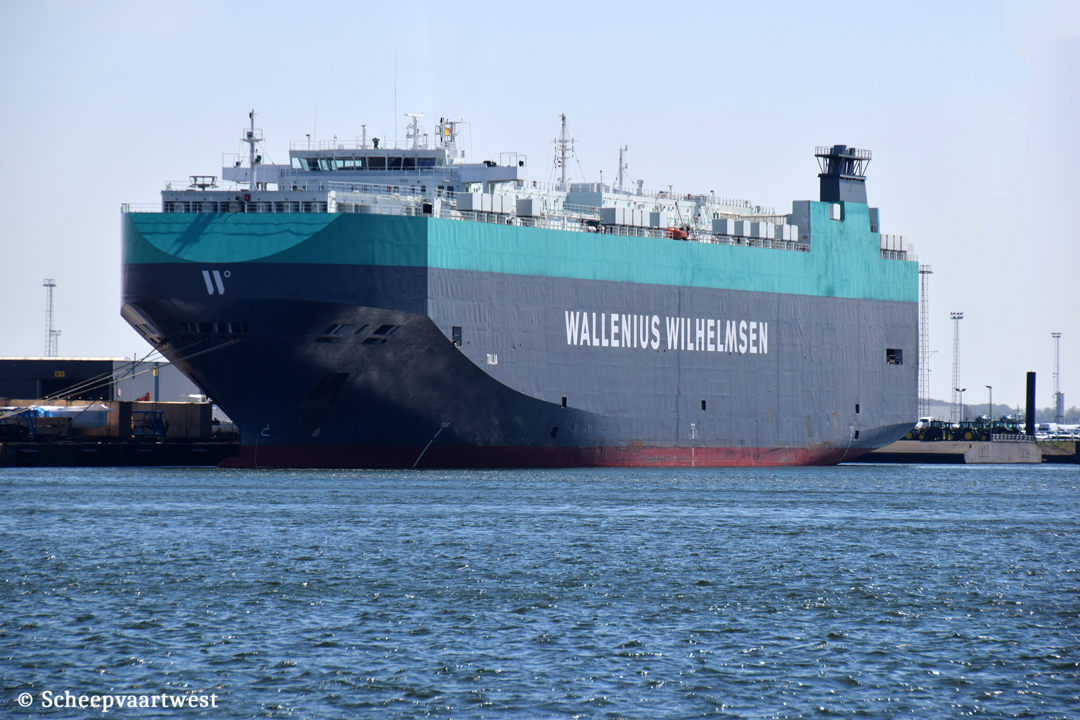

| Zeebrugge 20 AprilL 2022 |
 |
 |
 |
 |
 |
 |
|||||

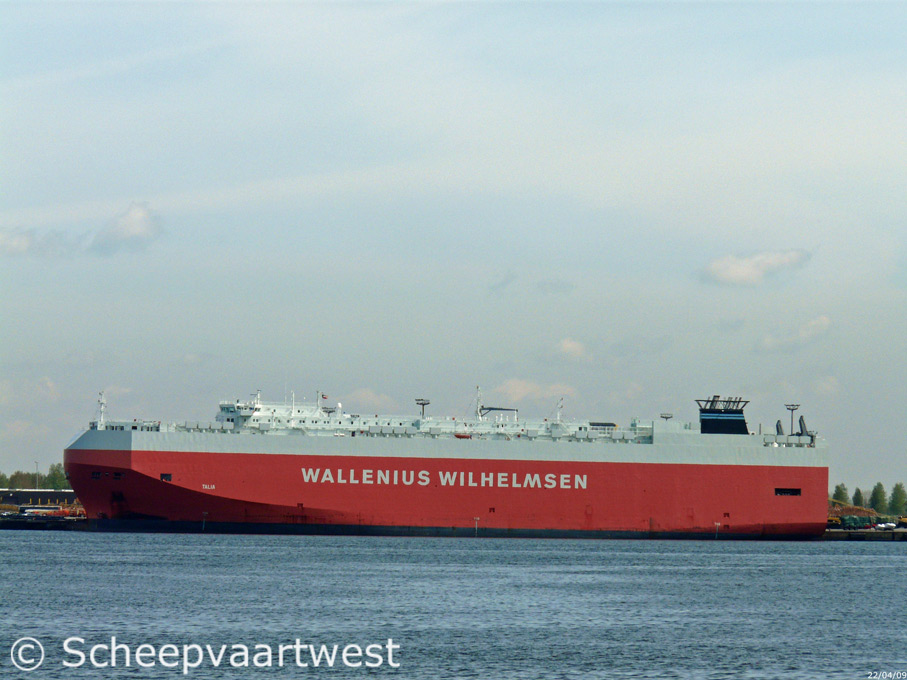

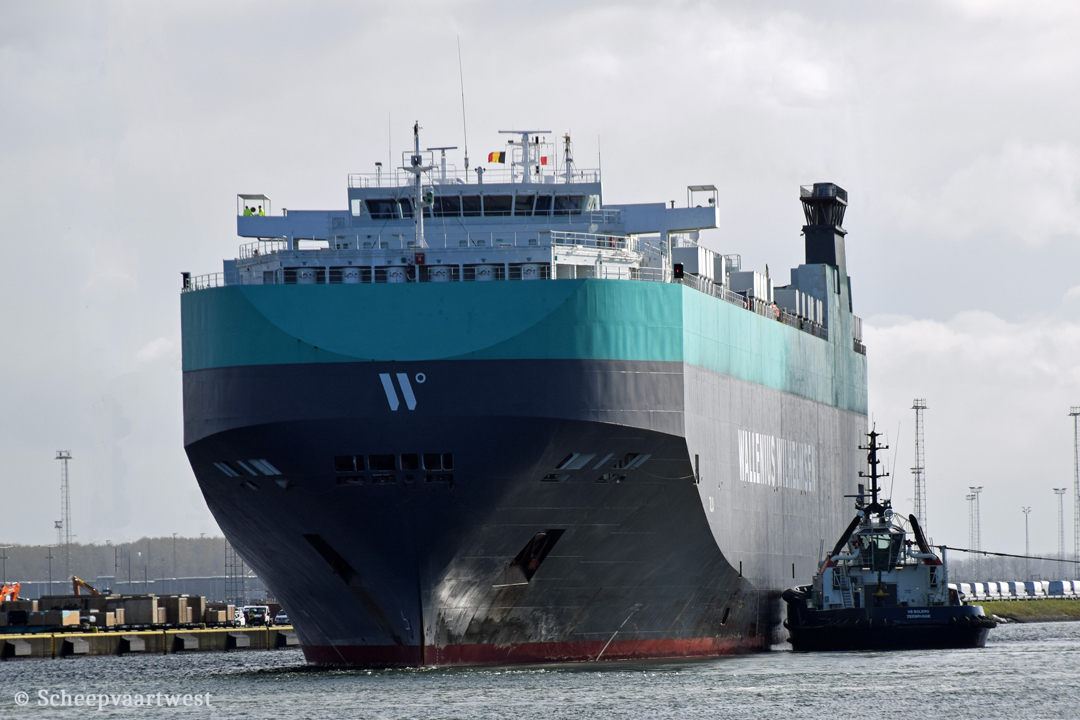

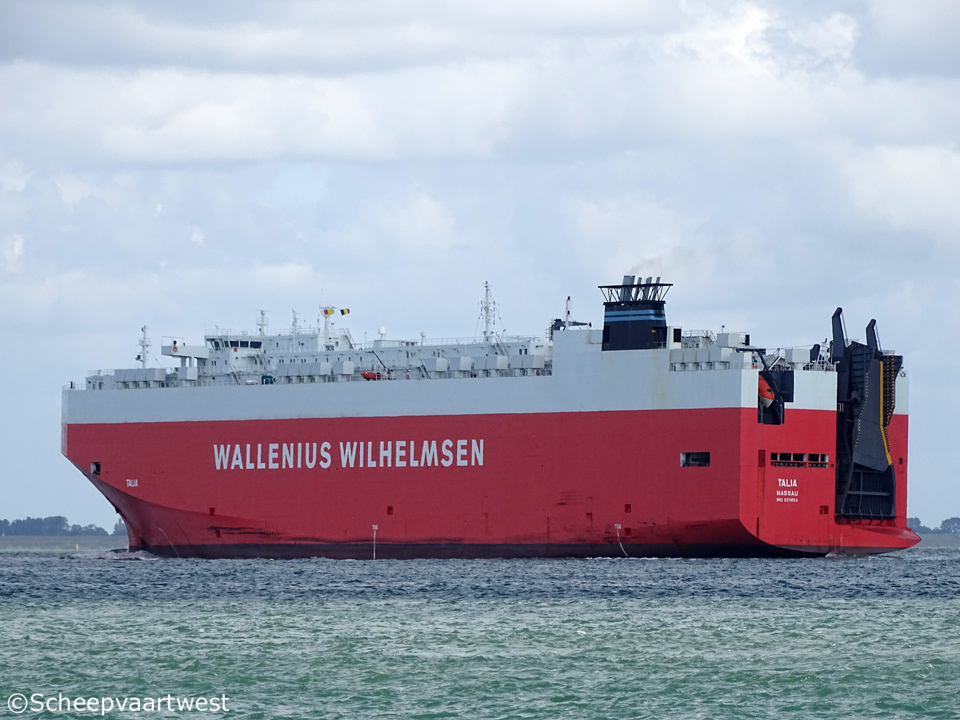

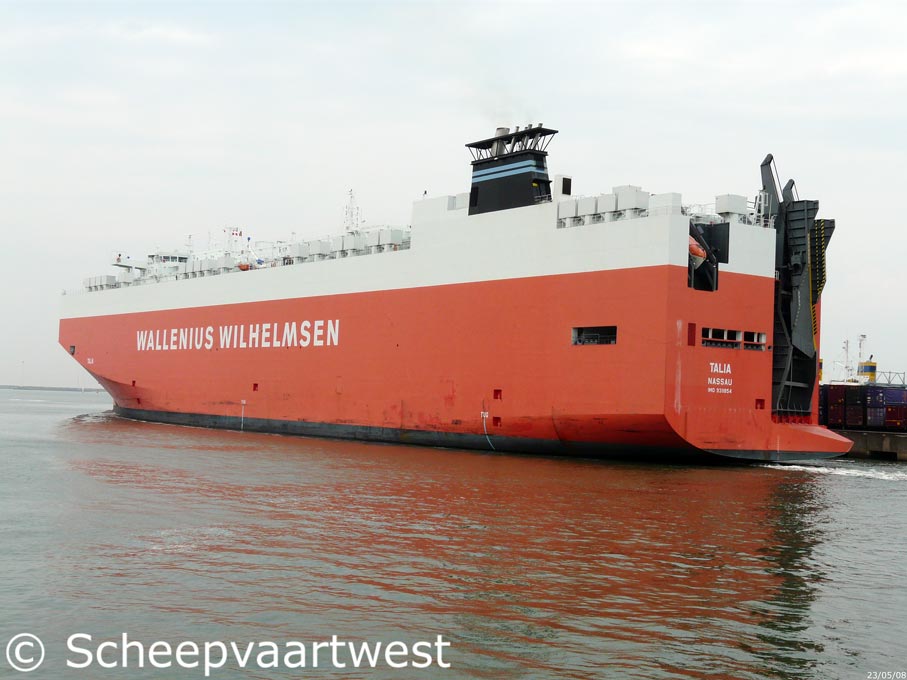

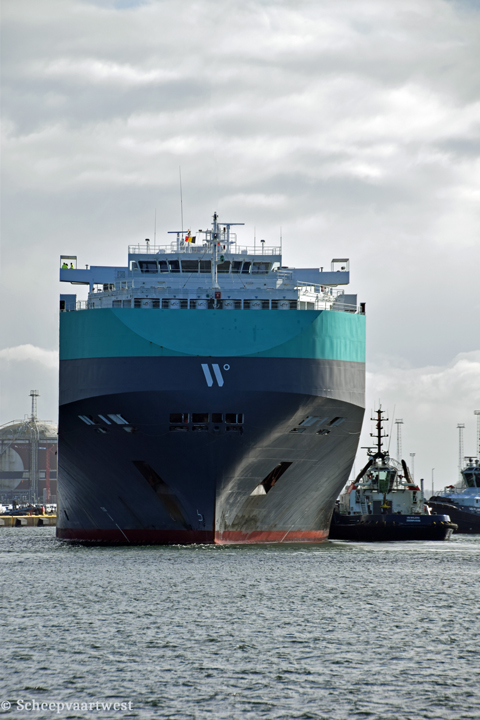

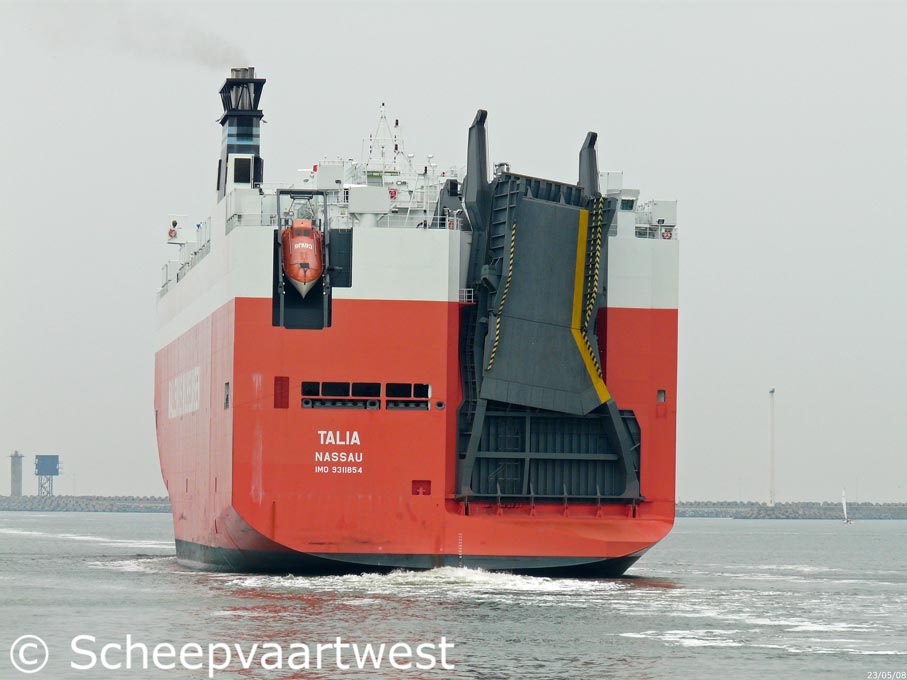

| Zeebrugge 22/10/24 | Zee 22/10/24 | Zeebrugge 23/05/08 | Zeebrugge 23/05/08 | Zeebrugge 22/04/09 | Westerschelde 12/07/14 | |||||
|
TALIA |
|
|
Type |
Vehicles Carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9311854 |
|
Call sign |
C6VJ6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
Summer: 21.021 t |
|
NT |
21.037 t |
|
Length |
199,95 m overall 188,35 m between perpendiculars |
|
Breadth |
32,51 m overall 32,25 m moulded |
|
Draught |
Summer: 10,00 m |
|
Air draft |
46,00 m |
|
Freeboard |
9.980 mm |
|
Depth |
19,98 m |
|
Speed |
20,0 knots |
|
Built |
2006 |
|
Keel laid |
29/12/2005 |
|
Launch |
14/06/2006 |
|
Date of completion |
01/08/2006 |
|
Builder |
Stocnia Gdynia S.A. Group Gdynia Gdynia Poland |
|
Yard number |
8168/14 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W/Cegielski 7S60MC-C- 7 cylinder combustion engine output 15.828 kW at 105,0 rpm |
|
Number of screws |
1x Fixed pitch propeller |
|
Boilers |
1x Exhaust gas water tube AV-7 1x Vertical shell type Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN 7L28/32H main diesel generatorsets total output of each 1.470 kW |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset 244 kW |
|
Bow thruster |
1.400 kW |
|
Capacity car units RT43 |
6.400 1 RT43 unit = 7,38975 m² |
|
Basic complement |
27 |
|
Stern ramp starboard |
Length: 38,00 m Width: 7,00 m Capacity: 150 t |
|
Midship ramp starboard |
Length: 25,00 m Width: 5,00 m Capacity: 22 t |
|
Number of decks |
13 (of which 4 are hoistable) |
|
Car deck areas |
Total: 54.900 m² Hoistable: 17.000 m³ |
|
Ventilation |
20 air changes an hour |
|
Tank capacities |
Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ Ballast: 7.773,93 m³ |
|
Anchor chain |
Length: 660 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew |
29 |
|
ISM & commercial manager |
Stamco Ship Management Company Ltd. 21 Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
WWL - Wilh. Wilhelmsen Logistics |
|
Registered owner |
Talia Maritime Limited Isle of Man United Kingdom |
|
Latest data adjustment |
03 May 2022 |
