Name |

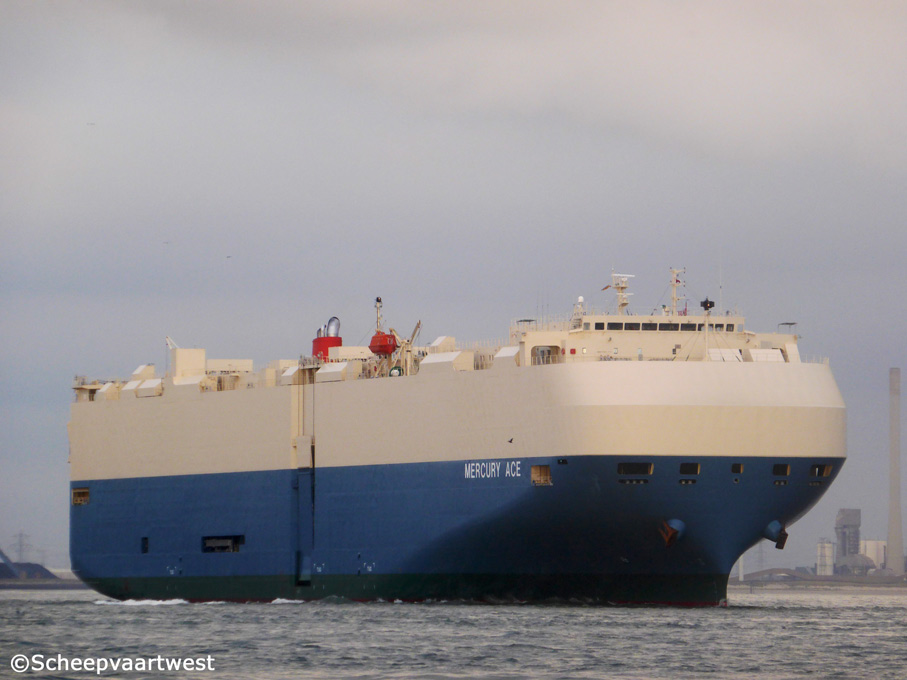

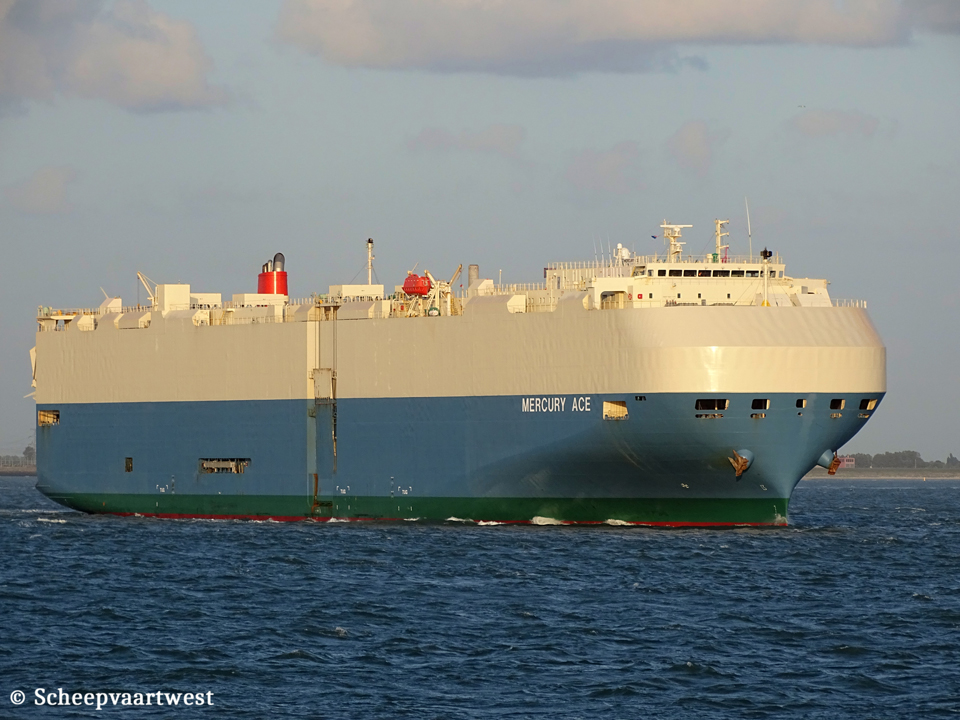

MERCURY ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9591052 |
|
Call sign |
3FNS7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
59.409 |
|
DWT |
Summer: 19.110 t |
|
NRT |
19.081 t |
|
Length |
199,97 m |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,01 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 22,3 knots Service: 20,6 knots |
|
Built |
2011 |
|
Keel laid |
21/12/2010 |
|
Launch date |
12/05/2011 |
|
Date of completion |
21/06/2011 |
|
Builder |
Imabari Shipbuilding Marugame Yard Co. Ltd. Marugame Japan |
|
Yard number |
1533 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubish-Kobe Hatsudoki 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.100 kW / 20.530 hp at 99,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 4.700 kVA |
|
Bow thruster |
1x 1.250 kW |
|
Car capacity |
6.109 |
|
Tank capacities |
Fuel oil: 2.783 m³ Fresh water: 668 m³ Water ballast: 9.177 m³ |
|
Manager |
Shoei Kisen Kaisha, Ltd. Imabari Japan |
|
Operator |
MOL - Mitsui O.S.K Lines, Ltd. |
|
Registered owner |
Los Halillos Shipping Co., S.A. Care of Shoei Kisen Kaisha Ltd. 4-52, Kora-cho 1-chome Imabari-shi Ehime-ken Japan |
|
Latest data adjustment |
03 January 2024 |
