Westerschelde 30 July 2020 |
 |
 |
 |
 |
|||
| Westerschelde 16/06/14 | Westerschelde 16/06/14 | Westerschelde 18/06/14 | Westerschelde 19/04/16 | |||
|
Name |

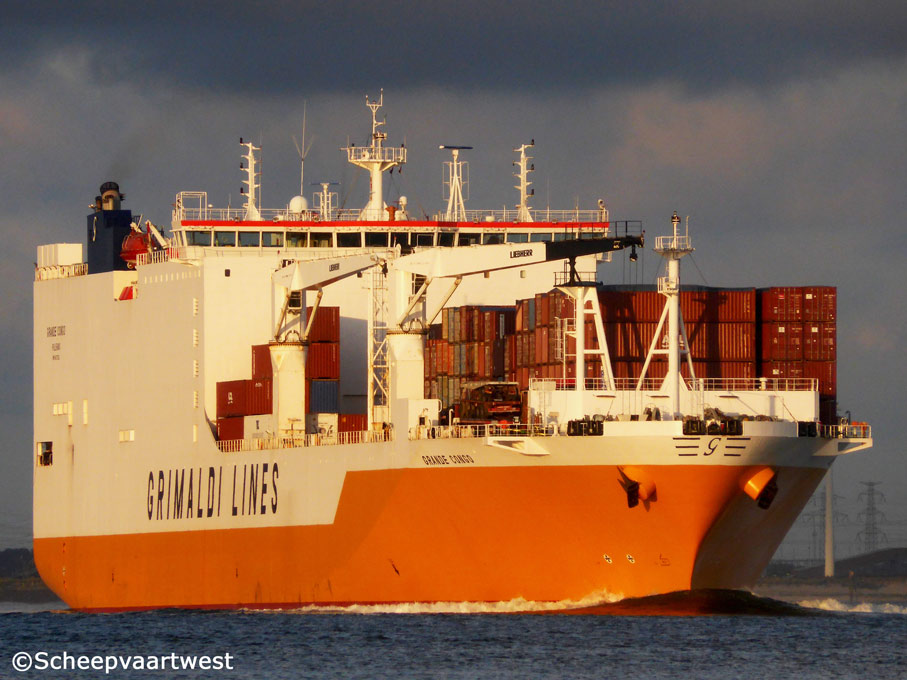

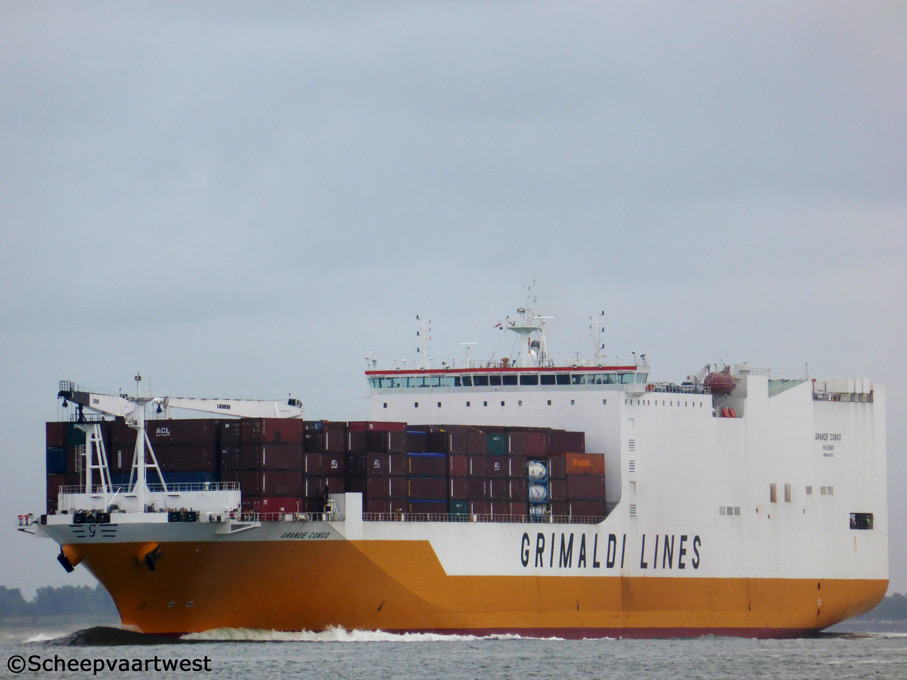

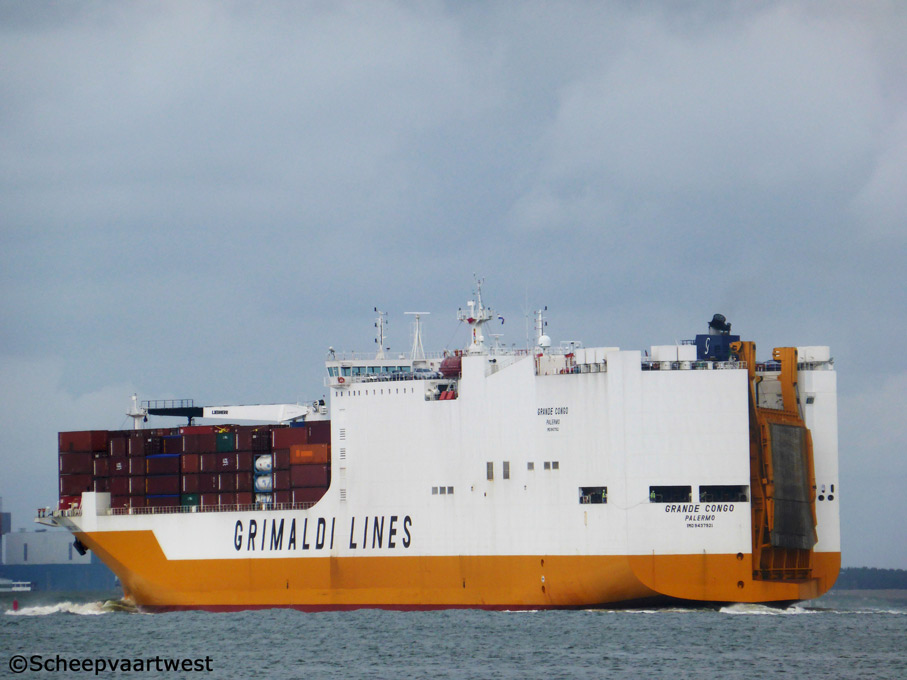

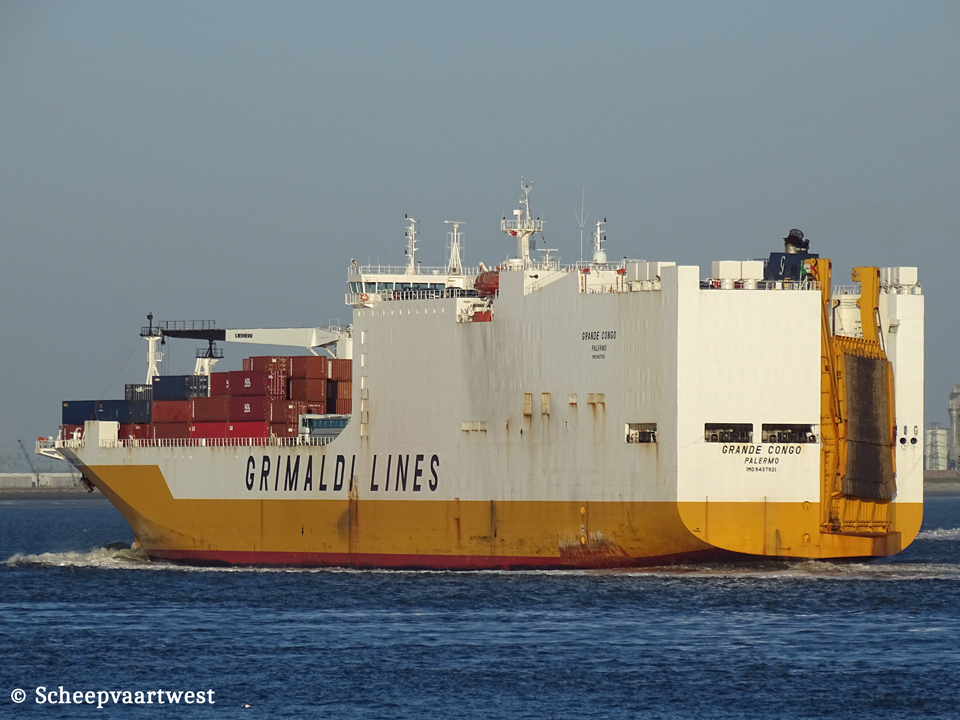

GRANDE CONGO |
|
Type |
RoCon - Roll-On/Roll-Off carrier Equipped for carriage of containers |
|
IMO-number |
9437921 |
|
Call sign |
IBPI |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
47.658 |
|
DWT |
Summer: 25.682 t |
|
NT |
14.297 |
|
Displacement |
41.733 t |
|
Number of 20ft containers |
1.318 |
|
Length |
211,00 m overall 196,80 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
9,75 m |
|
Lane meters |
4.190 m |
|
Depth |
13,51 m |
|
Speed |
Max.: 20,9 knots Service: 17,8 knots |
|
Built |
2010 |
|
Keel laid |
22/04/2010 |
|
Delivery date |
04/11/2010 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8029 |
|
Hull material |
Steel - High resistance and ordinary |
|
Main engine |
1x MAN-B&W 8S60MC-C - 2 stroke 8 cylinder 600 x 2.400 mm combustion engine 19.040 kW / 25.887 hp at 105,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Bow thrusters |
2x 1.000 kW, forward 1x 1.000 kW, aft |
|
Number of complete decks |
4 |
|
Number of partial decks |
8 |
|
Number of cars |
3.616 |
|
Number of ramps |
1 |
|
Cargo gear |
2x Deck cranes - SWL 40,0 t each |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Commercial manager |
Grimaldi Group Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
ISM manager |
Grimaldi Deep Sea Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Registered owner |
Grimaldi Deep Sea Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Latest data adjustment |
07 may 2025 |
