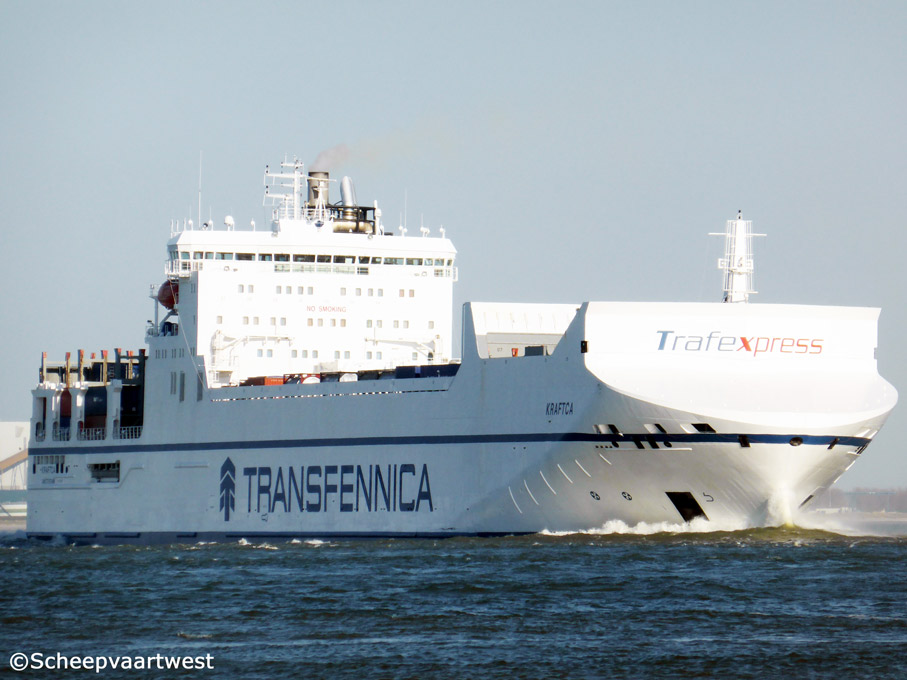

Kraftca 01

Westerschelde 18 April 2015

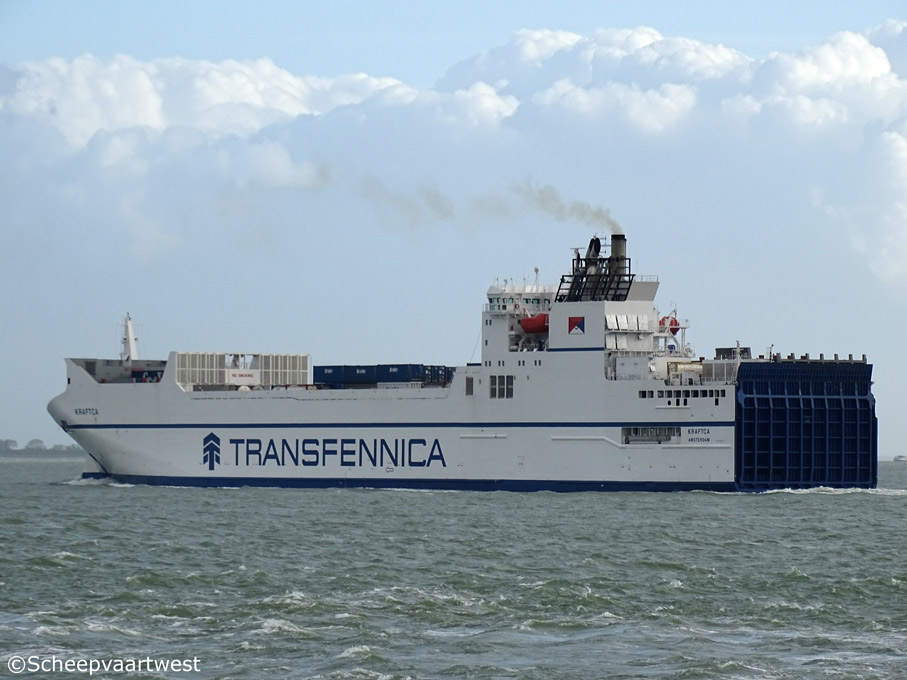

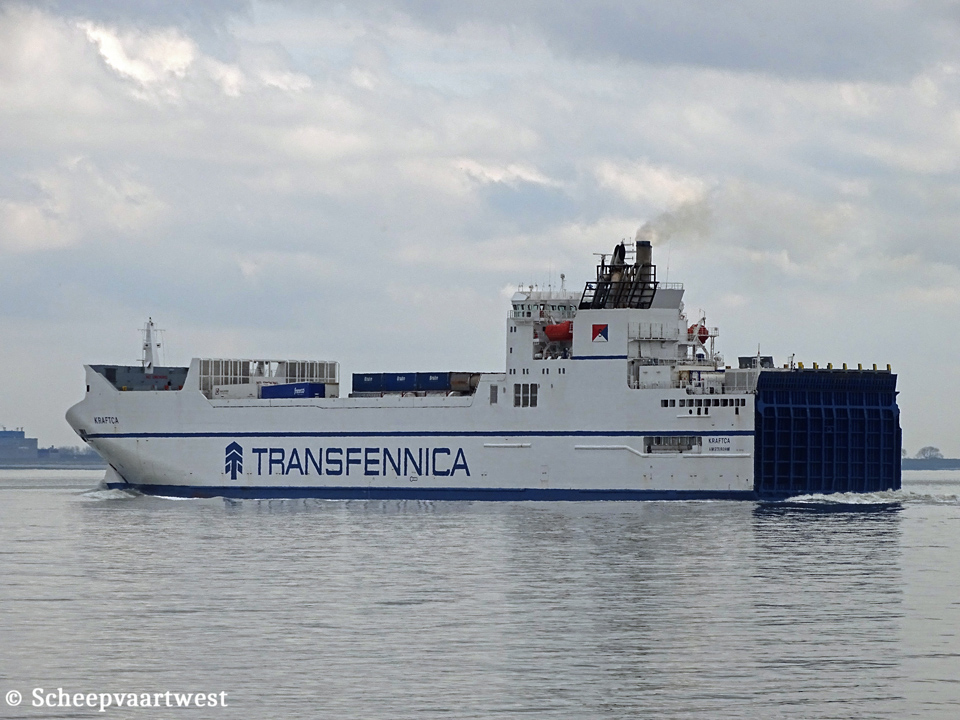

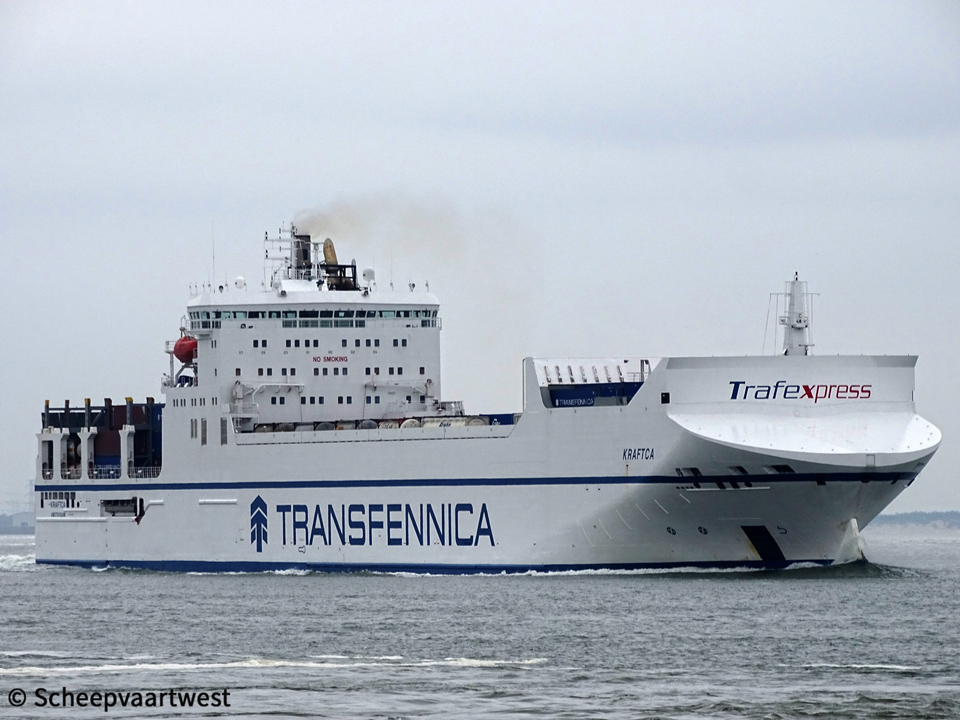

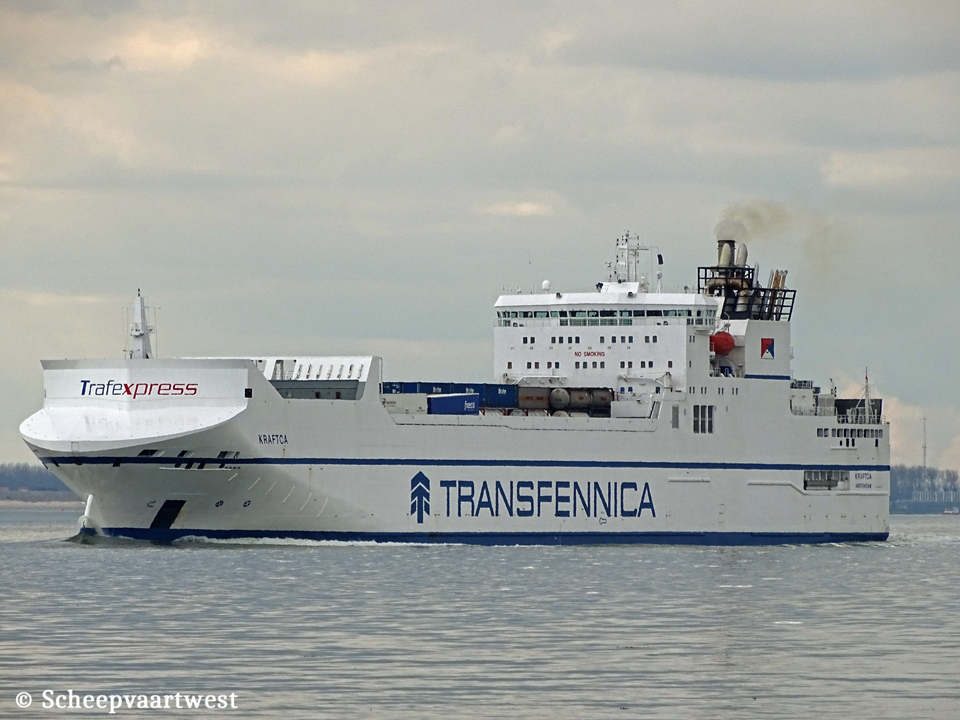

Kraftca 03   Kraftca 04   Kraftca IMO 9307360 05   Kraftca IMO 9307360 06
Westerschelde 13/11/15 Westerschelde 19/05/18 Westerschelde 06/03/18 Westerschelde 06/03/18


Name

KRAFTCA

Type

Roll-On/Roll-Off carrier

IMO-number

9307360

Call sign

PHGY

Flag

The Netherlands

Port of registry

Amsterdam

GT

28.289 t

DWT

Summer: 17.618 t

NT

8.486 t

Number of 20ft containers

643

Reefer capacity

20

Length

205,00 m overall

190,00 m between perpendiculars

Breadth

25,50 m moulded

Draught

8,50 m

Lane metres

2.800

Freeboard

5.609 mm

Depth

15,65 m

Speed

Max.: 22,7 knots

Built

2006

Launch date

10/06/2006

Delivery date

03/11/2006

Builder

Stocznia Szczecinska Nowa Sp. z o.o.

Szczecin (Stettin)

Poland

Yard number

B201-II/2

Hull material

Steel

Continuous decks

1

Main engine

2x Wärtsilä 12V46C - 4 stroke single acting 12 cylinder 460 x 580 mm diesel engine 25.215 kW / 34.670 hp at 500 rpm

Build: 19/10/2005

Manufacturer: Wärtsilä Diesel Oy, Treiste - Italy

Propellers

2x Controllable pitch propellers - aft at 120,0 rpm

Boilers

1x CHF Aalborg Industries 65,00 m² - 10,0 bar

1x CHF Aalborg Industries 39,00 m² - 10,0 bar

2x CHR Wiesloch 115,00 m² - 10,0 bar

Generators

2x Diesel generatorsets each 1.615 kVA - 1.292 kW - 1.848 hp

Emergency generators

1x Diesel generatorset 625 kVA - 500 kW - 639 hp

Bow thruster

2x 1.250 kW

Number of holds

3

Number of passengers

12

Number of beds

12

Tank capacities

Fuel oil: 2.361,2 m³

Cargo gear

Gearless

Manager

Spliethoff´s Bevrachtingskantoor

Radarweg 36

1042 AA Amsterdam

The Netherlands

Operator

Transfennica OY

Helsinki

Finland

Registered owner

Rederij Kraftca

Amsterdam

The Netherlands

Previous owners

11/2006 - 01/2016 C.V. Scheepvaartonderneming Kraftca, Amsterdam - The Netherlands

Group

Spliethoff

Latest data adjustment

04 October 2023
