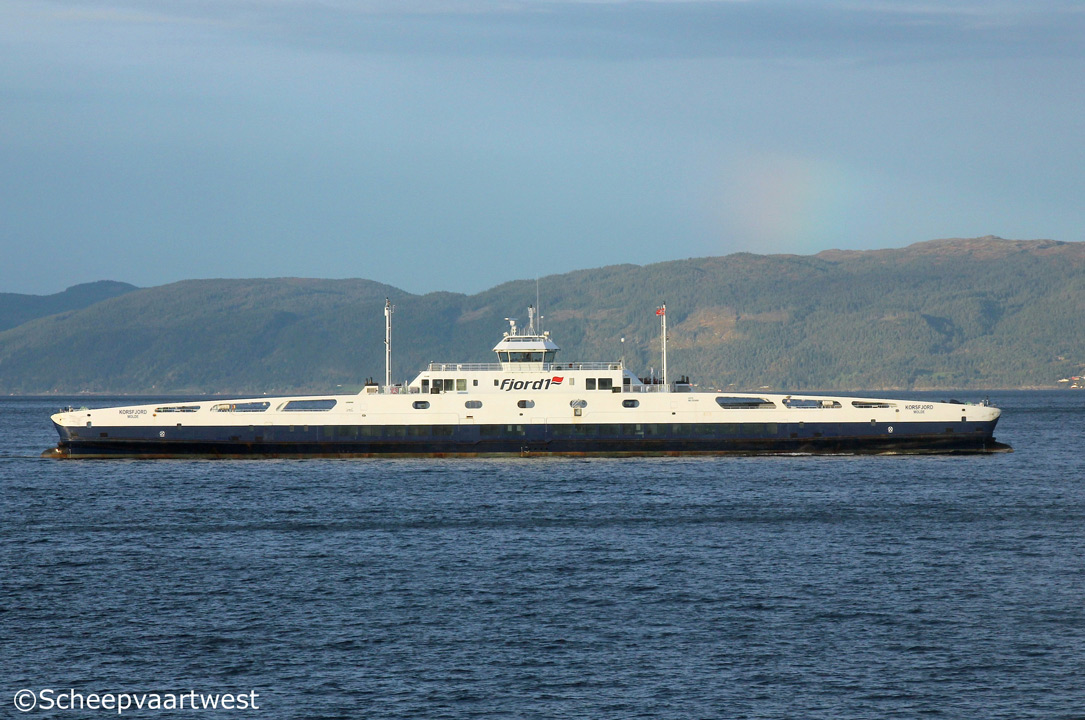

Korsfjord 01

Trondheimfjord, Norway 22 September 2017

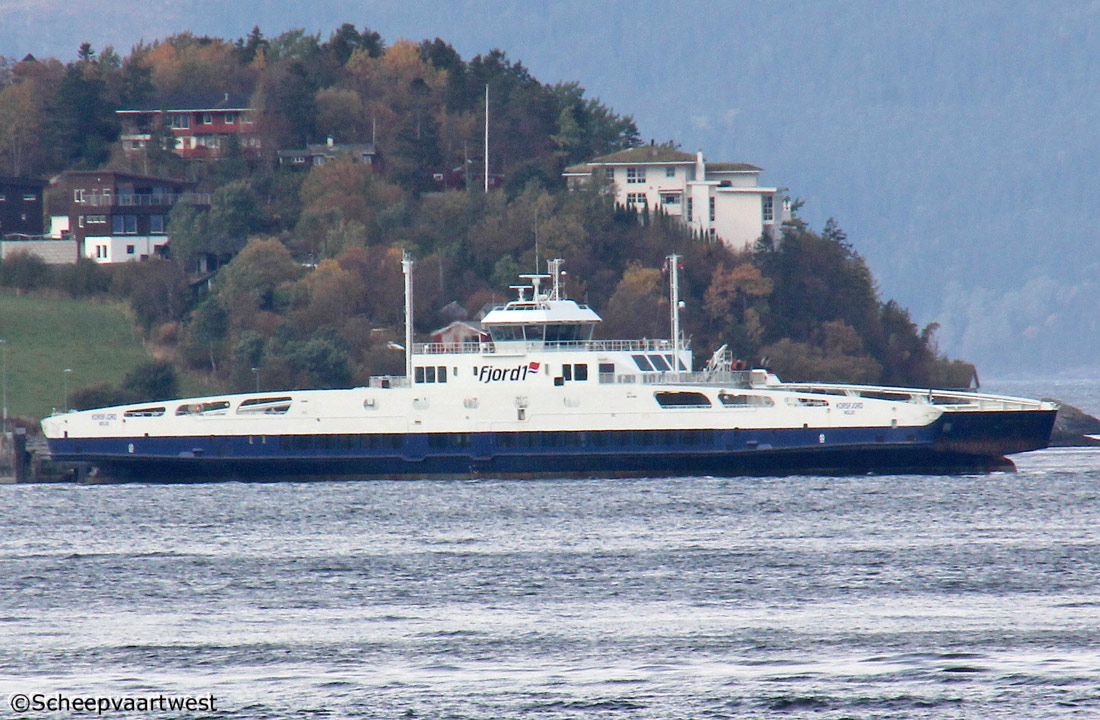

Korsfjord 02
Trondheimfjord 30/09/17



Name

KORSFJORD

Type

Roll-On/Roll-Off vessel - Ferry

IMO-number

9534860

Call sign

LDTG

Flag

Norway

Port of registry

Molde

GT

2.971 t

DWT

Summer: 857 t

Length

122,68 m overall

Breadth

16,20 m overall

Draught

3,50 m

Depth

5,14 m

Speed

Service: 11,0 knots

Max.: 16,0 knots

Routes

2011 Flakk - Rørvik

Built

2010

Keel laid

22.12.2008

Launch date

09.07.2010

Delivery date

25.10.2010

Builder

Remontowa
Gdansk
Poland

Yard number

#1994/4

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Propulsion motors

2x Mitsubishi GS16R-MPTK LNG - 9000 kW / 690 Volt 50 Hz at 1.500 rpm asynchronous, frequency controlled

Generators

2x Main combustion generatorsets each 840 kW, gas fuelled

Emergency generator

1x Mitsunishi S12R-MPTA diesel generatorset 900 kW, diesel oil fuelled

Thrusters

2x Azimuth thrusters each 1.000 kW, fore and aft

Ro-Ro ramps

1x Centre or only 2,70 x 12,00 m
1x Centre or only 2,70 x 12,00 m

Deck load total

750 t

Number of passengers

390

Number of personal cars

125

Cars/trailers combination

12 trailer + 55 cars

Tank capacities

LNG gas tank: 125 m³

Fuel oil: 22 m³

fresh water: 27 m³

Crew size

9

Manager

Fjord1 Group
Molde
Norway

Operator

Fjord1

Previous operator

10.2010 - 04.10.2012 Fjord1 MRF, Molde - Norway

Owner

Fjord1 Group
Molde
Norway

Latest data adjustment

03 December 2017
