Westerschelde 05 November 2012 |
 |
 |
 |
||
| Westerschelde 05/11/12 | Westerschelde 21/04/15 | Westerschelde 13/06/15 | ||
|
Name |

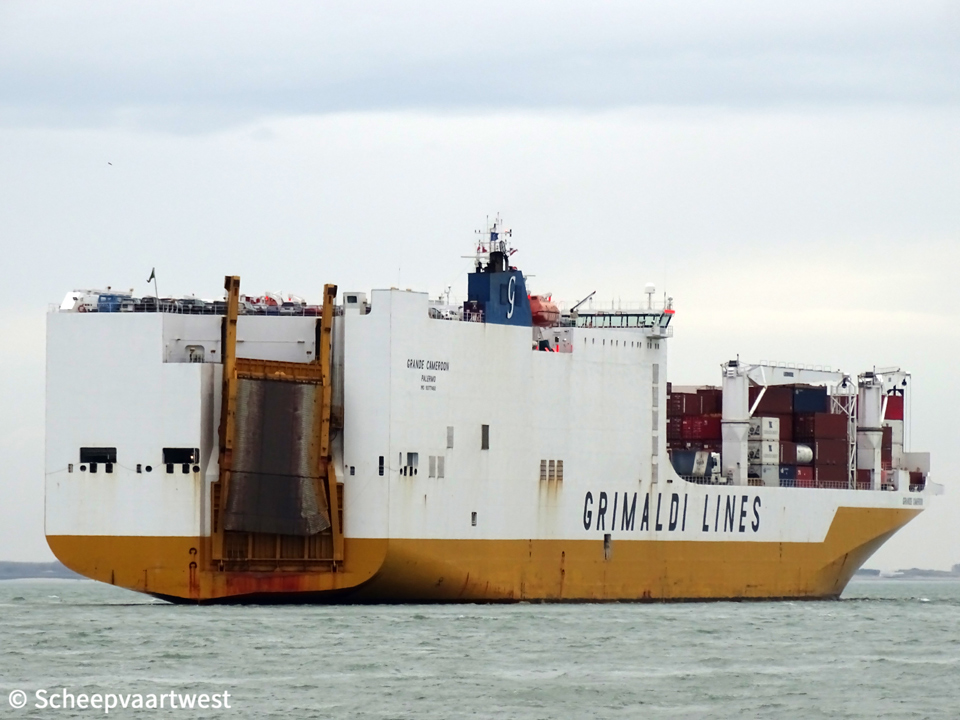

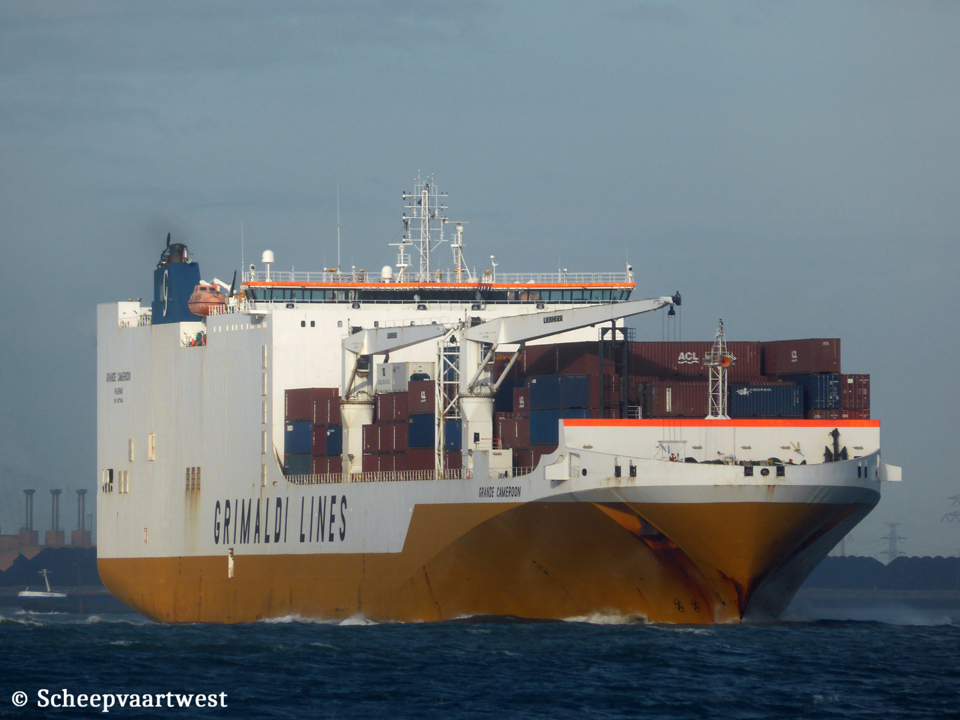

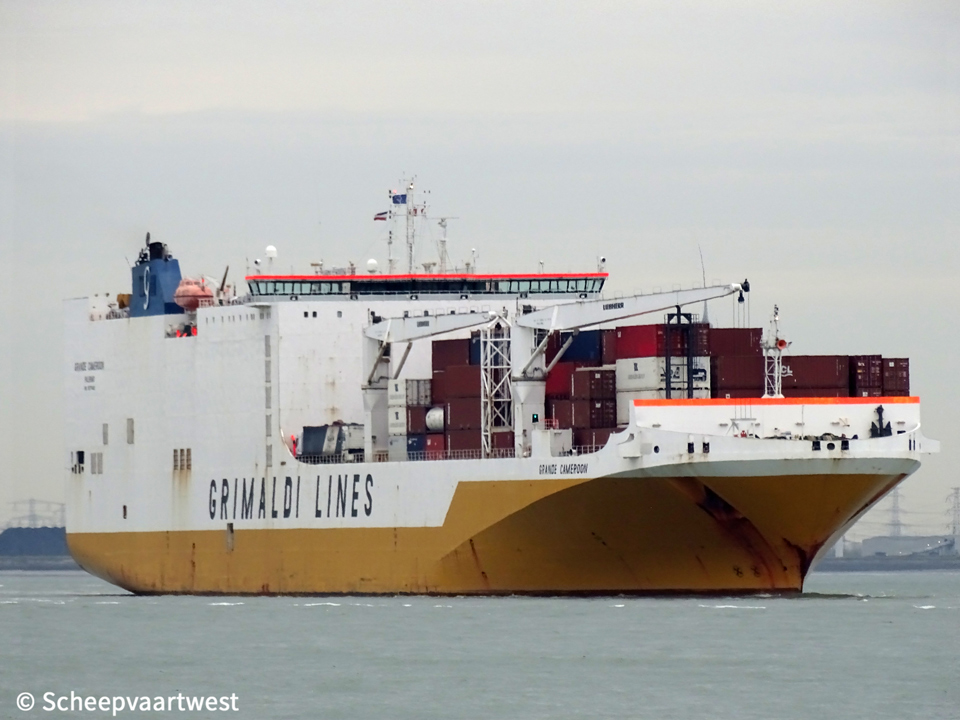

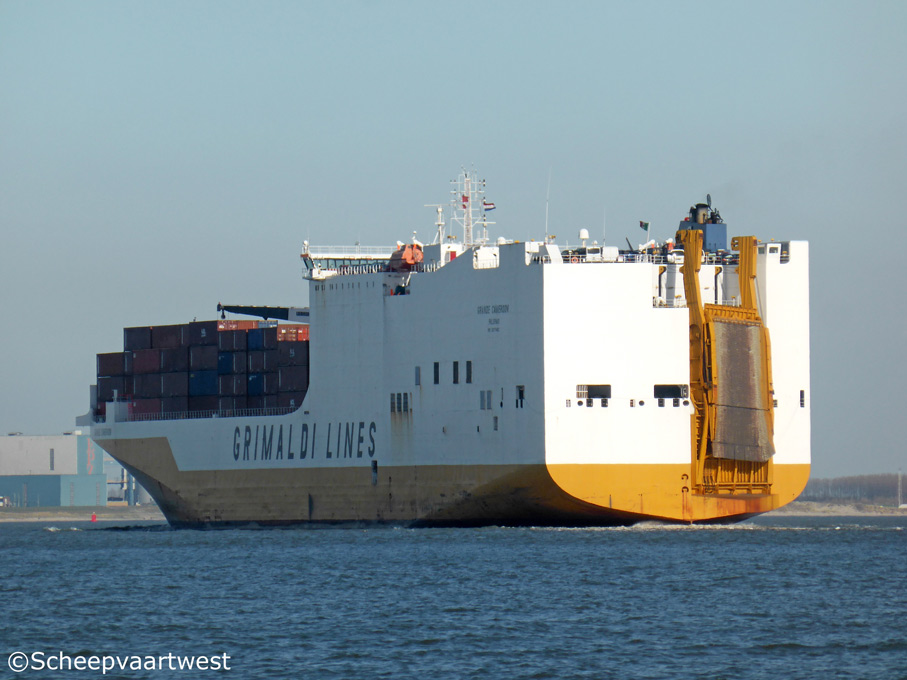

GRANDE CAMEROON |
|
Type |
Roll-On/ Roll-Off carrier - RoCon |
|
IMO-number |
9377482 |
|
Call sign |
ICEW |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
47.218 t |
|
DWT |
26.652 t |
|
Number of 20ft containers |
1.360 |
|
Container capacity 14t |
800 |
|
Reefer capacity |
25 |
|
Length |
210,92 m overall 196,80 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
9,75 m |
|
Depth |
21,53 m |
|
Lanemetres |
4.190 m |
|
Speed |
Max.: 21,9 knots Service: 21,0 knots |
|
Built |
2010 |
|
Keel laid |
12/09/2009 |
|
Launch date |
12/03/2010 |
|
Date of completion |
26/06/2010 |
|
Builder |
Uljanik Shipyard (Brodogradiliste Uljanik) Pula Croatia |
|
Yard number |
476 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom |
|
Main engine |
1x MAN-B&W/Uljanik 8S60MC-C - 2 stroke single acting 8 cylinder 600 x 2.400 mm combustion engine 19.040 kW / 25.887 hp at 105,0 rpm Builder: Brodogradiliste 'Uljanik' d.d. (MAN B&W), Pula - Croatia |
|
Propellers |
1x Fixed pitch propeller - aft at 105,0 rpm |
|
Shaft generator |
1x 1.400 kW |
|
Generators |
4x Main diesel generatorsets each 1.180 kW |
|
Bow thruster |
2x 1.000 kW, forward 1x 1.000 kW, aft |
|
Number of decks |
Complete decks: 4 Partial decks: 8 |
|
Number of ramps |
1x Stern ramp |
|
Number of cars |
3.890 |
|
Number of trucks |
194 |
|
Cargo gear |
2x Cranes - SWL 40,0 t each |
|
Number of passengers |
12 |
|
Manager |
Grimaldi Group Napoli Italy |
|
Operator |
Grimaldi Compagnia di Navigazione S.p.A. (Grinavi) Palermo Italy |
|
Owner |
Inarme Industria Arnamento Meridionale S.p.A. (INAME) Napoli Italy |
|
Latest data adjustment |
18 August 2020 |
