Westerschelde December 2016 |
 |
 |
|
| Westerschelde 03/11/18 | Westerschelde 20/05/17 | |
|
Name |

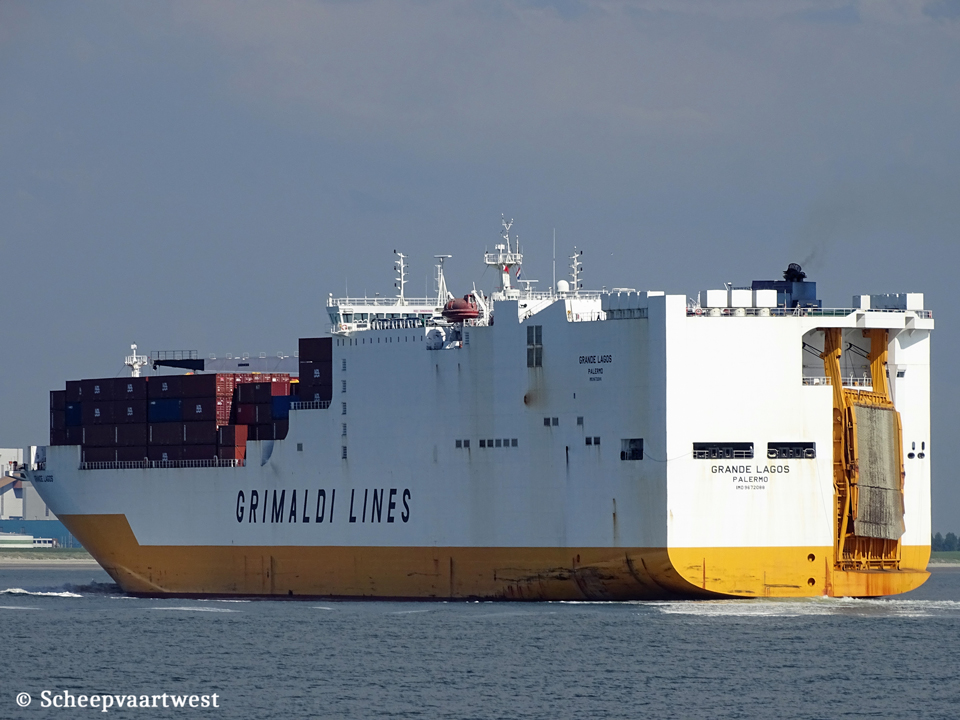

GRANDE LAGOS |
|
Type |
Roll-On/Roll-Off carrier - RoCon |
|
IMO-number |
9672088 |
|
Call sign |
IBDW |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
71.543 t |
|
DWT |
Summer: 31.340 t |
|
NT |
21.462 t |
|
Number of 20ft containers |
1.614 |
|
Length |
236,32 m overall 221,80 m between perpendiculars |
|
Breadth |
36,19 m |
|
Draught |
Max: 9,75 m |
|
Lane metres |
5.772 m |
|
Depth |
13,87 m |
|
Speed |
20,5 knots |
|
Built |
2014 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
8138 |
|
Hull material |
High resistance and ordinary steel |
|
Main engine |
1x Wärtsilä/HHI 8RT-flex58T - 2 stroke 8 cylinder 580 x 2.416 mm combustion engine 17.400 kW / 23.657 hp at 102,0 rpm |
|
Number of screws |
1x Controllable pitch propeller |
|
Generators |
3x Diesel generatorsets each 1.860 kW |
|
Emergence generator |
1x Diesel generatorset 952 kW |
|
Bow thrusters |
2x Forward 1x Aft |
|
Number of decks |
5x Complete decks 8x Partial decks |
|
Car Capacity |
3.500 |
|
Ramp capacity |
1x Stern ramp 250 t |
|
Gear |
2x Deck cranes - SWL 40,0 t each |
|
Commercial manager |
Grimaldi Group Spa Via Marchese Campodisola 13 80133 Naples NA Italy |
|
Registration owner |
Grimaldi Deep Sea SpA Via Emerico Amari,8 90139 Palermo Italy |
|
Group |
Grimaldi Group Napoli Italy |
|
Latest data adjustment |
13 September 2023 |
