Westerschelde 25 April 2016 |
|
Name |

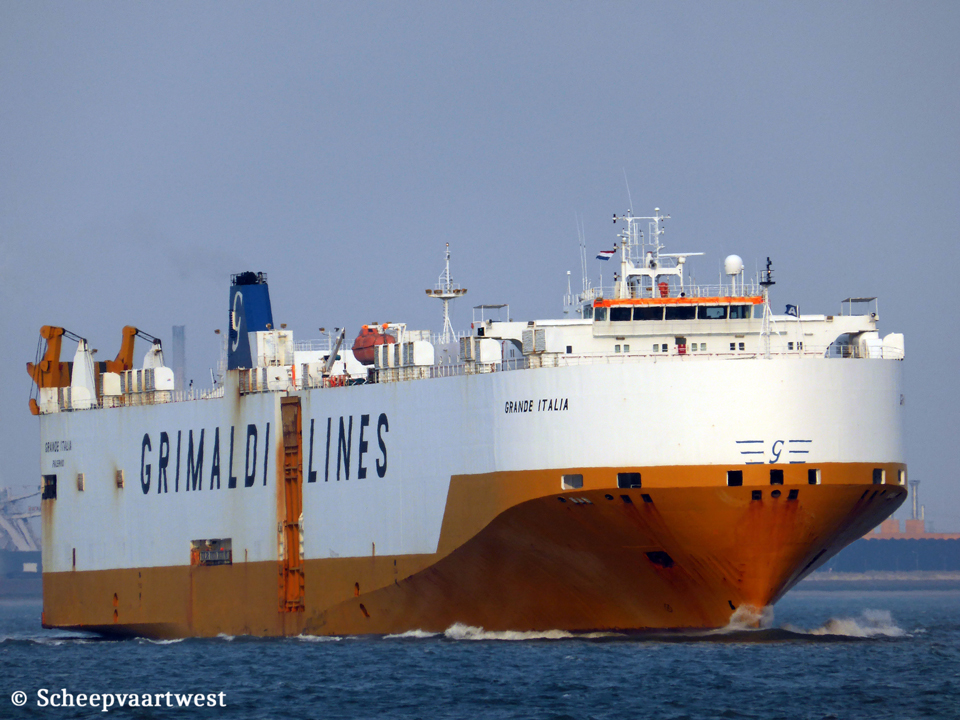

GRANDE ITALIA |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9227912 |
|
Call sign |
IBTF |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
37.753 |
|
DWT |
Summer: 12.594 t |
|
NY |
13.441 |
|
Number of 20ft containers |
720 |
|
Length |
176,50 m overall 165,00 m between perpendiculars |
|
Breadth |
31,32 m |
|
Draught |
8,77 m |
|
Lane meters |
3.000 m |
|
Depth |
14,46 m |
|
Speed |
Service: 20,1 knots |
|
Built |
2001 |
|
Keel laid |
23/02/2001 |
|
Launch date |
21/07/2001 |
|
Delivery date |
267/10/2001 |
|
Builder |
Uljanik Pula Croatia |
|
Yard number |
438 |
|
Hull material |
Steel |
|
Main engine power |
MAN-B&W 7S50MC - 2 stroke single acting 7 cylinder 500 x 1.910 mm combustion engine 11.060 kW / 15.037 hp at 127,0 rpm Builder: Uljanik Strojogradnja dd, Pula - Croatia |
|
Propellers |
1x Controllable pitch propeller - aft at 127,0 rpm |
|
Generators |
4x Generatorsets total 3.868 kW |
|
Number of decks |
10 |
|
Number of cars |
4.650 |
|
Number of passengers |
12 |
|
Ramp |
Max. width: 6,50 m Max. height: 4,80 m Capacity: 100 t |
|
Commercial manager |
Grimaldi Group Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
ISM manager |
Grimaldi Euromed Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Operator |
Grimaldi Lines |
|
Registered owner |
Grimaldi Euromed Spa Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Latest data adjustment |
09 May 2025 |
