Alicante - Spain 19 April 2016 |
|
Name |

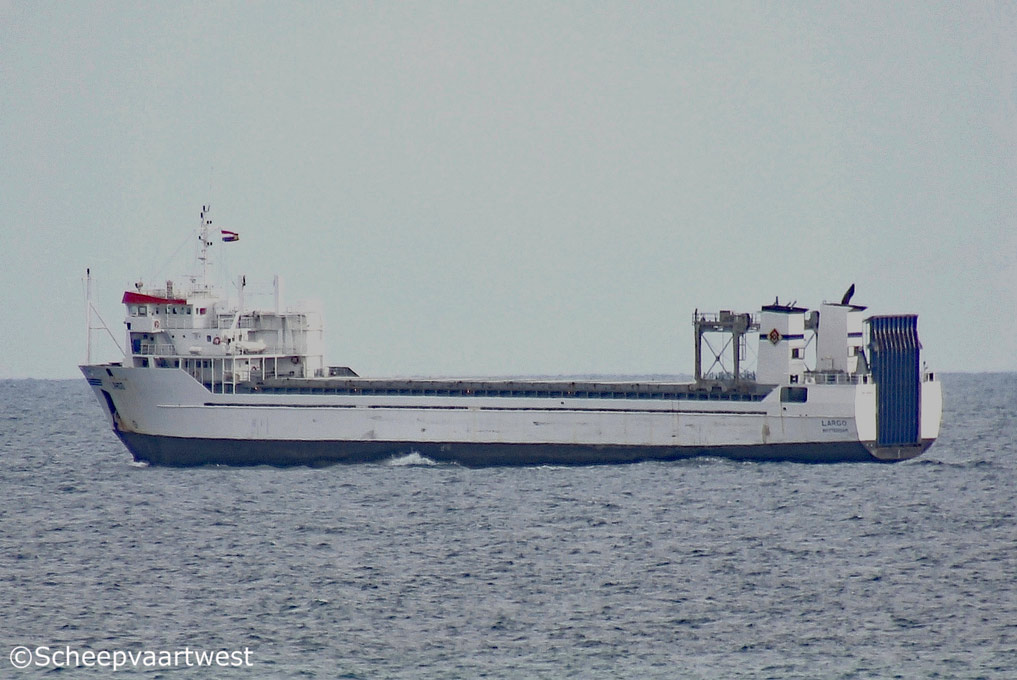

LARGO |
|
Type |
Roll-On/Roll-Off cargo vessel |
|
IMO-number |
8808678 |
|
Call sign |
PFNC |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
3.998 t |
|
DWT |
Summer: 4.001 t |
|
NT |
1.642 t |
|
Number of 20ft containers |
On hatches: 70 |
|
Length |
90,82 m overall 83,25 m between perpendiculars |
|
Breadth |
16,18 m extreme 15,85 m moulded |
|
Draught |
Summer: 6,42 m |
|
Air draft |
35,00 m |
|
Depth |
10,10 m to upper deck |
|
Speed |
15,2 knots ballast 14,5 knots loaded |
|
Built |
1990 |
|
Keel laid |
24.10.1988 |
|
Launch date |
16.09.1989 |
|
Date of completion |
13.01.1990 |
|
Builder |
Bodewes Scheepswerven B.V. |
|
Yard number |
559 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 12V32D - 4 stroke single acting 12 cylinder 320 x 350 mm diesel engine 4.500 kW / 6.118 hp at 750 rpm Manufacturer: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 203 rpm |
|
Boilers |
2x Thermal oil heaters |
|
Shaft generator |
1x Indar 395 kVA |
|
Generators |
3x Scania marine diesel 153 kW at 1.500 rpm each connected to Indar generators 135 kVA - 380 Volt 50 Hz |
|
Bow thruster |
1x 200 kW |
|
Holds |
Depth of hold upper: 5,05 m Depth of hold lower: 5,05 m Length of hold upper: 77,40 m Length of hold lower: 58,30 m |
|
Hold capacity |
Hold upper: 4.203 m³ Hold lower: 3.314 m³ |
|
Hatches |
Wide of hold & hatch: 12,64 m Hatch opening: 46,20 m |
|
Hatch type |
Pontoons lifted by hatch crane |
|
Tweendeck |
Movable: 46,20 x 12,65 m |
|
Ramps |
Sideramp: 8,50 x 6,50 m Axelload: Max.: 55,0 t Sternramp: 13,50 x 7,00 m Axelload: 24,0 t |
|
Load & discharge equipment |
Palletlifts: 2x Elevator load max. 10,0 t each Dimensions: 3,00 x 2,50 m |
|
Max. permitted loads |
Tanktop:15 t/m² Tweendeck:3,5 t/m² Hatch cover:1,6 t/m² |
|
Tank capacities |
Ballast: 1.508 m³ IFO: 375 m³ Gas oil: 49 m³ |
|
Manager |
Kustvaartbedrijf Moerman B.V. |
|
Owner |
Rederi AB Lillgaard |
|
Previous owners |
01.1990 - 01.2005 C.V. Arctic Marine, Rotterdam - The Netherlands |
|
Latest data adjustment |
20 May 2016 |
