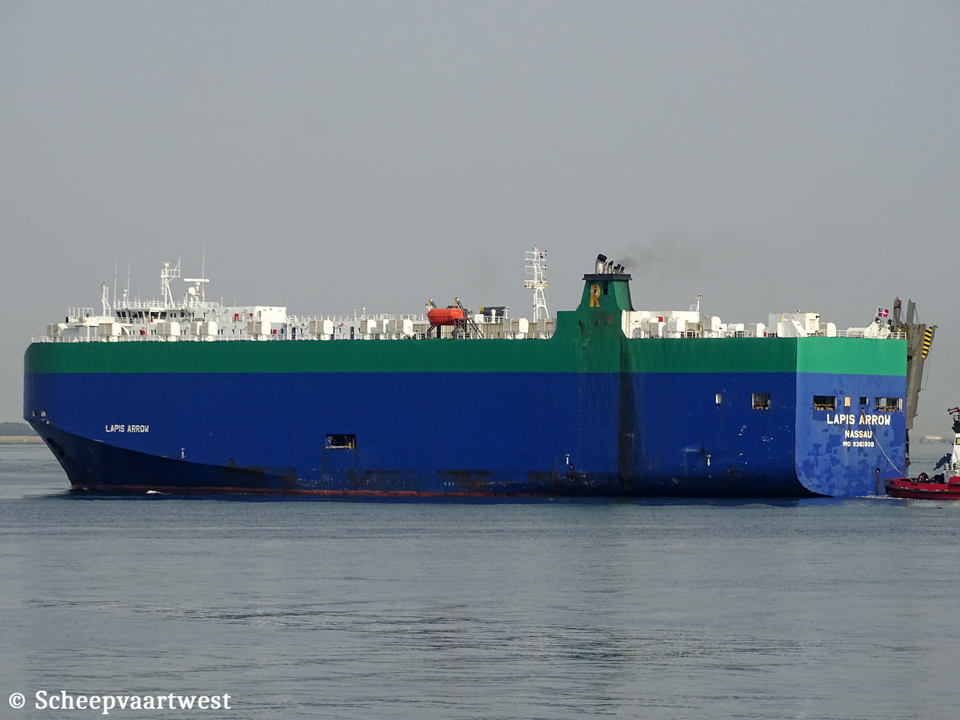

Westerschelde 05 April 2017 |
 |
 |
 |
 |
|||

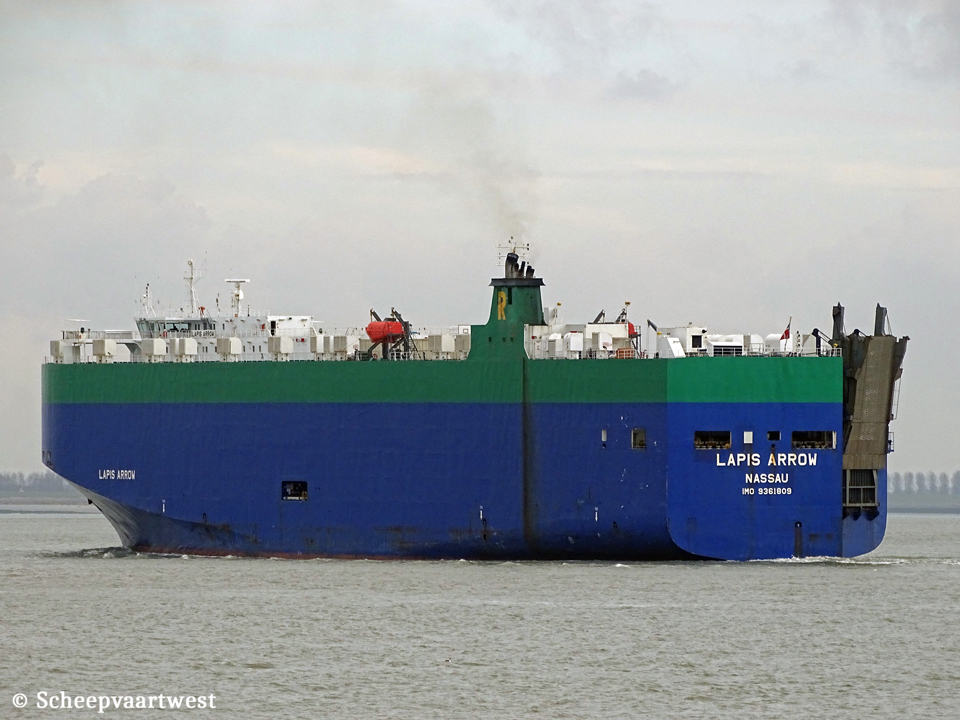

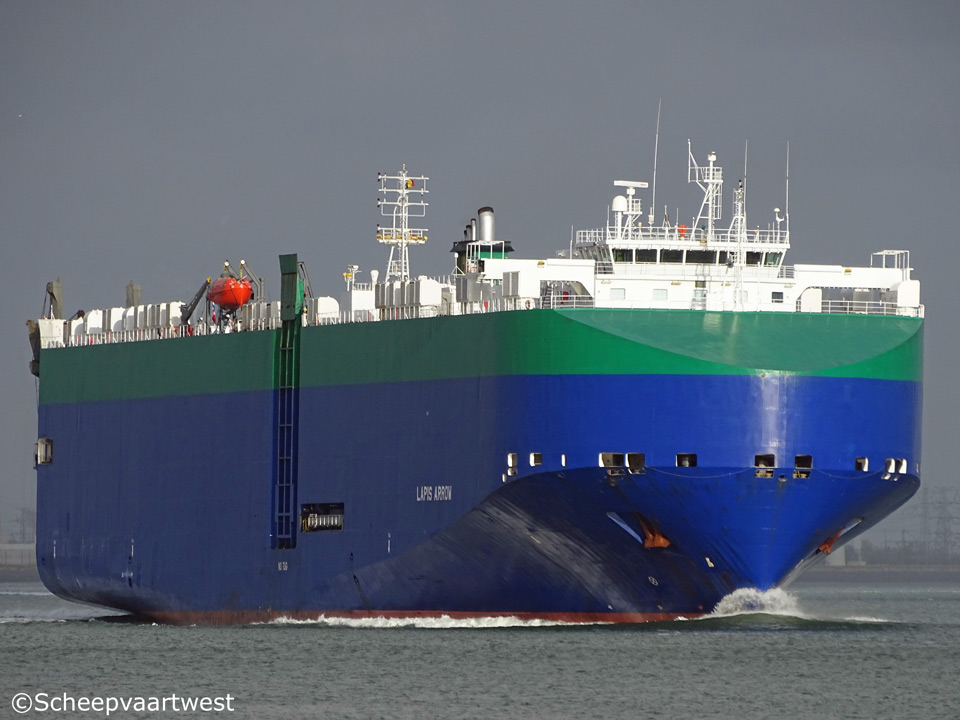

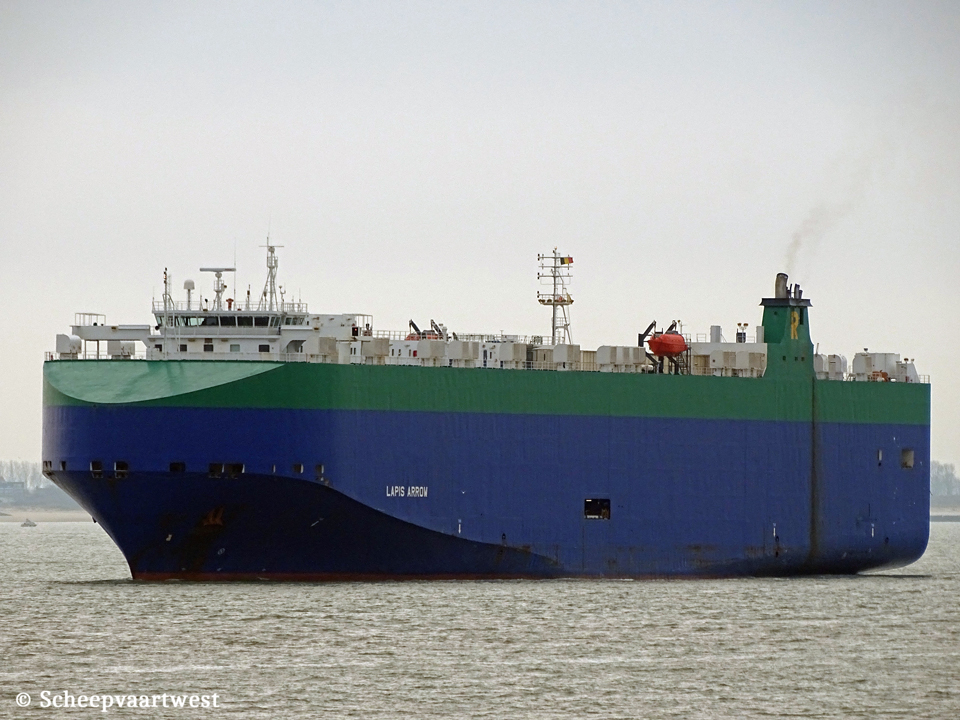

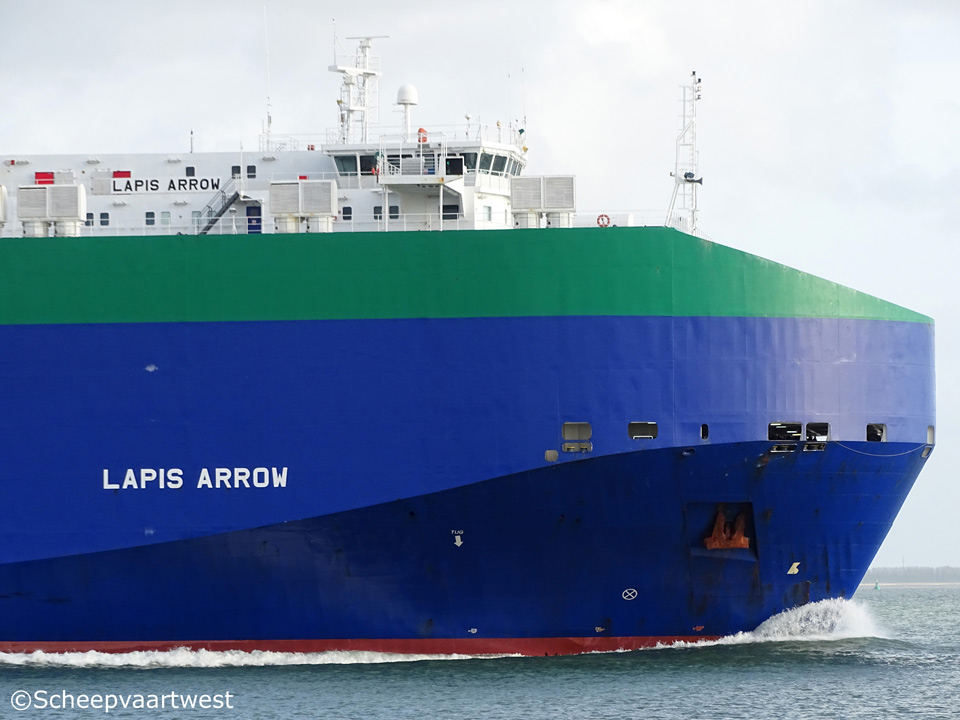

| Westerschelde 05/04/17 | Westerschelde 25/07/19 | Westerschelde 21/01/18 | Westerschelde 21/01/18 | |||
|
Name |
LAPIS ARROW |
|
Type |
Roll-On/Roll-Off car carrier - Vehicle carrier PCTC - Pure car and truck Carrier |
|
IMO-number |
9361809 |
|
Call sign |
C6VH5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
41.000 t |
|
DWT |
Summer: 12.1205 t |
|
NT |
22.105 t |
|
Length |
176,00 m overall 165,00 m between perpendiculars |
|
Breadth |
31,13 m extreme |
|
Draught |
Summer: 8,77 m |
|
Air draft |
45,70 m |
|
Depth |
14,50 m |
|
Speed |
Max.: 20,4 knots |
|
Built |
2006 |
|
Keel laid |
05/11/2005 |
|
Launch date |
15/04/2006 |
|
Date of completion |
04/08/2006 |
|
Builder |
Uljanik Brodogradiliste d.d. Pula Croatia |
|
Yard number |
436 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Uljanik 8S50MC-C Mk. VII - 2 stroke 8 cylinder combustion engine 12.640 kW |
|
Propellers |
1x Wärtsilä fixed pitch propeller |
|
Boilers |
1x TPK NOVA d.o.o. model KIP/DV-1.5/7 exhaust gas smoke tube 1x TPK NOVA d.o.o. model KLN/VM-2,5/7 vertical shell type - Oil fired |
|
Generators |
3x MAN 8L23/30H main diesel generatorsets |
|
Emergency generator |
1x Scania DI9 diesel generatorset Builder: Scania CV AB, Industrial & Marine Engines |
|
Bow thruster |
1x 1.000 kW, forward 1x 800 kW, aft |
|
Number of cars |
4.900 |
|
Ramps |
1x Starboard dim.: 22,00 x 4,20 m 20,0 t 1x Starboard aft dim.: 32,20 x 7,50 m 120,0 t |
|
Tank capacities |
Ballast: 3.900,9 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Crew size |
30 |
|
Manager |
Stamco Ship Management Co. Ltd. 21 Akti Miaouli Piraeus 18535 Greece |
|
Owner |
Ray Car Carriers Ltd. Douglas - Isle of Man United Kingdom |
|
Registered owner |
Lapis Maritime Limited 21 Akti Liaouli Piraeus 18535 Greece |
|
Latest data adjustment |
18 November 2020 |
