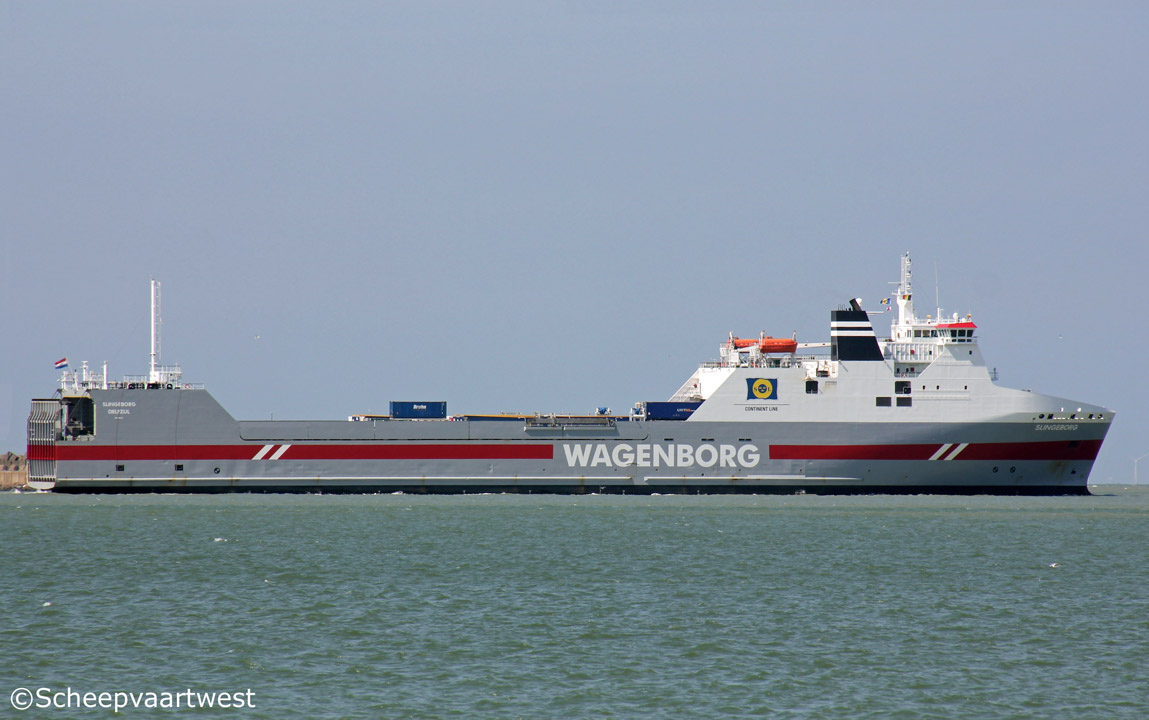

Slingeborg 01

Zeebrugge 16 August 2016

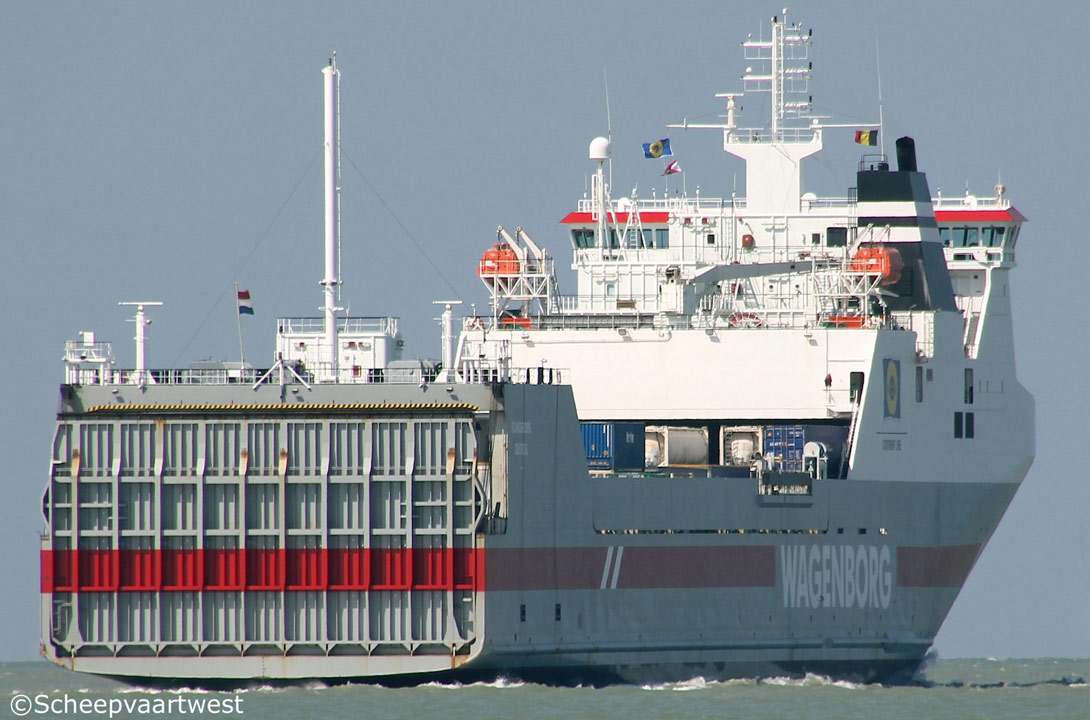

Slingeborg 02
Zeebrugge 16/08/16



Name

SLINGEBORG

Type

Roll-On/Roll-Off carrier

IMO-number

9188245

Call sign

PCHB

Flag

The Netherlands

Port of registry

Delfzijl

GT

21.005 t

DWT

12.500 t

NT

10.601 t

Number of 20ft containers

Deck 1: 20

Deck 2: 54

Deck 3: 32

Total: 106

Length

183,29 m overall

178,40 m between perpendiculars

Breadth

25,20 m

Draught

Summer: 7,50 m

Air draft

41,06 m in ballast

Lanemetres

Deck 1: 490 m

Deck 2: 979 m

Deck 3: 938 m

Total: 2.407 m

Freeboard

1.100 mm

Depth

7,51 m moulded

Speed

18,0 knots

Route

Zeebrugge - Gothenburg

Built

2000

Launch date

05.05.2000

Date of completion

27.10.2000

Builder

Lübecker Flenderwerke AG
Lübeck
Germany

Yard number

678

Hull material

Steel

Watertight compartments

6

Continuous decks

2

Main engine

1x Hanjung/Sulzer 7RTA52U - 2 stroke single acting 7 cylinder 520 1.800 mm diesel engine 10.920 kW / 14.836 hp at 135 rpm

Built: 1999

Builder: HSD Hanjung Co., Ltd., Changwon - South Korea

Propellers

1x Screw propeller controllable pitch - aft at 135 rpm

4 blades

Boilers

1x CHO Aalborg 32,00 m² - 9,0 bar
1x CHR Aalborg 223,00 m² - 9,0 bar

Electric installations

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Shaft generator

1x 1.420 kVA - 1.136 kW

Generators

2x Main diesel generatorsets each 1.420 kVA - 1.136 kW - 1.345 hp

Emergency generator

1x Diesel generatorset 225 kVA - 180 kW - 298 hp

Thruster

1x 800 kW, stern

2x 1.600 kW, bow

Cargo capacity

Bale/grain: 13.059 m³

Number of holds

1

126,40 x 22,77 x 5,22 m

Tank capacities

Fuel oil: 1.578 m³
Marine gas oil: 339 m³

Cargo handling

Sternramp

Hoistable ramp between deck 2 & 3

Number of passengers

12

Number of bunks

12

Manager

Wagenborg Shipping B.V.
Delfzijl
The Netherlands

Owner

Wagenborg Shipping BV

Marktstraat 10
9930 CK Delfzijl
The Netherlands

Registered owner

Slingeborg B.V.
Delfzijl
The Netherlands

Latest data adjustment

03 January 2017
