Westerschelde 02 January 2017 |
|
Name |

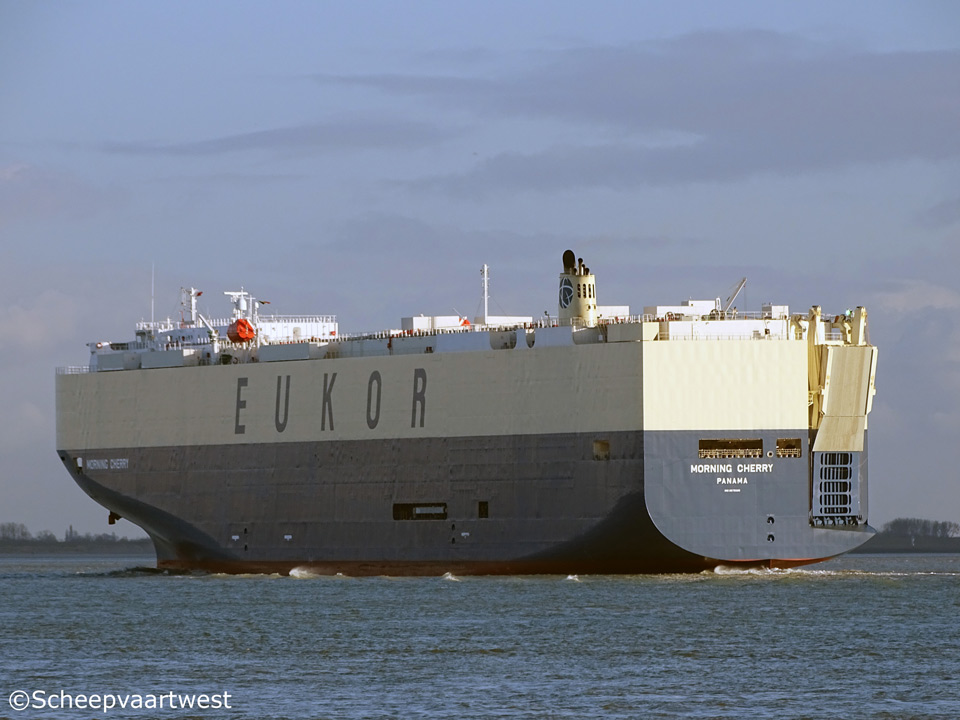

MORNING CHERRY |
|
Type |
Roll-On/Roll-Off carrier - PCTC - Pure car and truck carrier |
|
IMO-number |
9675585 |
|
Call sign |
3FOD5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.525 t registered |
|
DWT |
Summer: 18.556 t |
|
NT |
19.152 t registered |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 14,70 m |
|
Freeboard |
4.715 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 21,6 knots |
|
Built |
2013 |
|
Keel laid |
01.08.2013 |
|
Launch date |
22.02.2014 |
|
Date of completion |
15.05.2014 |
|
Builder |
Imabari Shipbuilding Co., Lts. Marugame Headquarters Japan |
|
Yard number |
1619 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine 12.240 kW at 94,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler- 8,0 bar Evaporation: 3,73 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.140 kW |
|
Bow thruster |
1x 1.250 kW |
|
Number of cars |
6.215 |
|
Tank capacities |
Fuel oil: 2.805 m³ Fresh water: 659 m³ |
|
Manager |
Fleet Ship Management Pte Ltd. |
|
Operator |
Eukor Car Carriers Inc. South Korea |
|
Registered owner |
Paraiso Shipping S.A. Shoei Kisen Kaisha Ltd. |
|
Latest data adjustment |
16 March 2016 |
