Zeebrugge 21 July 2017 |
 |
 |
 |
 |
|||
| Zeebrugge 21/07/17 | Zeebrugge 21/07/17 | Zeebrugge 21/07/17 | Zeebrugge 21/07/17 | |||
|
Name |

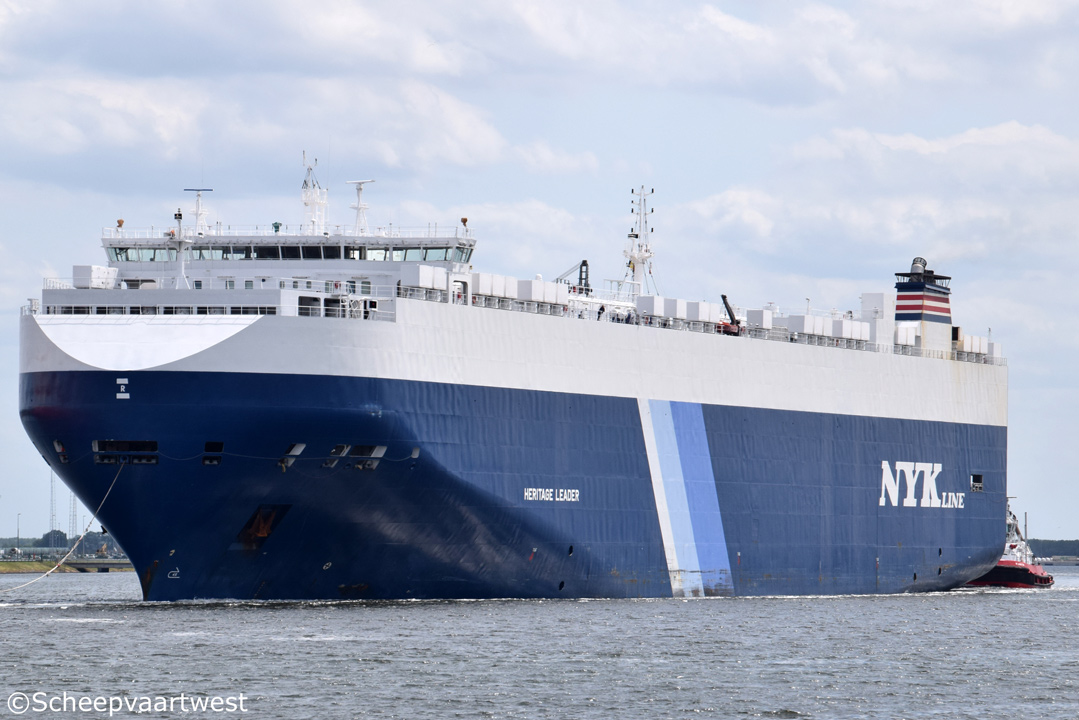

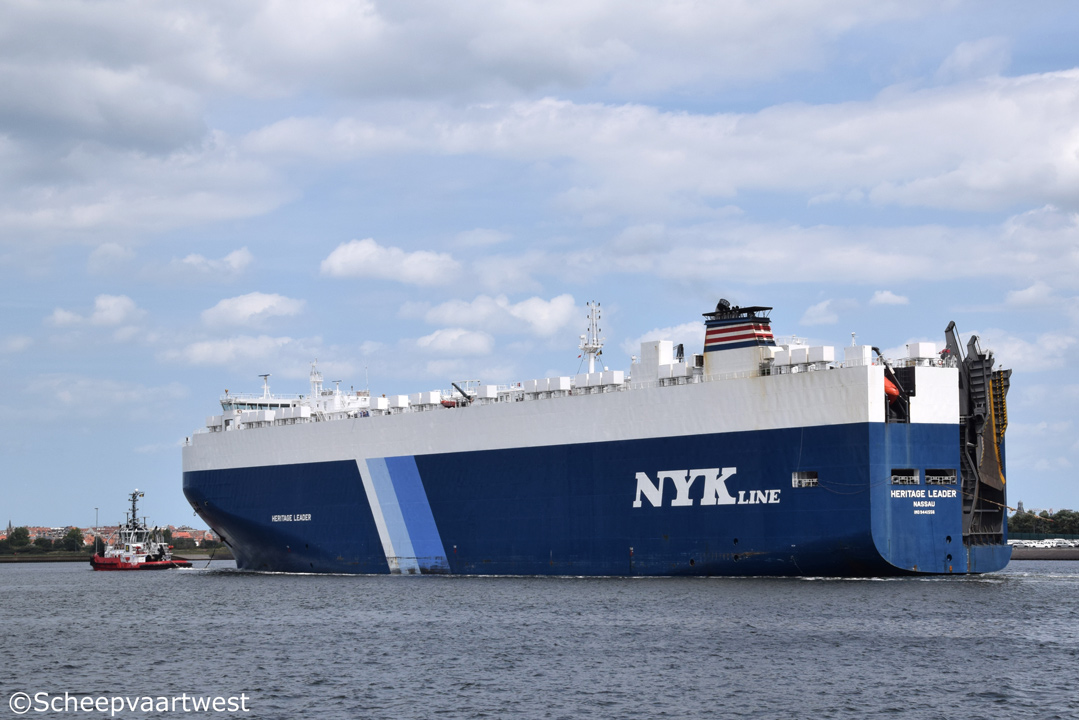

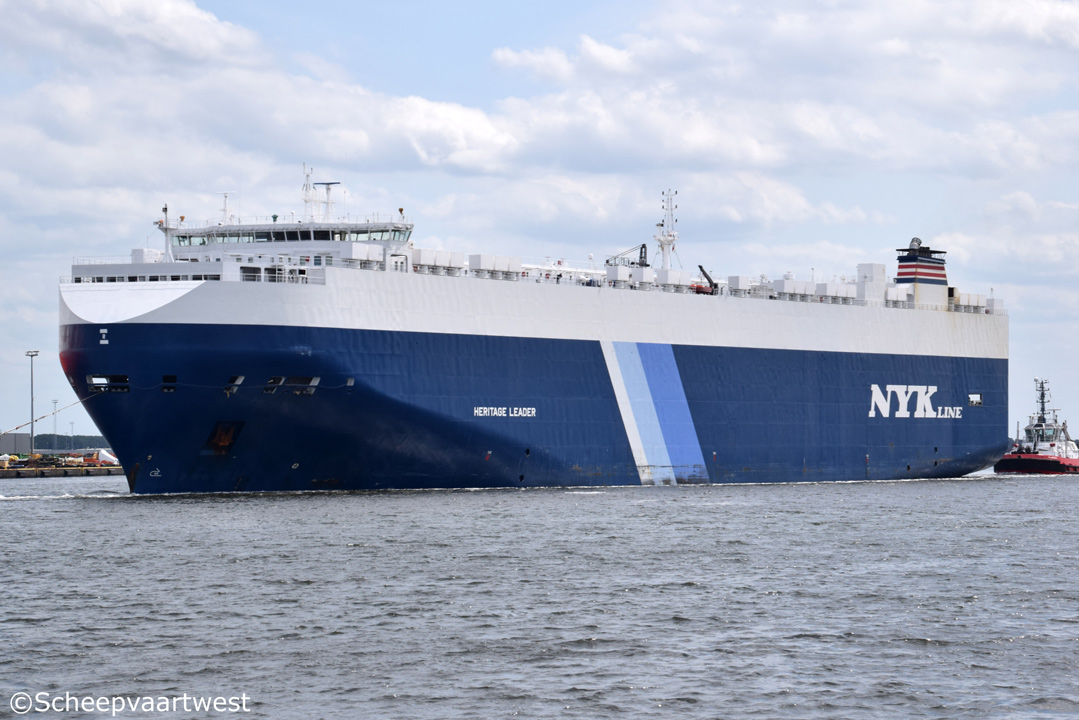

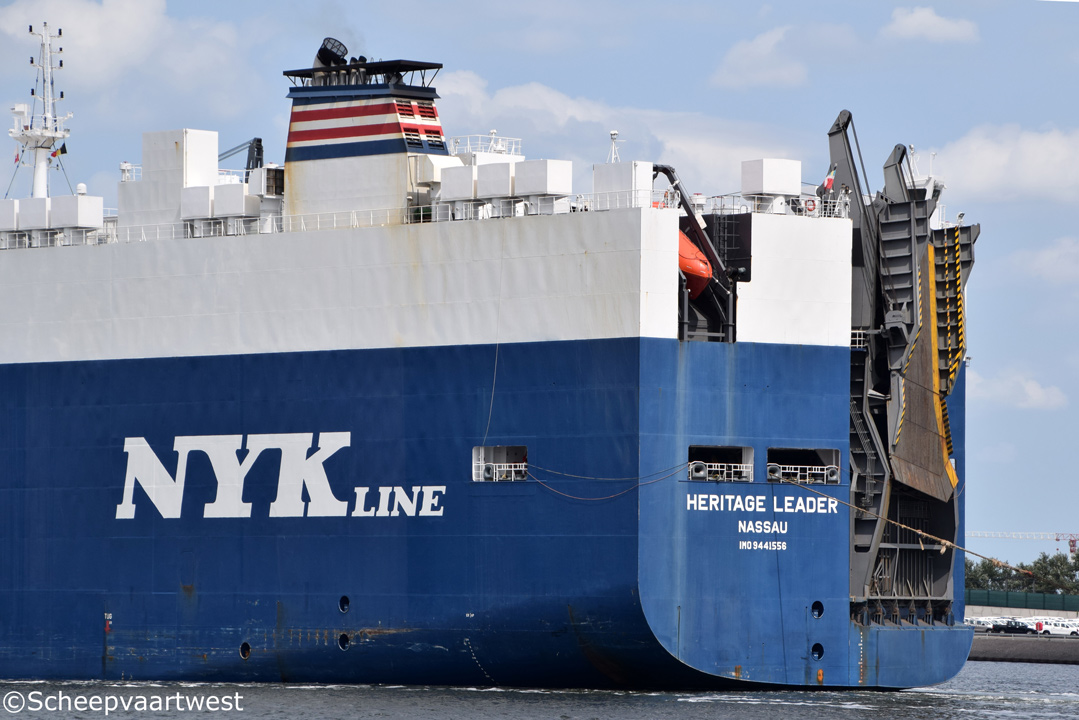

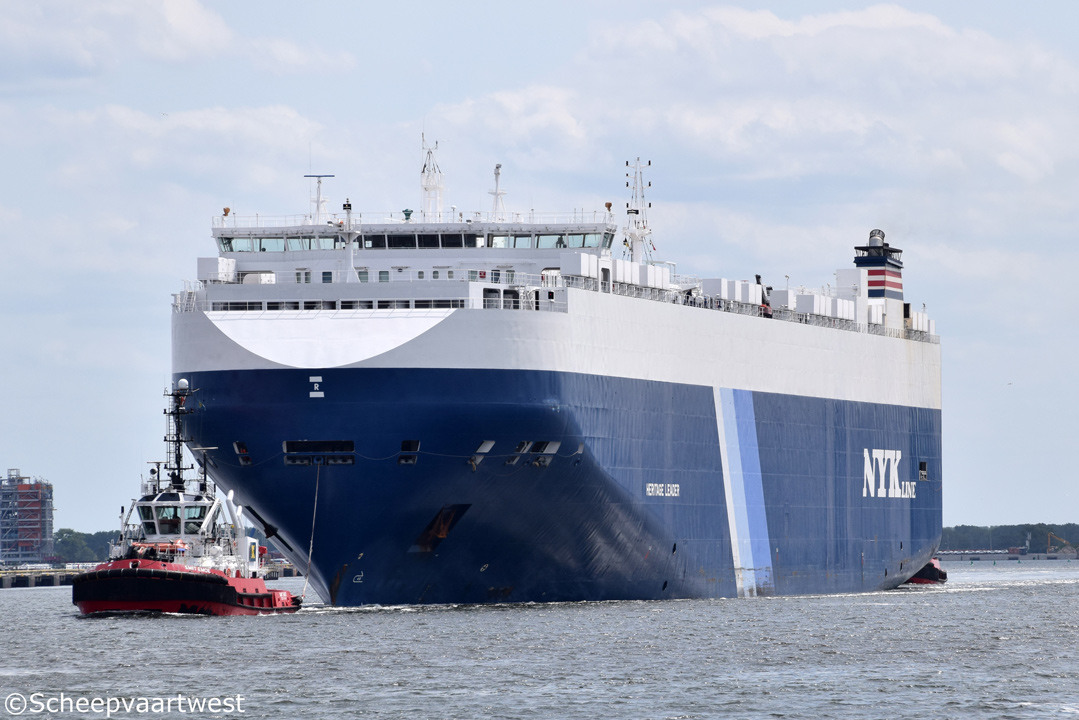

HERITAGE LEADER |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and truck Carrier |
|
IMO-number |
9441556 |
|
Call sign |
C6YP2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.867 |
|
DWT |
20.434 t |
|
NT |
19.980 |
|
Length |
199,95 m overall 191,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,01m |
|
Air draft |
46,20 m |
|
Depth |
35,00 m |
|
Speed |
Service: 20,5 knots |
|
Built |
2011 |
|
Keel laid |
29/06/2010 |
|
Launch date |
18/10/2010 |
|
Date of completion |
15/02/2011 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8038 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x HHI/MAN-B&W 7S60MC-C - 2 stroke 7 cylinder combustion engine 14.280 kW / 21.490 bhp at 105,0 rpm Builder: Hyundai Engine & Machinery Co.Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Mono-block fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Economizer) 1x Auxiliary boiler, oil/gas fired Builder: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
3x Hyundai/Himsen 6H25/33 main diesel generatorsets each 1.740 kW Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Doosan AD126TIS diesel generatorset Builder: Doosan Infracore Co., Ltd. |
|
Bow thruster |
1 |
|
Car decks |
12 |
|
Car capacity |
6.500 |
|
Deck area |
57.600 m² |
|
Ramps |
1x Ramp starboard 1x Ramp starboard aft - 150 t |
|
Tank capacities |
Ballast: 8.906,1 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 81 mm |
|
Crew |
22 |
|
Commercial manager |
Ray Car Carriers Ltd. 33-37, Athol Street, Douglas Isle of Man IM1 1LB |
|
ISM manager |
Stamco Ship Management Co. Ltd. 21 Akti Miaouli Piraeus 18535 Greece |
|
Operator |
NYK-line - Nippon Yusen Kaisha |
|
Registered owner |
Heritage Maritime Ltd. c/o Ray Car Carriers Ltd. 33-37, Athol Street, Douglas Isle of Man IM1 1LB |
|
Latest data adjustment |
30 May 2025 |
