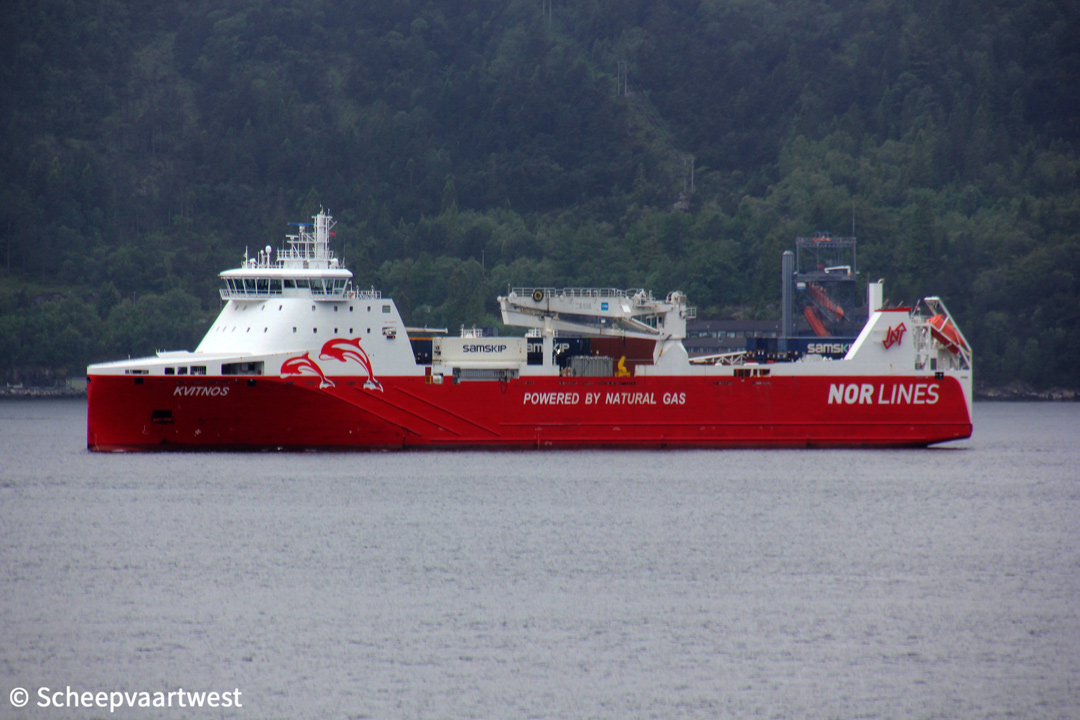

Kvitnos 05

Bergen, Norway 09 June 2019

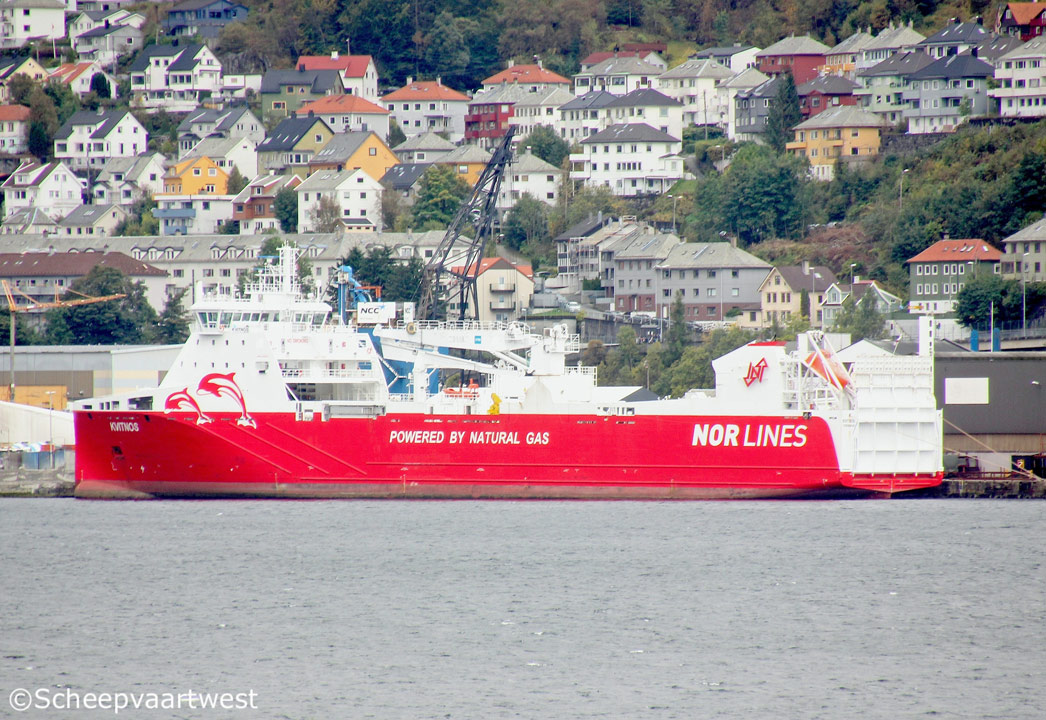

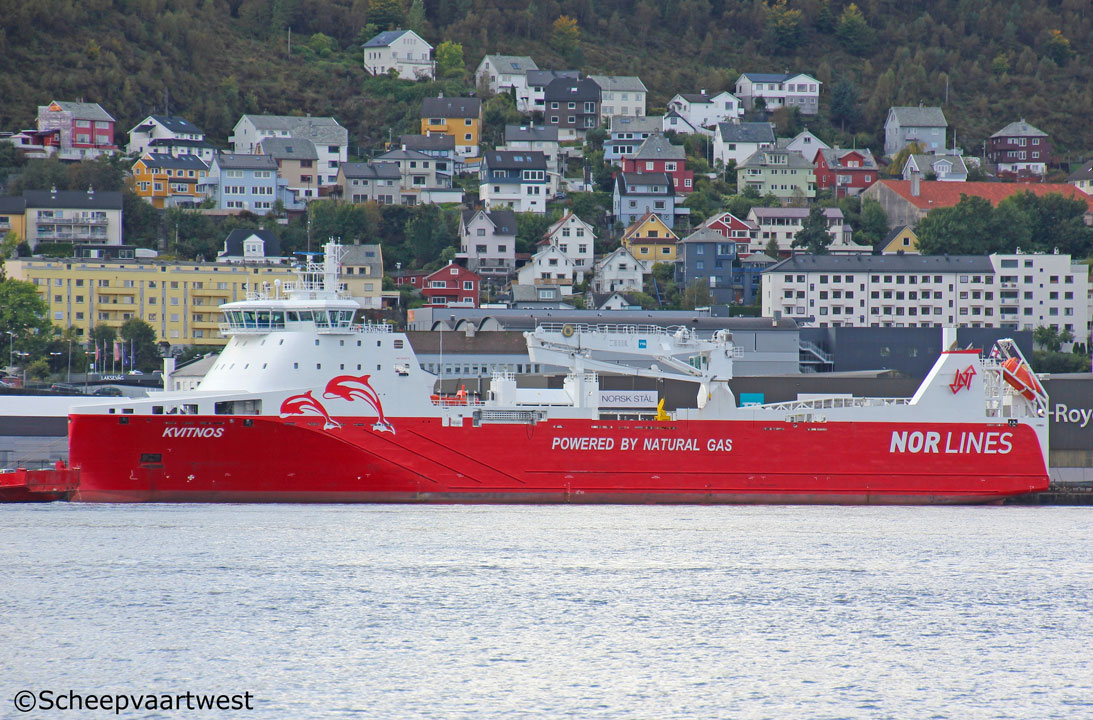

Kvitnos 02   Kvitnos 01   Kvitnos 03
Bergen, Norway 20/09/17 Bergen, Norway 20/09/17 Bergen, Norway 01/10/17



Name

KVITNOS

Type

Roll-On/Roll-Off carrier - Cargo

IMO-number

9642576

Call sign

OZ2148

Flag

Faroe Islands

Port of registry

Tórshavn

GT

9.132 t

DWT

5.143 t

NT

2.740 t

Number of 20ft containers

120

Reefer plug

25

Length

119,95 m overall

117,60 m between perpendiculars

Breadth

22,39 m extreme

20,79 m moulded

Draught

5,50 m

Line metres

990 m

Depth

7,90 m

Speed

Service: 15,5 knots

Max.: 18,9 knots

Built

2015

Keel laid

18.04.2013

Launch date

12.09.2014

Date of completion

23.06.2015

Builder

Tsuji Heavy Industries (Jiangsu) Co., Ltd.
China

Yard number

NB0033

Hull material

Steel

Number of decks

4

Main engine

1x Bergens-Rolls-Royce Marine B35:40L9P - 4 stroke 9 cylinder combustion engine 3.940 kW

Power by natural gas

Propellers

1x Controllable pitch propeller

Generators

2x Caterpillar C32 ACERT main diesel generatorset

Emergency generator

1x Caterpillar C6.6 diesel generatorset

Manufacturer: Caterpillar Marine Power UK Ltd.

Deck area

Weather deck: 1.560 m²

Main deck (RoRo): 1.640 m² - Height: 4,55 m

Tween deck: 828 m² - Height: 2,50 m

Lower deck: 800 m² - Height: 2,50 m

Side door

7,30 m beam working area

Pallet elevator

2 x 5 t each

RoRo ramp

Trailer elevator

Tank capacities

Ballast: 2.639,3 m³

Anchor equipment

Length; 550,00 m

Diameter: 50 mm

Cargo gear

1x Crane - SWL 80,0 t

Crew

14

Manager

Fjord Shipping AS
Gate 1, nr. 80
6700 Måløy
Norway

Operator

Nor Lines Rederi AS
Bergen
Norway

Registered owner

Sp/f Skipafelagid Nor Lines
Mykinesgøta 5
Torshavn
Faroe Islands

Remarks

Tween and lower decks are reefer compartments with separate temperature zones

Latest data adjustment

02 November 2017
