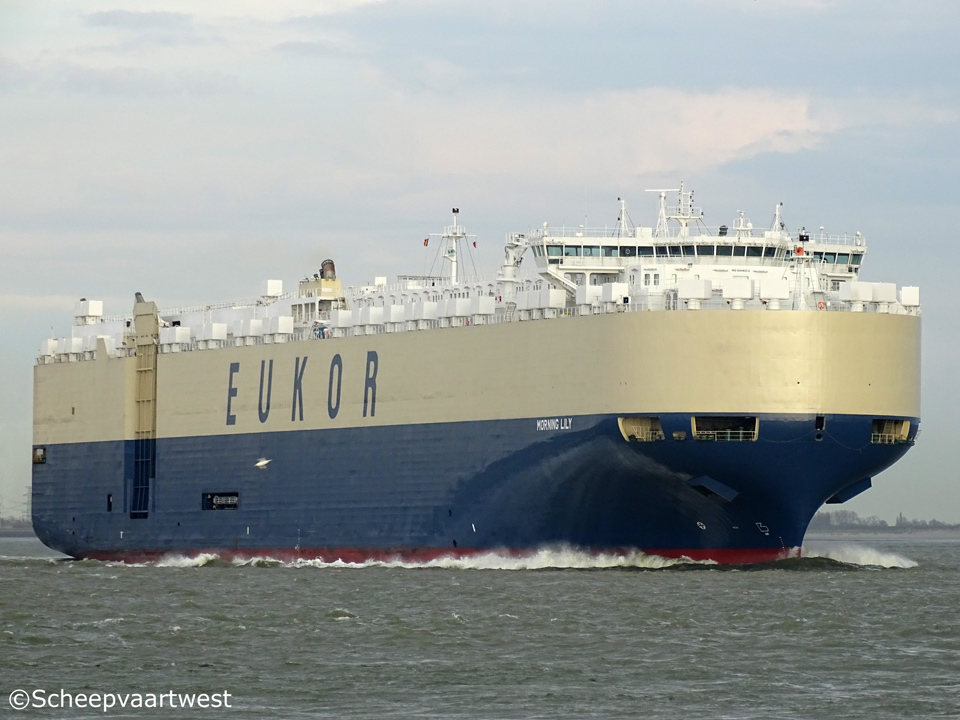

Morning Lily 01

Westerschelde 05 April 2016

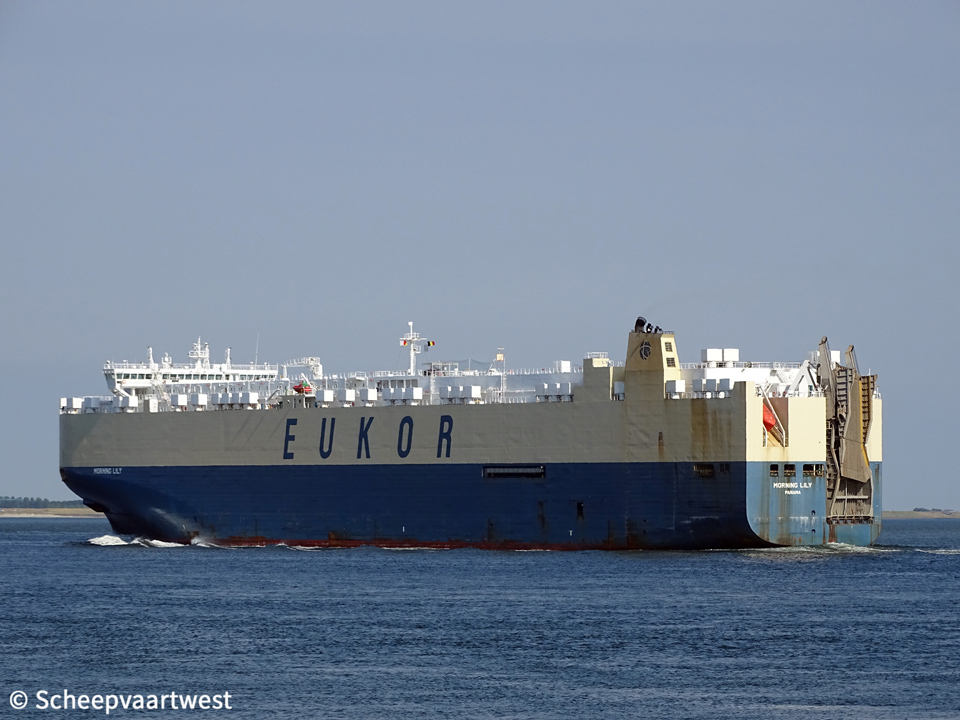

Morning Lily 02
Westerschelde 04/07/18



Name

MORNING LILY

Type

Roll-On/Roll-Off vehicle carrier

PCC - Pure car carrier

IMO-number

9446013

Call sign

3FDI5

Flag

Republic of Panama

Port of registry

Panama City

GT

70.687 t

DWT

Summer: 21.127 t

NT

25.396 t

Length

232,38 m overall

222,40 m between perpendiculars

Breadth

32,30 m extreme

32,26 m moulded

Draft

10,01 m

Reg. dimensions L x B x D

225,52 x 32,26 x 20,11 m

Rule dimensions L x B x D

220,60 x 32,26 x 20,11 m

Freeboard

Summer: 3.020 mm

Depth

20,11 m

Speed

19,6 knots

Built

2011

Keel laid

29.06.2010

Launch date

12.11.2010

Date of completion

26.01.2011

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

2056

Hull material

Steel

Watertight bulkheads

3

Main engine

1x MAN-B&W-HHI 7S60MC-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine 14.280 kW at 105,0 rpm

Built: 08.2010

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1x Mono-block fixed pitch propeller

Boilers

1x Auxiliary water tube boiler - 8,8 kg/cm²

Heating surface: 24,0 m²

1x Exhaust gas economizer EGE - 11,7 kg/cm²

Heating surface: 249 m²

Built: 06.2010

Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

3x Hyundai Himsen 6H25/33 main diesel generatorsets 1.662 kVA / 450 Volt

Emergency generator

1x Sisu 634 DSBIG diesel generatorset

Bow thruster

2.000 kW

Number of cars

8.011

Tank capacities

Fuel oil: 5.045,2 m³

Fresh water: 300,5 m³

Water ballast: 12.501,6 m³

Anchor equipment

Length: 687,50 m

Diameter: 84 mm

Manager

Eukor Car Carriers Inc.

Technical manager

Wilhelmsen Ship Management Ltd.
Pusan
South Korea

Operator

Eukor Car Carriers Inc.
Seoul
South Korea

Registered owner

2056 International S.A.

Latest data adjustment

27 December 2017
