Name
|

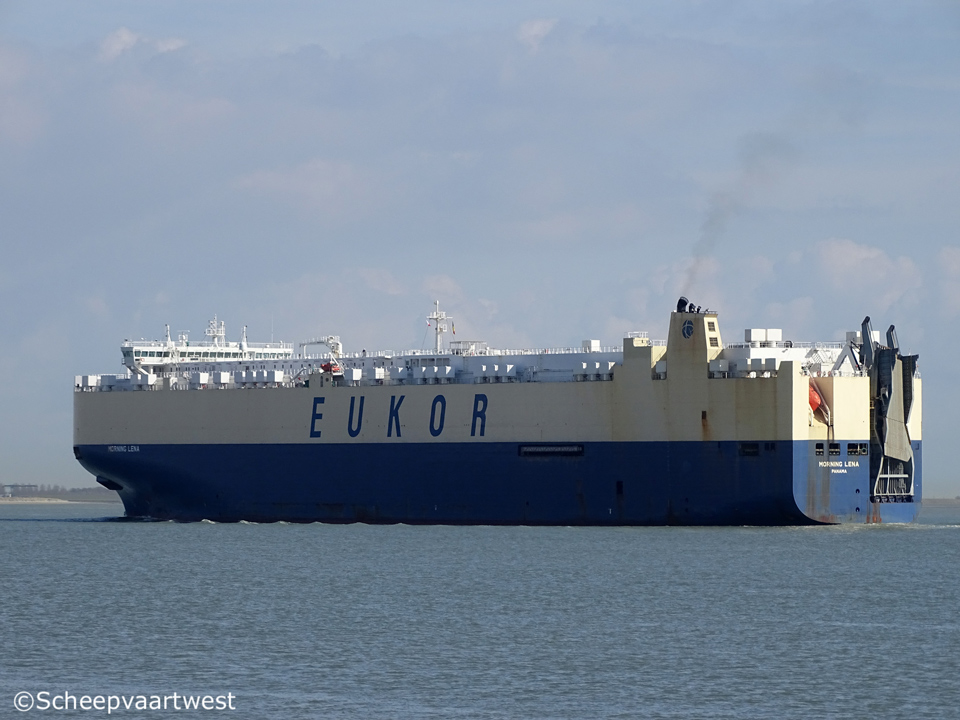

MORNING LENA
|
|
Type
|
Roll-On/Roll-Off carrier - Vehicle carrier
|
|
IMO-number
|
9446001
|
|
Call sign
|
3FBV
|
|
Flag
|
Republic of Panama
|
|
Port of registry
|
Panama City
|
|
GT
|
70.687 t
|
|
DWT
|
Summer: 21.295 t
|
|
NT
|
25.396 t
|
|
Length
|
232,38 m overall
222,40 m between perpendiculars
|
|
Breadth
|
32,29 m extreme
|
|
Draught
|
10,01 m
|
|
Reg. dimensions L x B x D
|
225,52 x 32,26 x 20,11 m
|
|
Rule dimensions L x B x D
|
220,60 x 32,26 x 20,11 m
|
|
Freeboard
|
3.020 mm
|
|
Depth
|
20,11 m
|
|
Speed
|
Max: 21,5 knots
|
|
Built
|
2010
|
|
Keel laid
|
08/06/2010
|
|
Launch date
|
27/08/2010
|
|
Date of completion
|
18/11/2010
|
|
Builder
|
Hyundai Heavy Industries Co., Ltd
Ulsan
South Korea
|
|
Yard number
|
2055
|
|
Hull material
|
Steel
|
|
Watertight bulkheads
|
3
|
|
Main engine
|
1x MAN-B&W-HHI 7S60MC-C8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14.280 kW at 105,0 rpm
Built: 05/2010
Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division; Ulsan - South Korea
|
|
Propellers
|
1x Fixed pitch propeller
|
|
Boilers
|
1x Auxiliary Boiler WTB - 8,8 bar
Heating surface: 24,0 m²
2x Economizer EGE - 11,7 bar
Heating surface: 249,0 m²
Built: 05/2010
Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea
|
|
Generators
|
3x Hyundai Himsen 6H25/33 main diesel generatorsets each 1.662 kVA / 450 Volt
|
|
Emergency generator
|
1X Sisu 634 DSBIG diesel generatorset
|
|
Bow thruster
|
1x 2.000 kW
|
|
Number of cars
|
8.100
|
|
Tank capacities
|
Fuel oil: 5.045,2 m³
Fresh water: 300,5 m³
Water ballast: 12.501,6 m³
|
|
Anchor equipment
|
Length: 687,50 m
Diameter: 84 mm
|
|
Manager
|
Eukor Car Carriers Inc.
Seoul
South Korea
|
|
Technical manager
|
Wilhelmsen Ship Management (Korea) Ltd.
South Korea
|
|
Registered owner
|
2055 International S.A.
|
|
Latest data adjustment
|
21 June 2018
|
