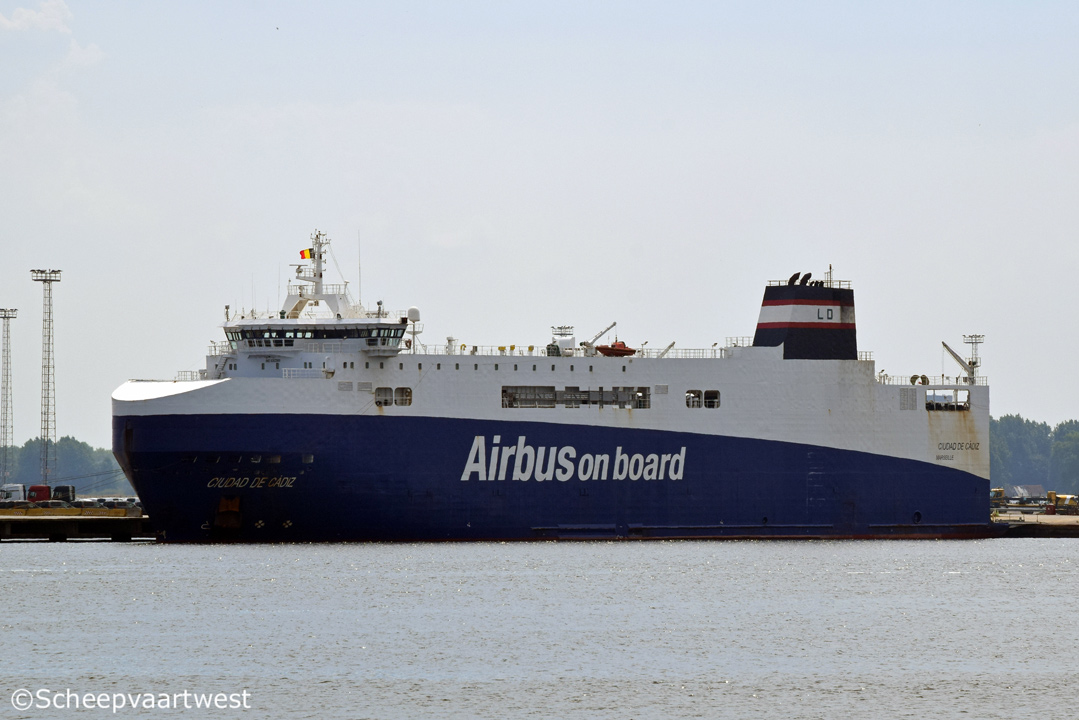

Zeebrugge 22 July 2018 |
|
Name |
CIUDAD DE CADIZ |
|
Type |
Roll-On/Roll-Off carrier - Carrying constructional elements for Airbus air planes |
|
IMO-number |
9383560 |
|
Call sign |
FNQE |
|
Flag |
France |
|
Port of registry |
Marseille |
|
Previous flags |
2009 - 2012 Kerguelen Islands (TAAF) |
|
GT |
15.643 |
|
DWT |
3.533 t |
|
NT |
4.692 |
|
Length |
126,51 m overall 117,00 m between perpendiculars |
|
Breadth |
20,60 m |
|
Draught |
Summer: 5,50 m |
|
Lane metres |
3.650 m |
|
Freeboard |
1.163 mm |
|
Depth |
7,30 m |
|
Speed |
Service: 15,0 knots Max: 17,5 knots |
|
Built |
2009 |
|
Date of completion |
21/04/2009 |
|
Builder |
Singapore Technologies Engineering Marine Ltd. Republic of Singapore |
|
Yard number |
BO 616 |
|
Hull material |
Steel |
|
Main engine |
2x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x400 mm combustion engines total 8.000 kW / 10.870 hp at 750 rpm Built: 08/2007 Builder: MAN B&W Diesel SE; Augsburg - Germany |
|
Propellers |
2x Screw propeller controllable pitch |
|
Boilers |
1x CHR 4140EGH550V40-788 - 58,30 m² / 10,0 bar 1x CHO 4140TOH1000H40-787 - 42,60 m² / 10,0 bar 1x CHR 4140EGH550V40-845 58 - 30,00 m² / 10,0 bar |
|
Shaft generator |
2x 1.250 kVA - 1.000 kW |
|
Generators |
2x Main diesel generatorsets each 1.425 kVA - 1.140 kW - 1.630 hp |
|
Emergency generator |
1x Diesel generatorset269 kVA - 215 kW - 360 hp |
|
Bow thruster |
2x 750 kW each |
|
Number of holds |
3 |
|
Tank capacities |
Fuel: 904,9 m³ |
|
Crew |
21 |
|
ISM manager |
Louis Dreyfus Armateurs SAS 21, quai Gallieni 92158, Suresnes France |
|
Commercial manager |
LD Seaplane SAS 21, quai Gallieni 92158, Suresnes France |
|
Operator |
Fret-CETAM (LDA) |
|
Registered owner |
Airbus SAS 2, Rond-Point Emile Dewoitine 31700, Blagnac France |
|
Latest data adjustment |
21 March 2025 |
