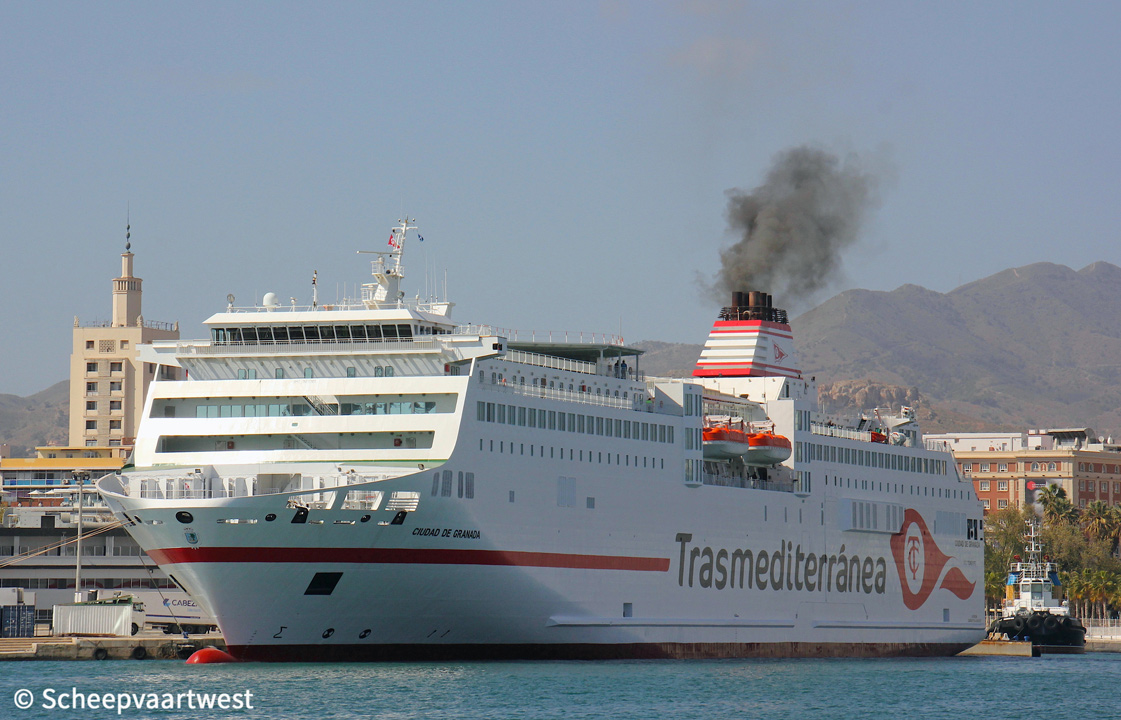

Malaga, Spain 19 March 2019 |
 |

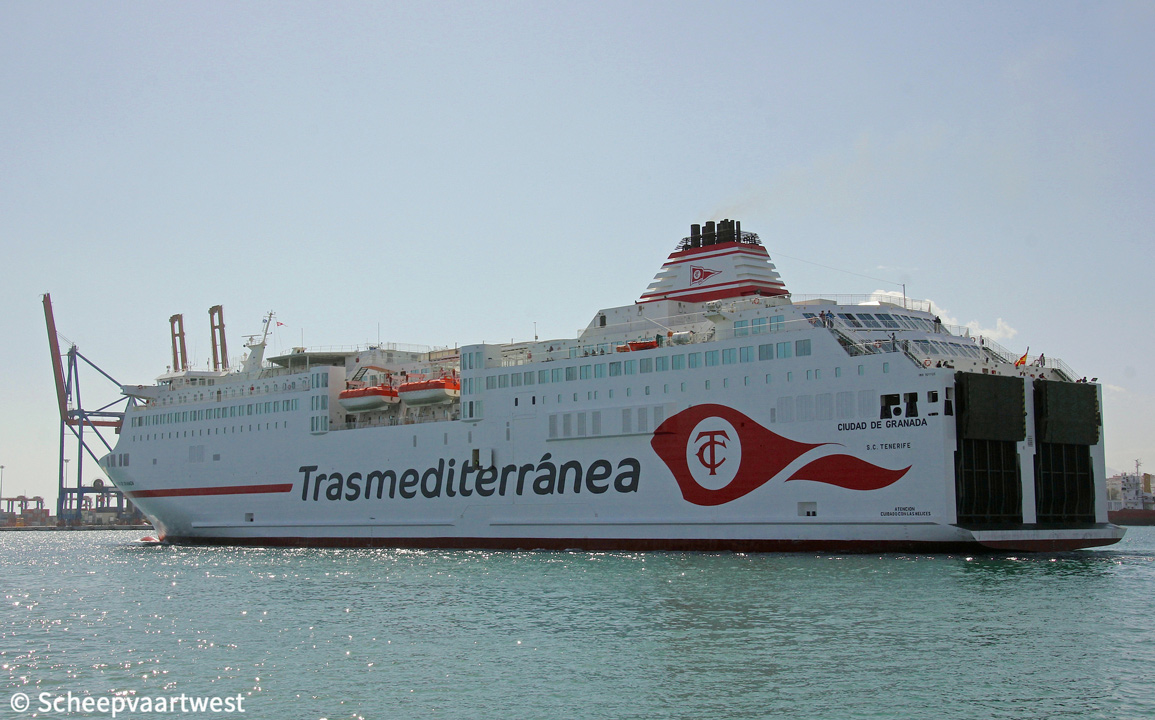

| Malaga, Spain 19/03/19 |
|
Name |
CIUDAD DE GRANADA |
|
Previous names |
2001 - 2019 Sorolla |
|
Type |
Roll-On/Roll-Off cargo ship- Ferry |
|
IMO-number |
9217125 |
|
Call sign |
EBRI |
|
Flag |
Canary Islands - Spain |
|
Port of registry |
Santa Cruz De Tenerife |
|
GT |
26.916 |
|
DWT |
Summer: 5.000 t |
|
NT |
14.608 |
|
Light displacement |
11.568 t |
|
Displacement at full load |
16.555 t |
|
Number of 20ft containers |
1.500 |
|
Length |
172,00 m overall 157,00 m between perpendiculars |
|
Breadth |
26,20 m moulded |
|
Draught |
Max: 6,21 m |
|
Lane metres |
1.809 |
|
Freeboard |
3.012 mm |
|
Depth |
14,84 m to upper deck 9,20 m to main deck |
|
Speed |
23,0 knots |
|
Built |
2001 |
|
Keel laid |
08/01/2000 |
|
Launch date |
25/10/2000 |
|
Date of completion |
09/05/2001 |
|
Builder |
Hijos De J. Barreras S.A. Vigo (Pontevedra) Spain |
|
Yard number |
C-1580 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
10 |
|
Main engine |
4x Wärtsilä 8L46A - 4 stroke single action 8 cylinder 460×580 mm combustion engines each 7.240 kW at 500 rpm Total 28.960 kW / 39.348 hp Built: 2000 Builder: Wärtsilä Iberica S.A., Bermeo (Vizcaya) - Spain Note: Coupled in pairs, by a flexible coupling, a gear shaft and its corresponding queue |
|
Propellers |
2x Lips controllable pitch propeller - aft at 183 rpm Diameter 4.600 mm - 4 blades |
|
Boilers |
2x CHO Mission type OS 269,00 m² - 9,0 bar 2x CHR AQ-7 type 271,00 m² - 9,0 bar Builder:Aalborg Industries |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
2x Leroy Somer LSAM53M85 C6 / 6 AREP generator each 1.962 kVA / 1.570 kW - 380 Volt / 50 Hz |
|
Generators |
3x Wärtsilä 20 - 9 cylinder combustion engines each 1.620 kW at 1.000 rpm with Leroy Somer LSAM53M85 C6 / 6 AREP generators each 1.962 kVA - 380 V / 50 Hz 1x MAN Demp D2842LE301 - 12 cylinder diesel generatorset 514 kW at 1.500 rpm |
|
Emergency generator |
1x MAN D2866 LXE diesel generatorset 313 kVA - 250 kW - 367 hp at 1.500 rpm |
|
Bow thruster |
2x Rolls-Royce Marine 250 TV type controllable pitch thrusters at the bow 1.000 kW at 320 rpm Diameter 1.880 mm |
|
Access to the garage |
Two doors / ramps aft Length: 18,00 m (16,00 m and 2,00 m ramp nail) Width: 8,50 m |
|
Tank capacities |
Fuel oil: 804 m³ Diesel oil: 167 m³ Lubricating oil: 110 m³ Fresh water: 421 m³ Boiler feed water: 25 m³ Ballast water: 1,930 m³ Anti-heeling tanks: 673 m³ |
|
Number of passengers |
1.100 |
|
Number of beds |
744 |
|
Vehicle capacity |
80 trucks and 336 cars |
|
Crew |
202 |
|
ISM & commercial manager |
Trasmed GLE SL Moll de Ponent s/n 46024, Valencia Spain |
|
Previous names & operators |
2001 - 2005 Soralla - Trasmediterranea 2005 - 2015 Soralla - Acciona Trasmediterranea 2019 - 2019 Soralla - Trasmediterranea 2019 - 2021 Ciudad de Granada - Trasmediterranea |
|
Registered owner |
Trasmed GLE SL Moll de Ponent s/n 46024, Valencia Spain |
|
Previous owner |
2001 - 2021 Cia Trasmediterranea SA |
|
Latest data adjustment |
21 March 2025 |
