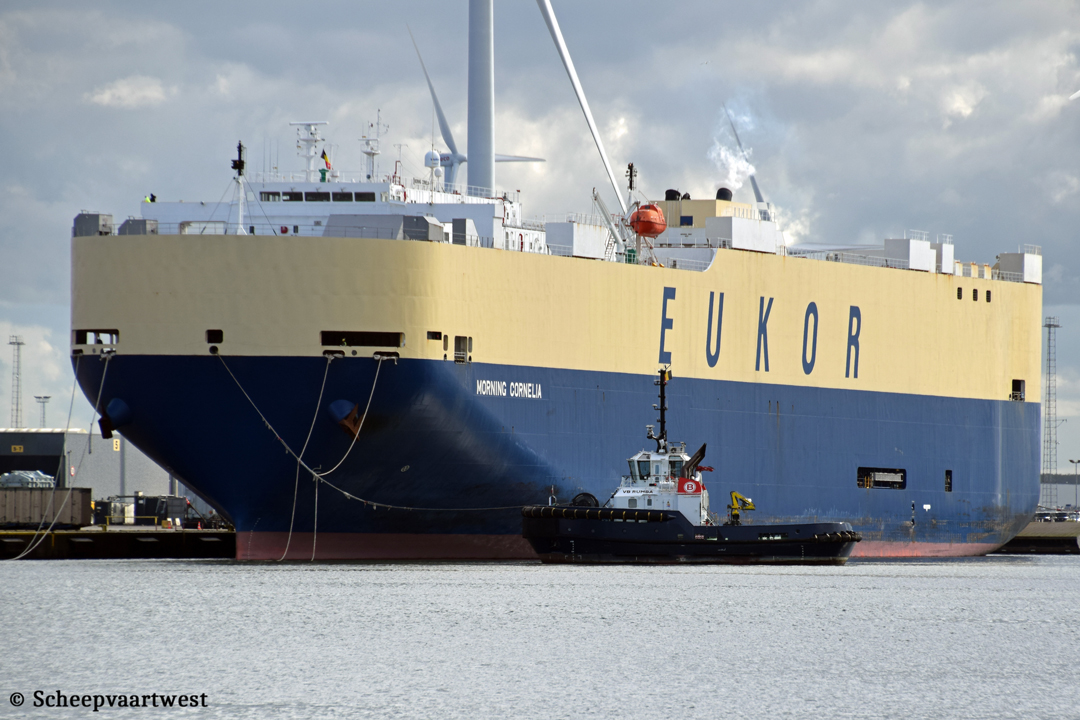

Morning Cornelia - IMO 9519145

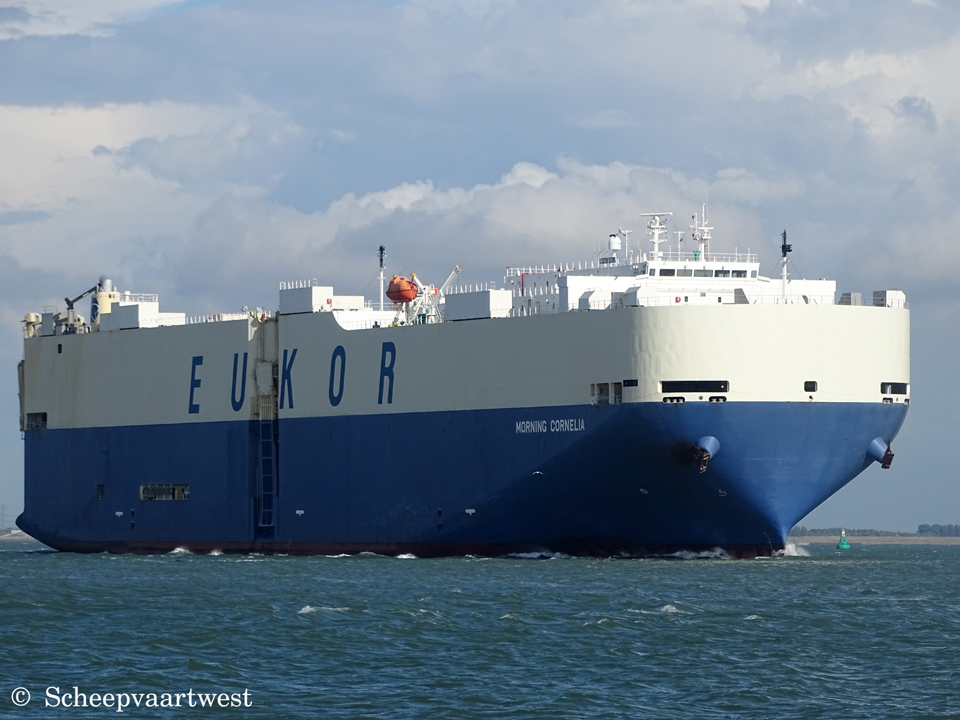

Westerschelde 13 August 2017

Name

MORNING CORNELIA

Type

Roll-On/Roll-Off carrier - Vehicle carrier

IMO-number

9519145

Call sign

3FFU2

Flag

Republic of Panama

Port of registry

Panama City

GT

60.876 t registered

DWT

Summer: 22.746 t

NT

18.263 t registered

Light displacement

15.863 t

Length

199,94 m overall

Breadth

32,26 m moulded

Draught

Max: 10,02 m

Moulded L x B x D

190,00 x 32,26 x 15,00 m

Registered L x B x D

190,11 x 32,26 x 24,32 m

Freeboard

Summer: 5.025 mm

Depth

15,00 m moulded

Speed

Max: 21,9 knots

Service: 19,5 knots

Built

2010

Keel laid

02/06/2008

Launch date

28/11/2019

Date of completion

09/02/2010

Builder

Imabari Shipbuilding Co., Ltd. Marugame Headquarters

Marugame

Japan

Yard number

1500

Hull material

Steel

Main engine

1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW at 104,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 950 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 4,35 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators total 3.870 kVA

Bow thruster

1x 1.500 kW

Number of cars

6.502

Number of trucks

162

Number of ramps

2

Tank capacities

Fuel oil: 3.668 m³

Fresh water: 368 m³

Commercial manager

Shoei Kisen KK

4-52, Kora-cho 1-chome, Imabari-shi

Ehime-ken, 799-2111

Japan

ISM manager

Fleet Ship Management Pte Ltd.

31-01, MTower, 460, Alexandra Road

Singapore 119963

Republic of Singapore

Operator

EUKOR Car Carriers Inc.

24th Floor Gangnam Finance Center, 152 Teheranro

Gangnam-gu, Seoul, 06236

South Korea

Registered owner

Pedregal Maritime SA

Care of Shoei Kisen KK

4-52, Kora-cho 1-chome, Imabari-shi

Ehime-ken, 799-2111

Japan

Latest data adjustment

22 October 2024
