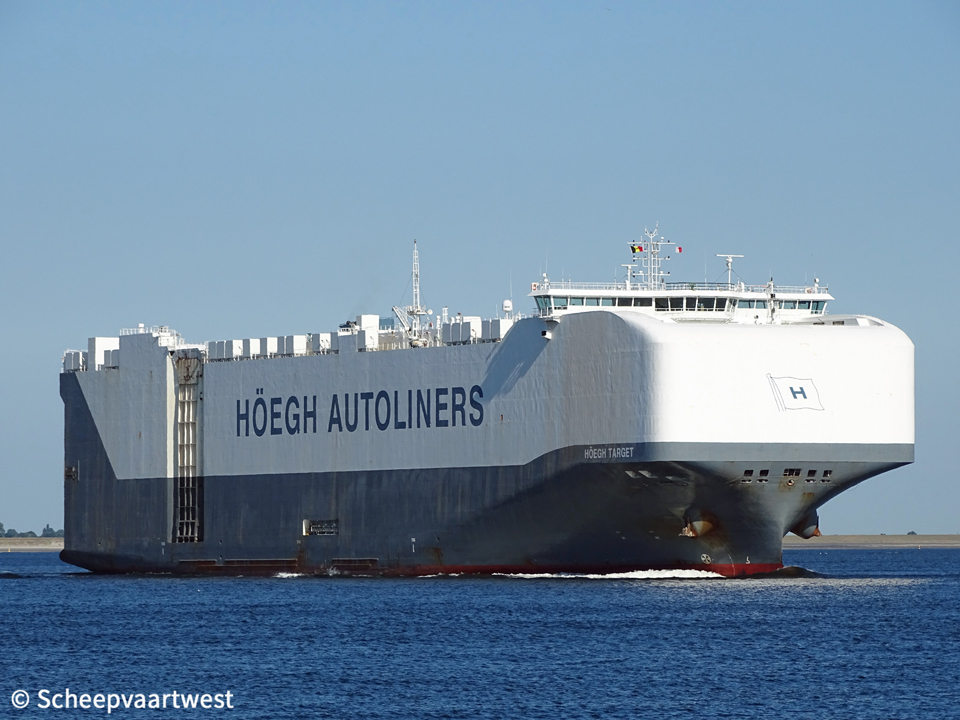

Höegh Target 01

Westerschelde 08 July 2018

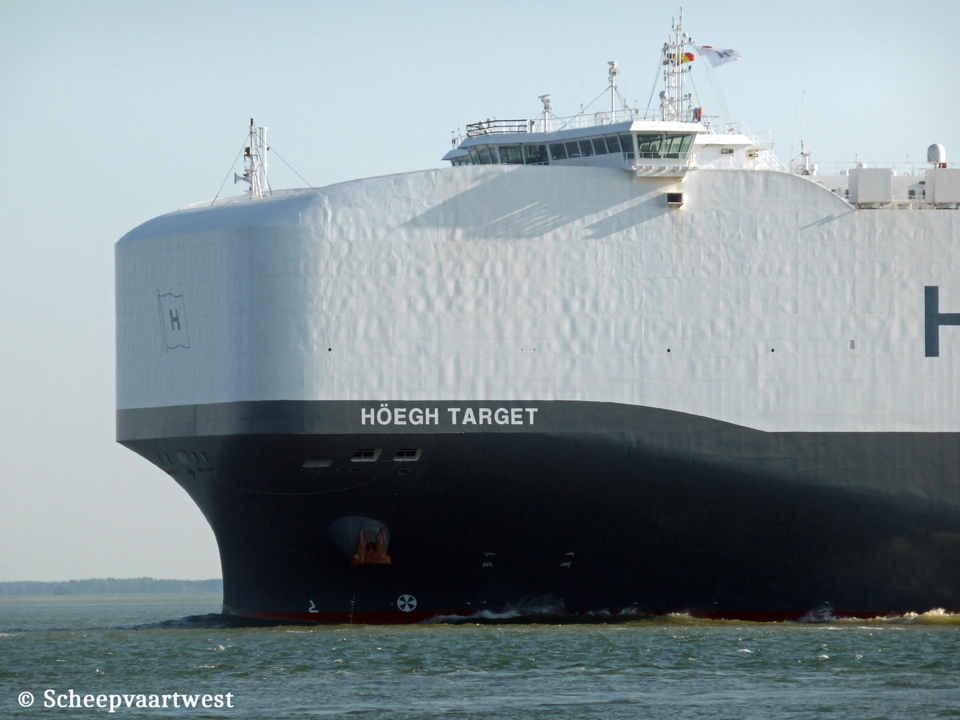

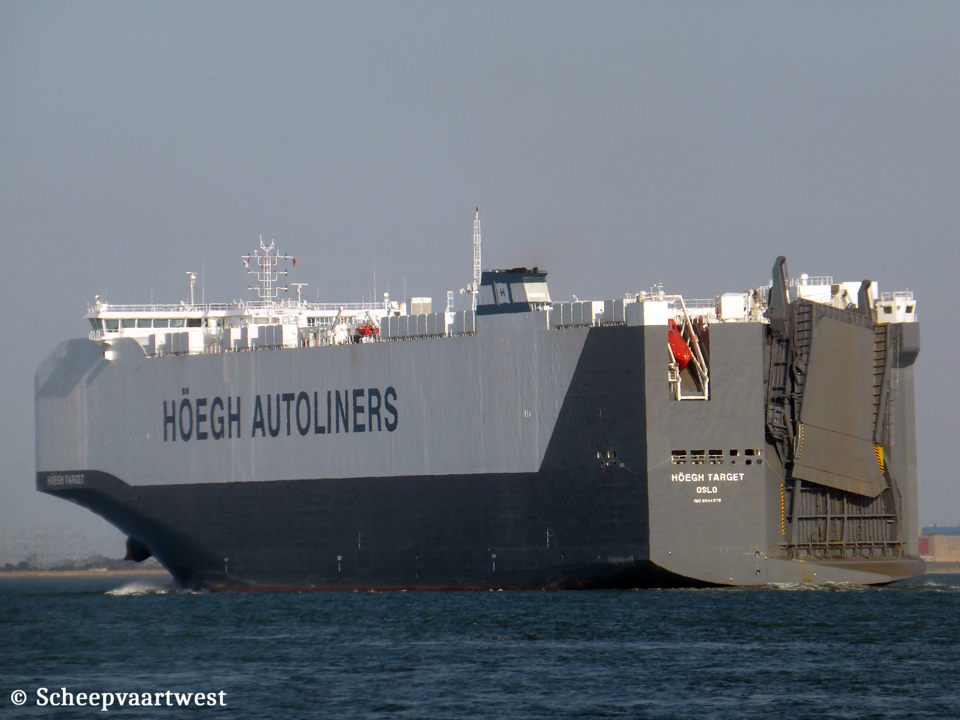

Höegh Target IMO 9684976 03   Höegh Target IMO 9684976 02
Westerschelde 22/08/15   Westerschelde 22/08/15


Name

HÖEGH TARGET

Type

Roll-On/Roll-Off carrier - Post Panamax vessel

Pure Car and Truck Carrier - PCTC

IMO-number

9684976

Call sign

LAUJ7

Flag

Norway

Port of registry

Oslo

GT

76.420 t

DWT

Summer: 20.068 t

NT

23.242 t

Length

199,90 m overall

193,06 m between perpendiculars

Breadth

40,80 m extreme

36,50 m moulded

Draught

Max: 10,32 m

Air draft

46,50 m

Depth

14,40 m

Speed

19,0 knots

Built

2015

Keel laid

30/04/2014

Launch date

20/12/2014

Deliver date

02/07/2015

Builder

Xiamen Shipbuilding Industry Co., Ltd.

Xiamen

China

Yard number

462A

Hull material

Steel

Hull type

Double bottom

Single side

Main engine

1x MAN-B&W 6S60ME-C - 2 stroke 6 cylinder combustion engine 11.735 kW / 15.730 hp

Propellers

1x Fixed mono-block propeller

Boilers

1x Auxiliary boiler, oil/gas fired (Oil fired)

1x Auxiliary boiler, oil/gas fired (Exhaust)

Manufacturer: Alfa Laval Aalborg

Generators

1x MAN 5L21/31 main diesel generatorset 950 kW

2x MAN 9L21/31 main diesel generatorsets each 1.850 kW

Manufacturer: CSSC marine power Co., Ltd.

Emergency generator

1x Cummins QSM11 diesel generatorset

Bow thruster

1.800 kW

Number of car decks

14

Number of hoistable decks

5

Door openings

Stern:

Width:12,00 m

Height: 6,50 m

Side:

Width: 6,50 m

Height: 6,50 m

Ramps

Stern:

Length: 45,00 m - 375,0 t

Side: 25,00m - 22,0 t

Car space

71.400 m²

Number of cars

8.500

Tank capacities

Ballast: 6.907 m³

Anchor equipment

Length: 715,00 m

Diameter: 87 mm

Commercial manager

Höegh Autoliners Management AS

Drammensveien 134

0277 Oslo

Norway

ISM manager

Hoegh Technical Management Inc.

Registered owner

Höegh Autoliners Shipping AS

Drammensveien 134

0277 Oslo

Norway

Latest data adjustment

19 May 2024
