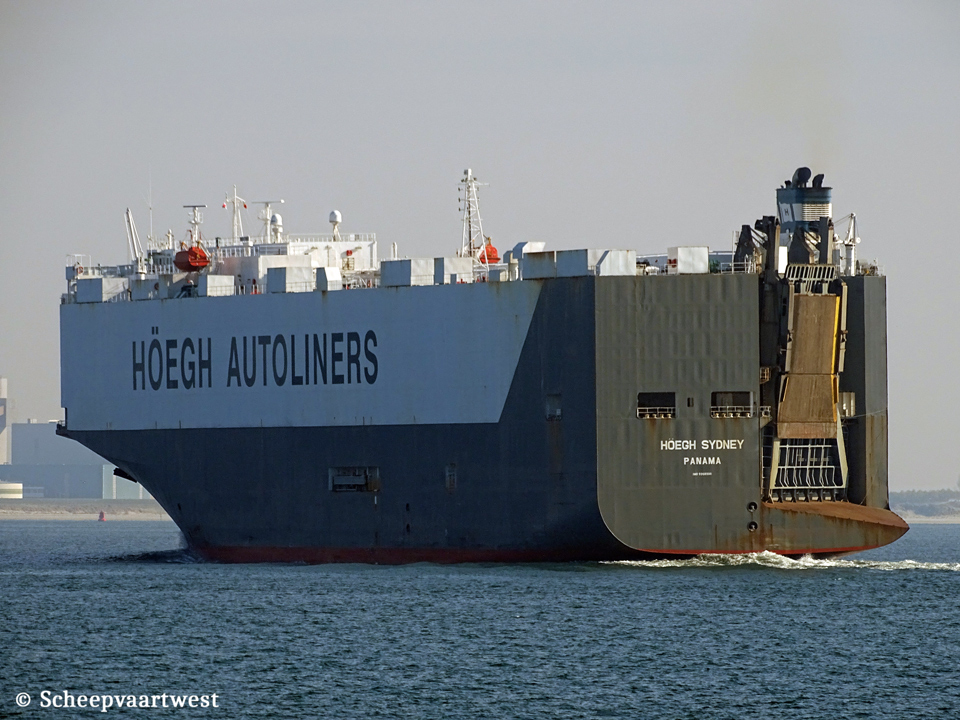

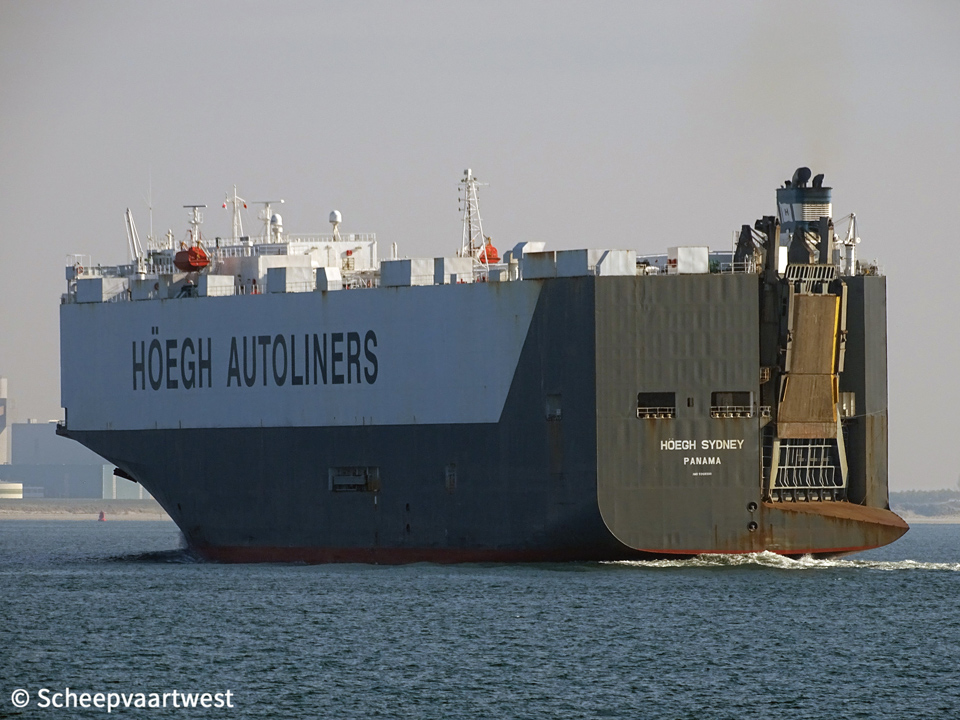

Höegh Sydney 01

Westerschelde 21 October 2018



Name

HÖEGH SYDNEY

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9368900

Call sign

3FEF4

Flag

Republic of Panama

Port of registry

Panama City

GT

51.731 t registered

DWT

Summer: 17.311 t

NT

15.519 t registered

Length

179,90 m overall

Breadth

32,20 m

Draught

Summer: 9,62 m

Moulded L x B x D

170,00 x 32,20 x 15,07 m

Registered L x B x D

174,00 x 32,20 x 21,62 m

Freeboard

Summer: 5.485 mm

Depth

15,07 m moulded

Speed

Max: 21,1 knots

Built

2007

Keel laid

06/11/2006

Launch date

26/03/2007

Date of completion

13/08/2007

Builder

Tsuneishi Heavy Industries (Cebu) Inc.

Balamban

Philippines

Yard number

090

Hull material

Steel

Main engine

1x Mitsui MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 14.120 kW / 19.198 bhp at 100,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 610 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler- 7,0 bar

Evaporation: 3,35 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators total 3.725 kVA

Bow thruster

1.300 kW

Number of cars

4.379

Tank capacities

Fuel oil: 3.414 m³

Fresh water: 441 m³

Manager

Union Marine Management Services Pte Ltd.

Republic of Singapore

Operator

Höegh Autoliners

Registered owner

Chijin Shipping SA

Hiroshima-ken

Japan

Latest data adjustment

02 January 2020
