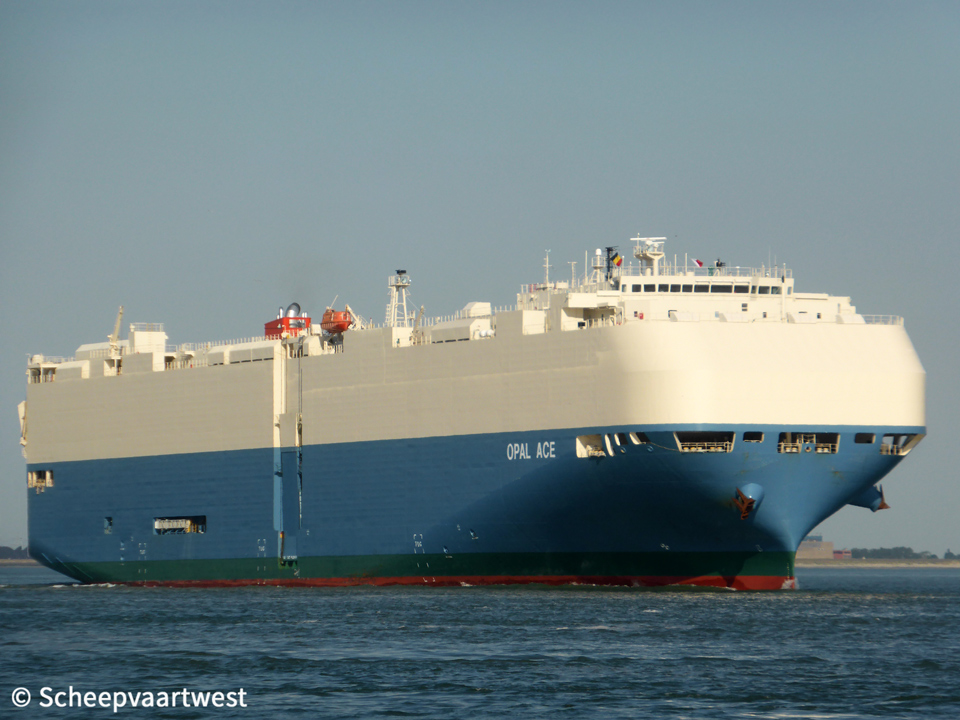

Opal Ace 01

Westerschelde 30 June 2015

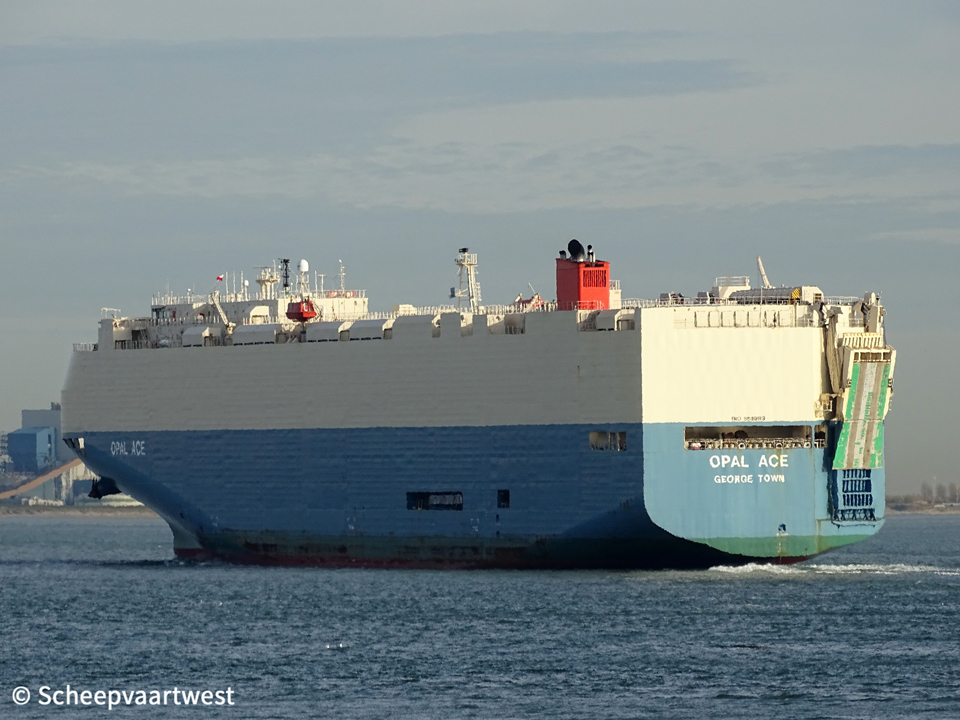

Opal Ace 02
Westerschelde 06/11/18









Name

OPAL ACE

Type

Roll-On/Roll-Off carrier - Vehicles carrier

IMO-number

9539183

Call sign

ZGBY9

Flag

Cayman Islands

Port of registry

George Town

GT

60.131 t registered

DWT

Summer: 18.507 t

NT

18.430 t registered

Length

199,99 m overall

Breadth

32,26 m moulded

Draught

Max: 9,73 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x B x D

194,31 x 32,26 x 21,25 m

Freeboard

Summer: 5.013 mm

Depth

14,70 m moulded

Speed

Max: 22,9 knots

Built

2011

Keel laid

01/11/2010

Launch date

15/07/2011

Date of completion

09/11/2011

Builder

Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works
Japan

Yard number

1293

Hull material

Steel

Main engine

1x 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3,92 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators total 4.586 kVA

Number of cars

6.312

Number of trucks

376

Tank capacities

Fuel oil: 2.921 m³

Freshwater: 567 m³

Crew size

32

Manager

MOL Ship Management (Singapore) Pte. Ltd.

Operator

Mitsui OSK Lines Ltd.

Owner

Ivoryshell Marine SA

Latest data adjustment

26 March 2019
