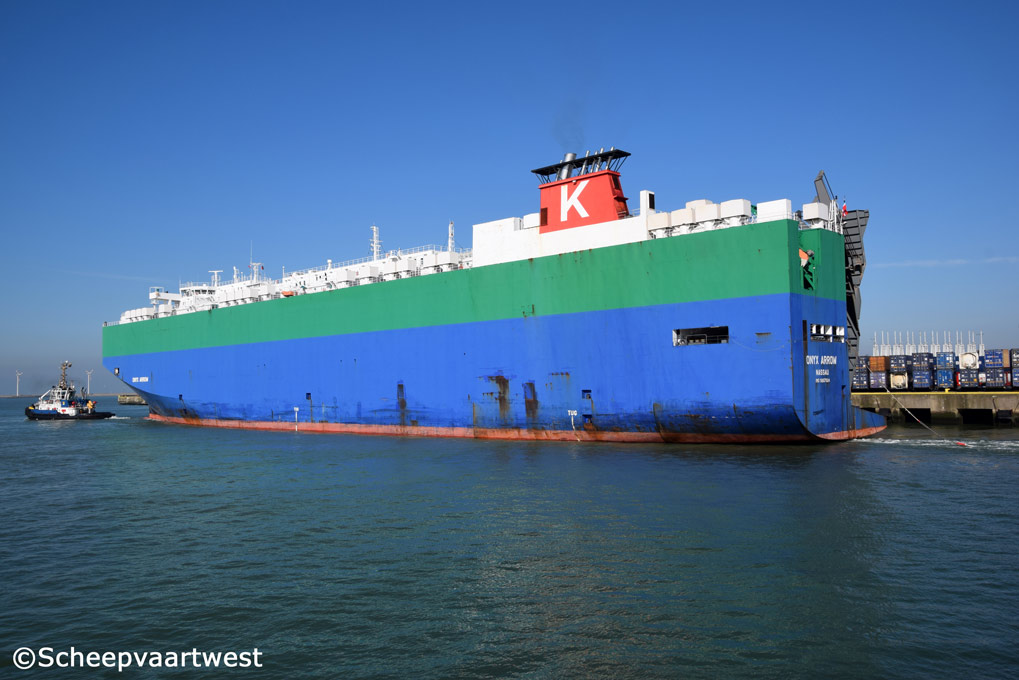

Onyx Arrow 01

Zeebrugge 02 October 2015

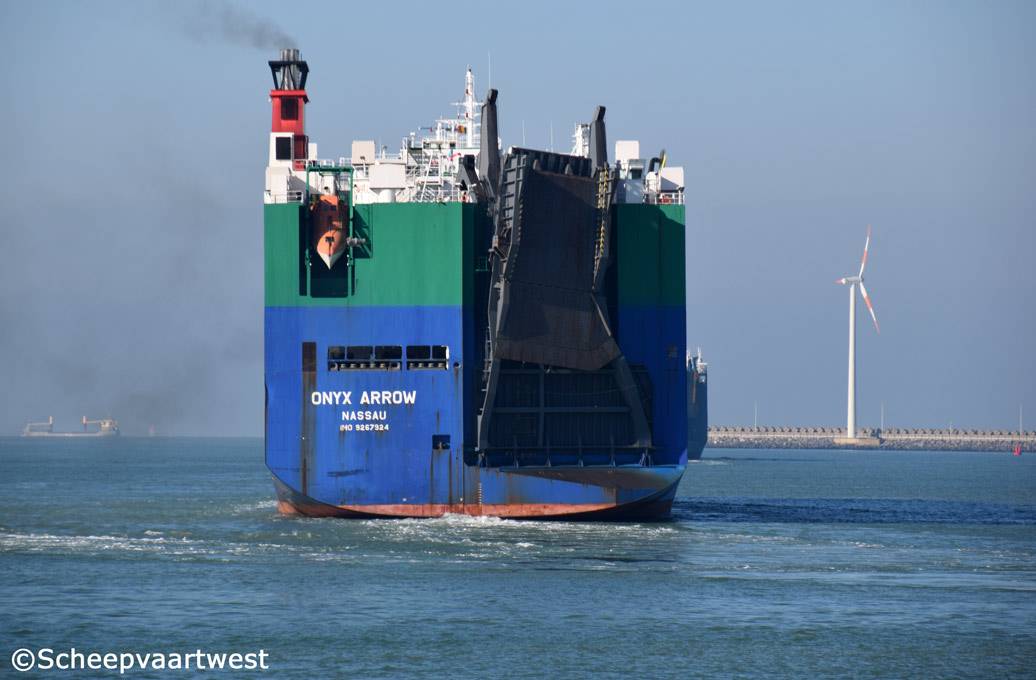

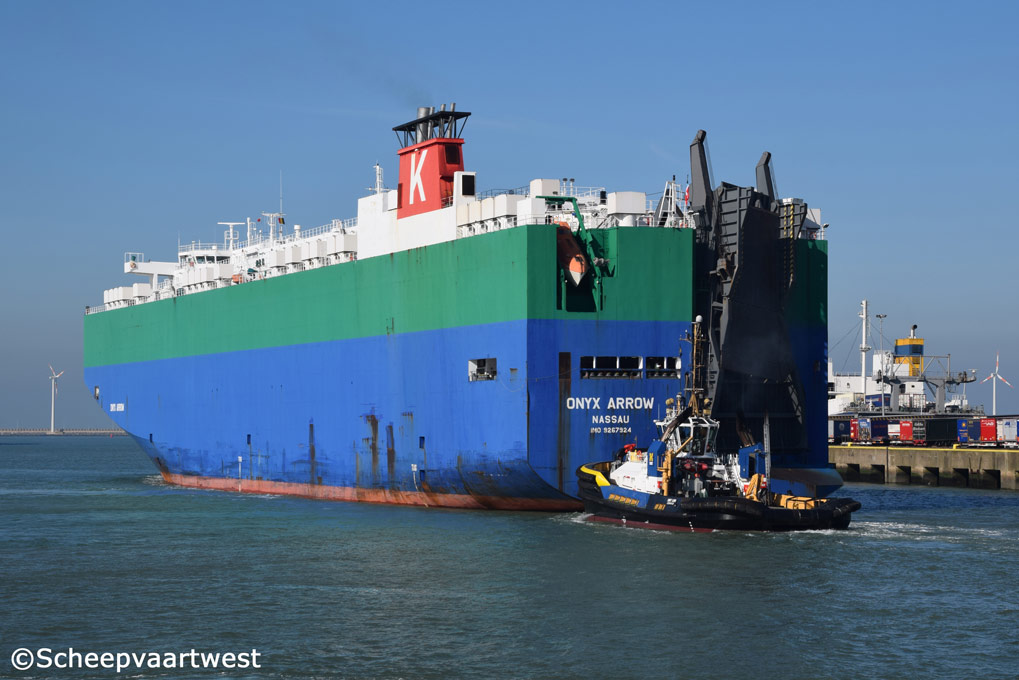

Onyx Arrow 03   Onyx Arrow 06
Zeebrugge 02/10/15 Zeebrugge 02/10/15



Name

ONYX ARROW

Type

Vehicles carrier

PCTC- Pure Car and Truck Carrier

IMO-number

9267924

Call sign

C6UH8

Flag

Bahamas

Port of registry

Nassau

GT

57.692 t

DWT

21.087 t

NT

21.037 t

Length

199,93 m overall

188,23 m between perpendiculars

Breadth

32,24 m

32,39 m extreme

Draught

Summer: 10,00 m

Freeboard

3.645 mm

Depth

19,98 m

Speed

20,4 knots

Built

2006

Keel laid

02.07.2005

Launch date

30.01.2006

Date of completion

17.03.2006

Builder

Stocznia Gdynia S.A.
Gdynia
Poland

Yard number

8168/13

Hull material

Steel

Bulkheads

Transverse: 3

Main engine

1x MAN-B&W-Ciegelski 7S60MC-C - 2 stroke 7 cylinder diesel engine 15.540 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, exhaust gas heated AV-7

1x Auxiliary boiler, oil/gas fired Mission OS

Generators

3x MAN B&W 7L28/32H diesel generatorsets each 1.450 kW

Emergency generator

1x MAN D2866LXE30 diesel generatorset

Manufacture: MAN Nutzfahrzeuge AG

Bow thruster

1x 1.400 kW

Number of decks

8

Number of cars

6.658

Tank capacities

Ballast: 7.774 m³

Lifting equipment

Length: 660,00 m

Diameter: 78 mm

Manager

Stamco Shipmanagement Co., Ltd.
Akti Miaouli 21
Piraeus 185 35
Greece

Operator

K-Line - Kawasaki Kisen Kaisha, Ltd.

Owner

Ray Car Carriers
Douglas - Isle of Man
United Kingdom

Registered owner

Onyx Maritime Limited

Latest data adjustment

22 October 2015
