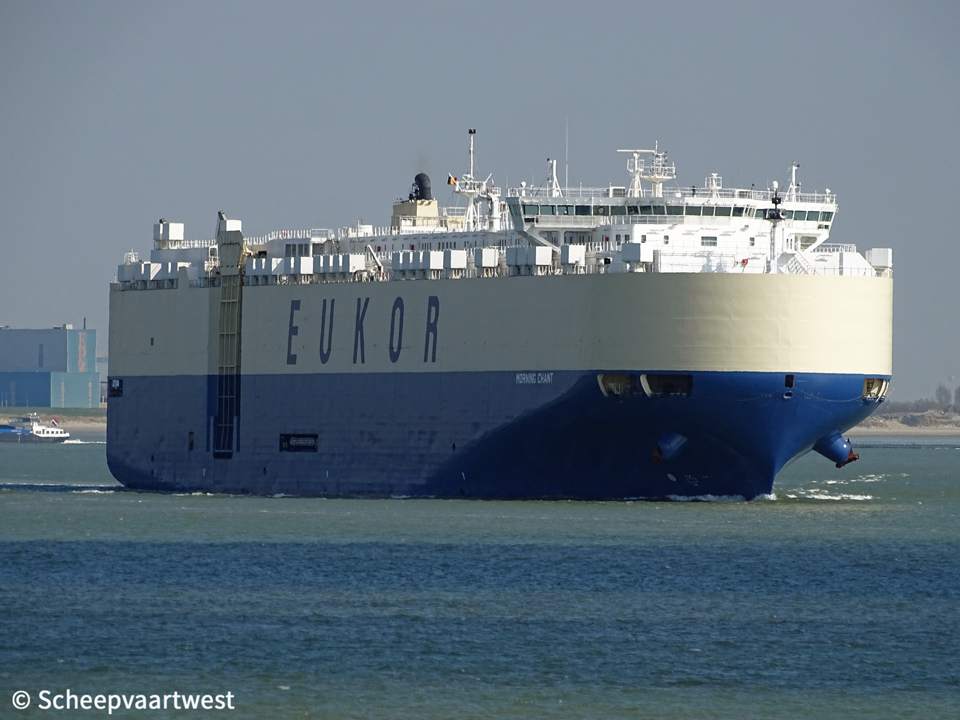

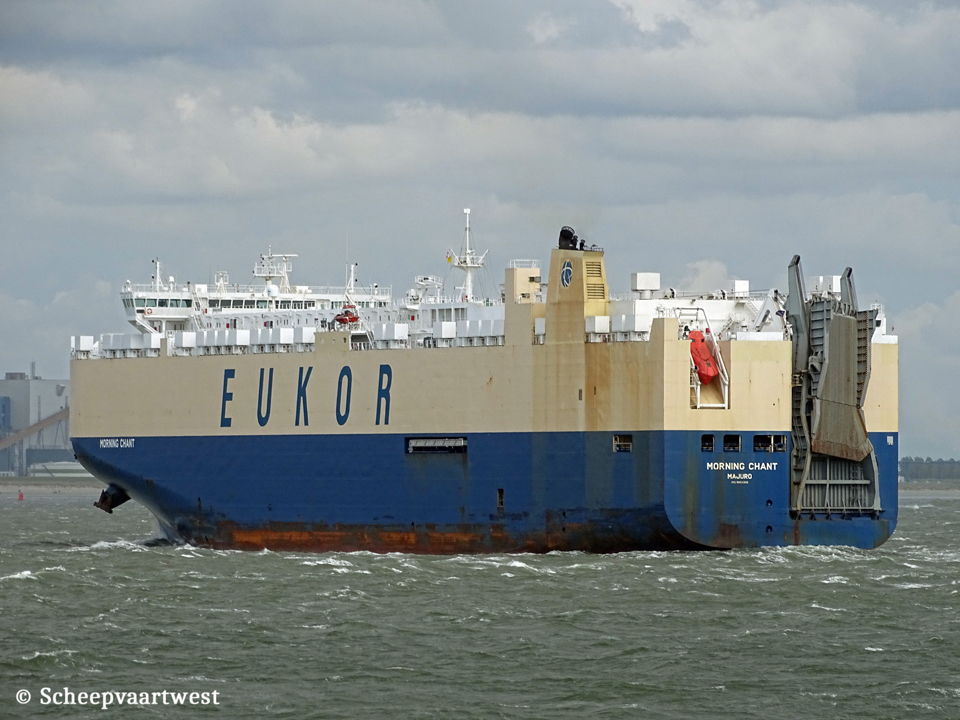

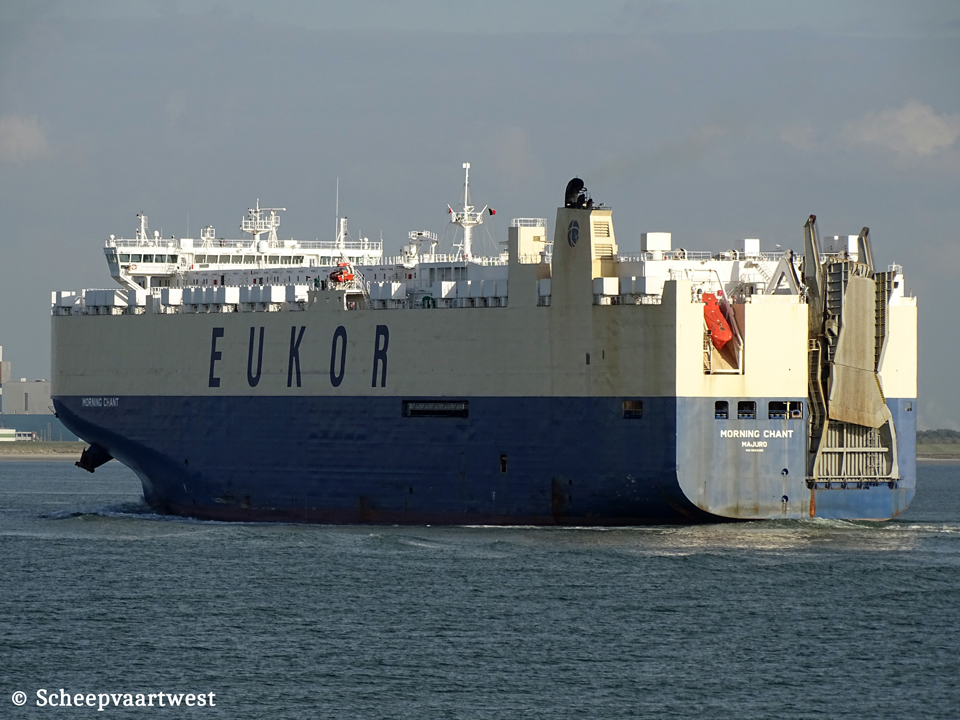

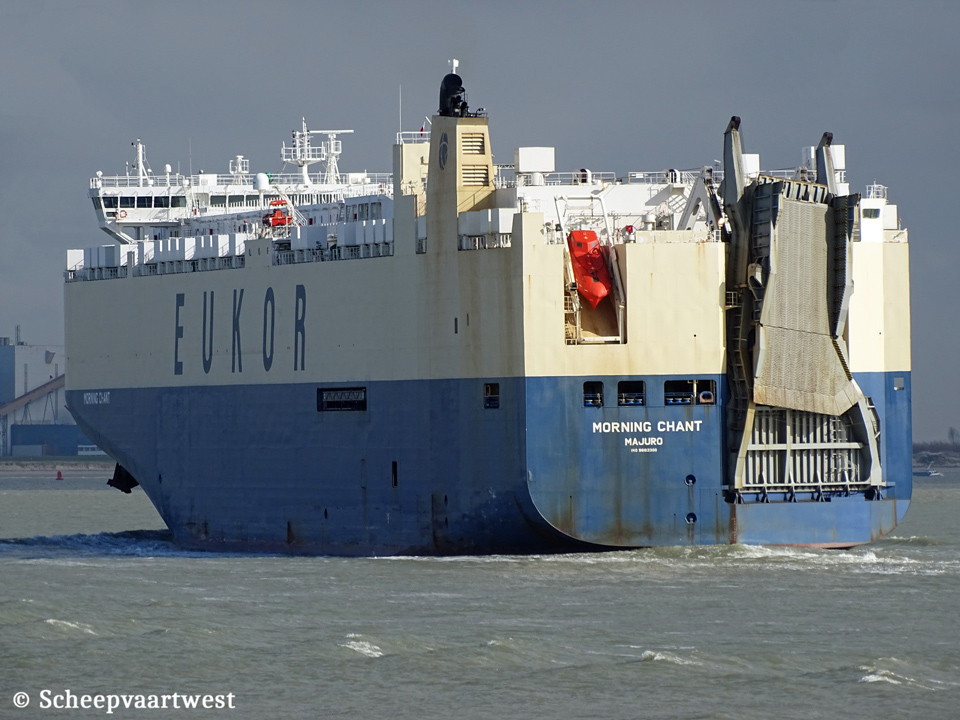

Morning Chant - IMO 9663300

Westerschelde 11 April 2019

Name

MORNING CHANT

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9663300

Call sign

V7CV7

Flag

Marshall Islands

Port of registry

Majuro

GT

59.615 t

DWT

Summer: 20.190 t

NT

21.042 t

Length

199,98 m overall

189,25 m between perpendiculars

Breadth

32,29 m extreme

Draught

Max: 10,02 m

Reg. Dimensions L x B x D

192,87 x 32,26 x 20,11 m

Rule Dimension L x B x D

188,60 x 32,26 x 14,30 m

Freeboard

Summer: 3.020 mm

Depth

13,40 m

Speed

20,4 knots

Built

2014

Keel laid

29/04/2013

Launch date

31/08/2013

Date of completion

17/01/2014

Builder

Hyundai Heavy Industries Co., Ltd.

Gunsan

South Korea

Yard number

2609

Hull material

Steel

Number of decks

11x Incl 4 hoistable decks

Main engine

1x HHI/MAN-B&W - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 13.570 kW at 104,0 rpm

Build: 04/2013

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea

Propellers

1x Fixed Propeller

Boilers

1x Auxiliary water tube boiler - 8,8 kg/cm²

Heating surface: 37,2 m²

2x Economizer EGE - 11,7 kg/cm²

Heating surface: 332,0 m²

Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

3x Hyundai/Himsen 6H25/33 - 4 stroke 6 cylinder 250 x 330 mm diesel engines each 1.980 kW

Number of cars

6.674

Tank capacities

Fuel oil: 3.854,9 m³

Fresh water: 304,1 m³

Water ballast: 10.909,9 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 m

Crew

24

Manager

Eukor Car Carriers Inc.

Technical manager

Wilhelmsen Ship Management (Korea) Ltd.

Operator

Eukor Car Carriers Inc.

13th Floor, Hansol Building

Yeoksam 1-dong Gangnam-gu

Seoul, 135-983

South Korea

Registered Owner

Chant International Associates S.A.

Latest data adjustment

28 January 2021
