Name |

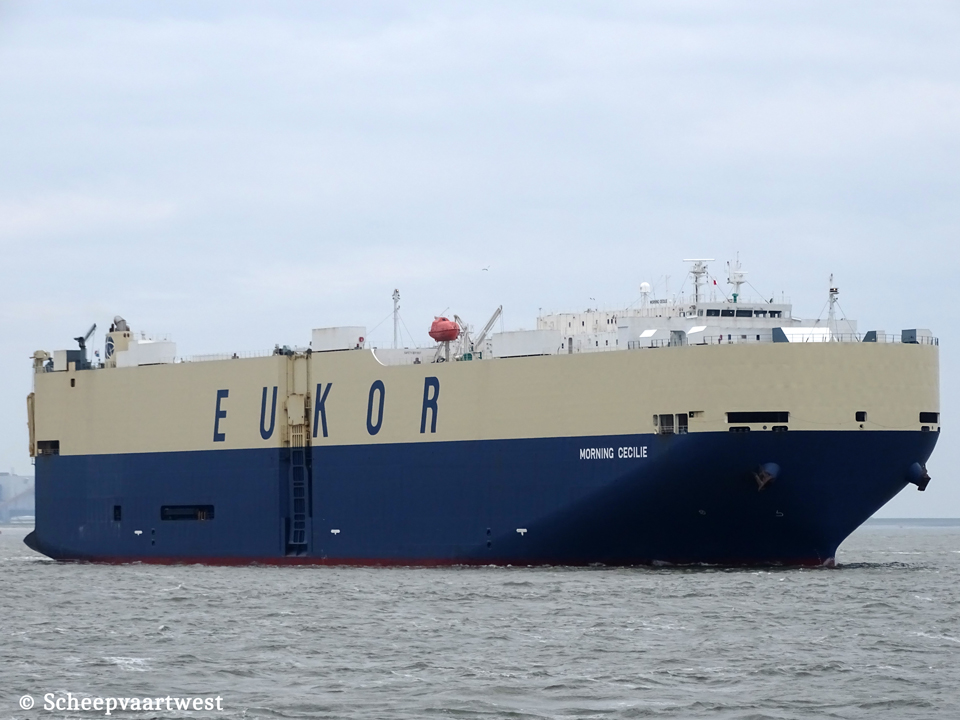

MORNING CECILIE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9477830 |
|
Call sign |
3FHK6 |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GT |
60.876 t registered |
|
DWT |
Summer: 22.699 t |
|
NT |
18.263 t registered |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 10,02 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
194,11 x 32,26 x 24,32 m |
|
Freeboard |
Summer: 5.025 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Service: 19,5 knots Max: 21,9 knots |
|
Built |
2008 |
|
Keel laid |
16/06/2008 |
|
Launch date |
18/10/2008 |
|
Date of completion |
16/12/2008 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Japan |
|
Yard number |
1497 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe Hatsudoki 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW / 21.128 hp at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 650 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,35 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.000 kW |
|
Bow thruster |
1x 1.500 kW |
|
Number of ramps |
2 |
|
Number of cars |
6.502 |
|
Tank capacities |
Fuel oil: 3.668 m³ Fresh water: 368 m³ |
|
ISM & commercial manager |
Excel Marine Co. Ltd. 6th Floor, Seamark Building, 3-2-1, Kashiiteriha, Higashi-ku, Fukuoka-shi Fukuoka Prefecture, 813-0017 Japan |
|
Operator |
Eukor Car Carriers Inc. Seoul South Korea |
|
Registered owner |
Lucia Navigation (Panama) S.A. |
|
Latest data adjustment |
05 March 2023 |
