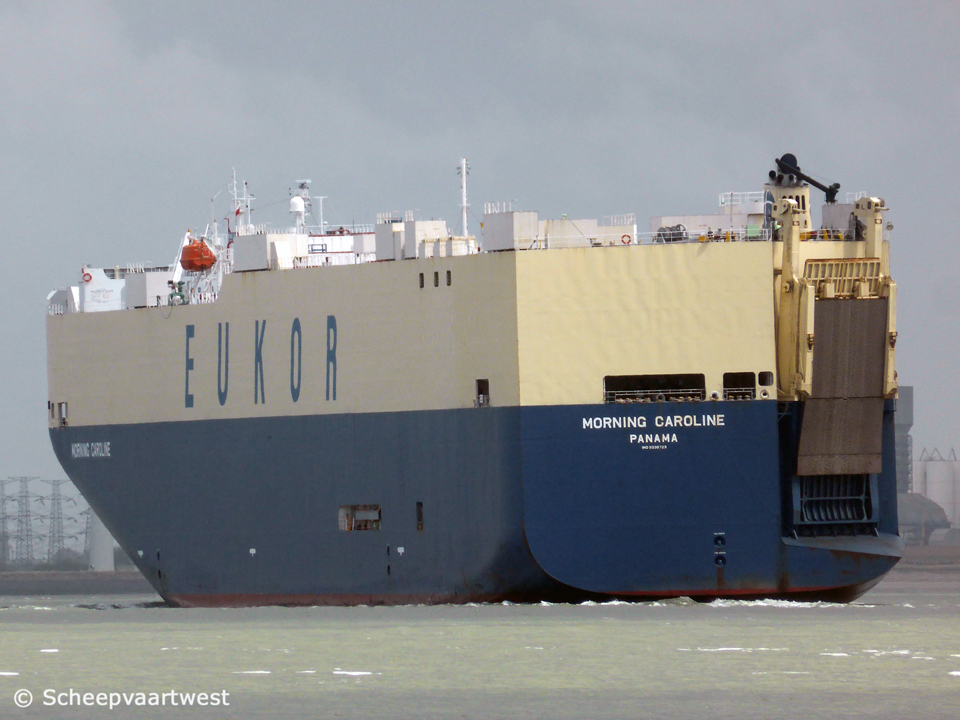

| Westerschelde 17 March 2019 |
 |
 |
 |
 |
 |
 |
|||||

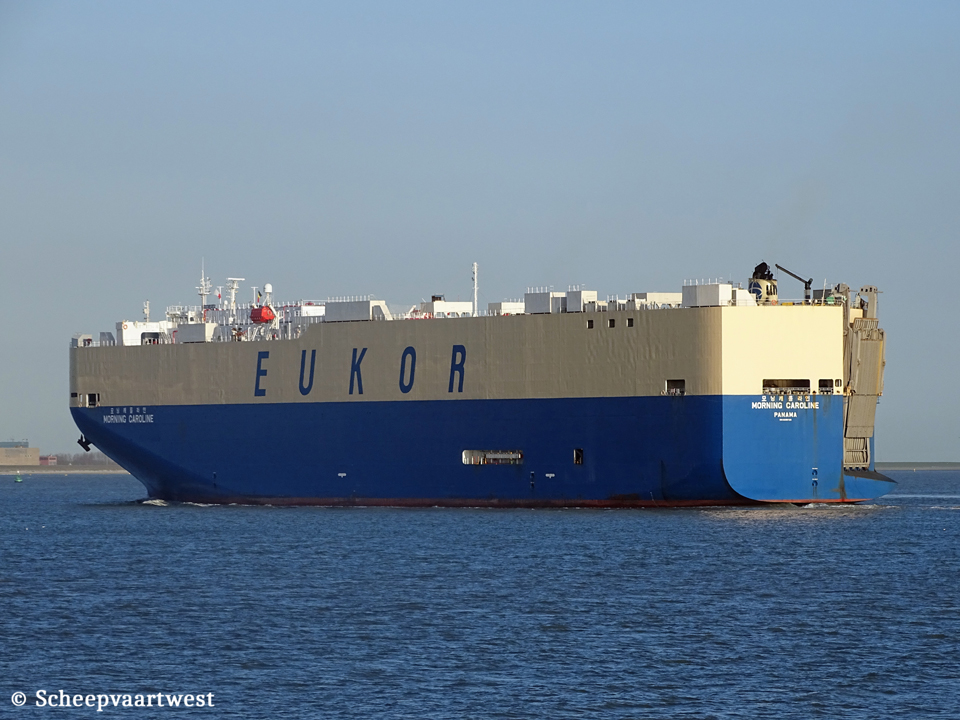

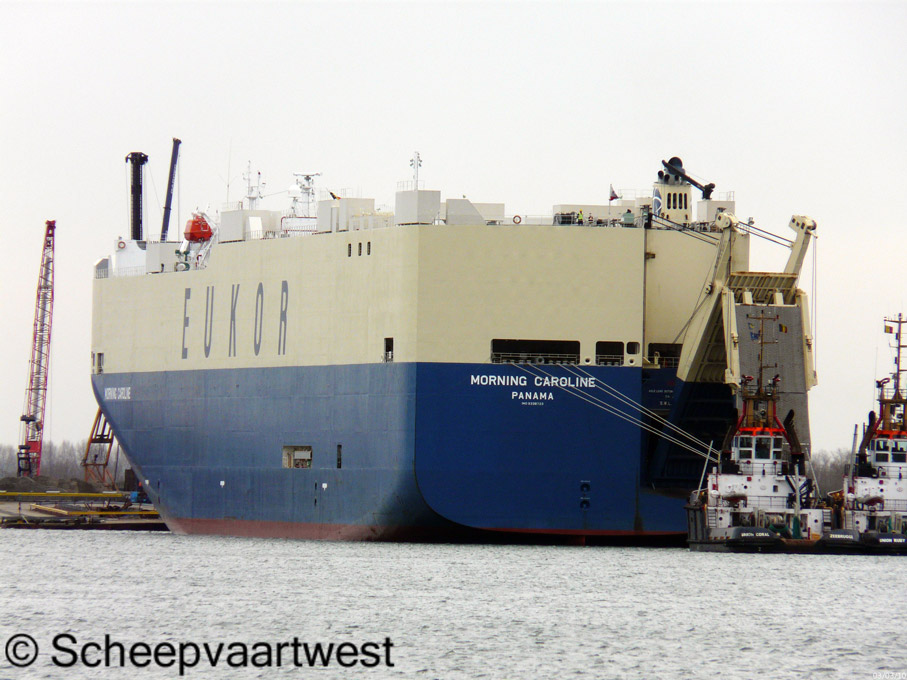

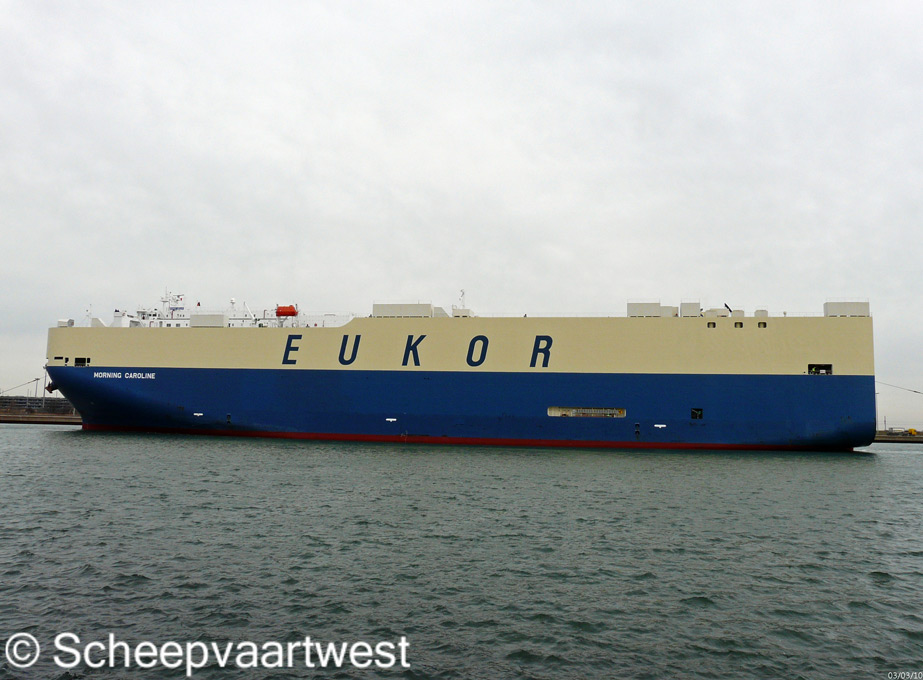

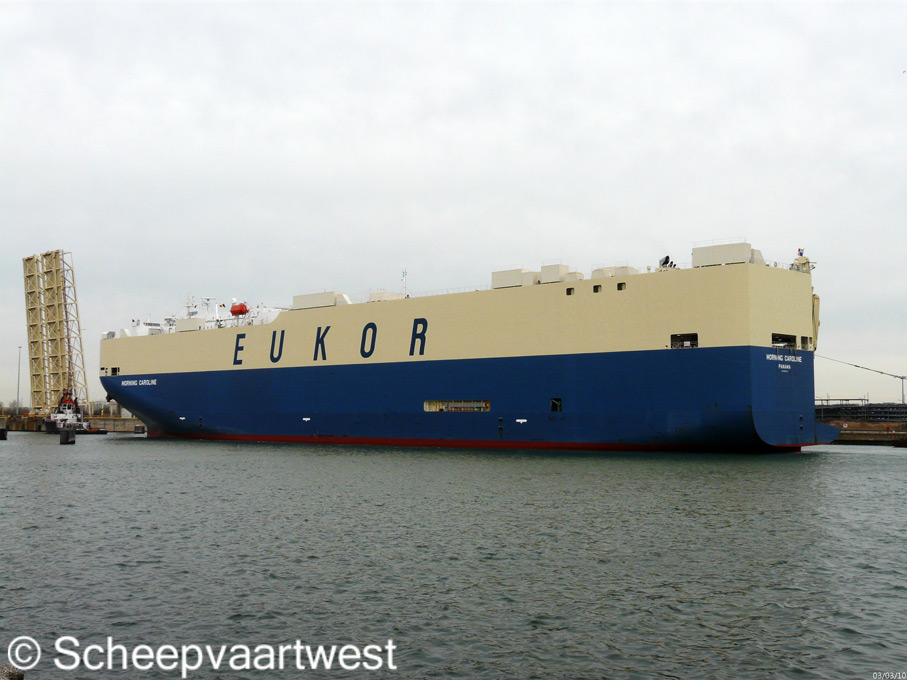

| Zeebrugge 03/03/10 | Zeebrugge 03/03/10 | Zeebrugge 03/03/10 | Zeebrugge 03/03/10 | Westerschelde 07/05/15 | Westerschelde 24/03/19 | |||||
|
Name |
MORNING CAROLINE |
|
Korean name |
모닝 캐롤라인 |
|
Type |
Vehicles carrier PCC - Pure car carrier |
|
IMO-number |
9338723 |
|
Call sign |
3EPF3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
60.876 t registered |
|
DWT |
22.717 t |
|
NT |
18,263 t registered |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
194,11 x 32,26 x 24,32 m |
|
Draught |
10,016 m |
|
Freeboard |
Summer: 5.025 mm |
|
Depth |
34,80 m |
|
Speed |
19,5 knots |
|
Built |
2008 |
|
Keel laid |
08/06/2007 |
|
Launch date |
04/12 2007 |
|
Date of completion |
08/02/2008 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Kagawa Japan |
|
Yard number |
1467 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW / 21.128 hp at 104,0 rpm Build: 01/09/2007 Manufacturer: Kobe Diesel Co., Ltd. - Japan |
|
Number of screws |
1x Fixed pitch propeller |
|
Boiler |
1x Auxiliary vertical boiler - 7,80 bar Evaporation: 4,35 t/h Heating Surface: 37,0 m² 1x Economizer EGE boiler - 11,0 bar Heating Surface: 425,7 m² Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Generatorsets total 3.870 kVA |
|
Bow thruster |
1w 1.500 kW |
|
Number of ramps |
2 |
|
Cargo capacity |
Cars: 6.502 Trucks: 162 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 3.512,6 m³ Fresh water: 413,6 m³ Water ballast: 10.066,2 m³ |
|
Lifting equipment |
2x Cranes - SWL 0,9 t each 3x Cranes - SWL 4,0 t each |
|
Crew |
21 |
|
ISM & commercial manager |
Wilhelmsen Ship Management Korea Ltd. 10th Floor, Marine Center Building, 52, Chungjang-daero 9beon-gil, Jung-gu, Busan 48936, South Korea |
|
Operator |
Eukor Car Carriers Inc. 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu, Seoul, 05551 South Korea |
|
Registered owner |
M Caroline S.A. |
|
Previous owner |
Caroline International Assoc |
|
Latest data adjustment |
15 July 2023 |
