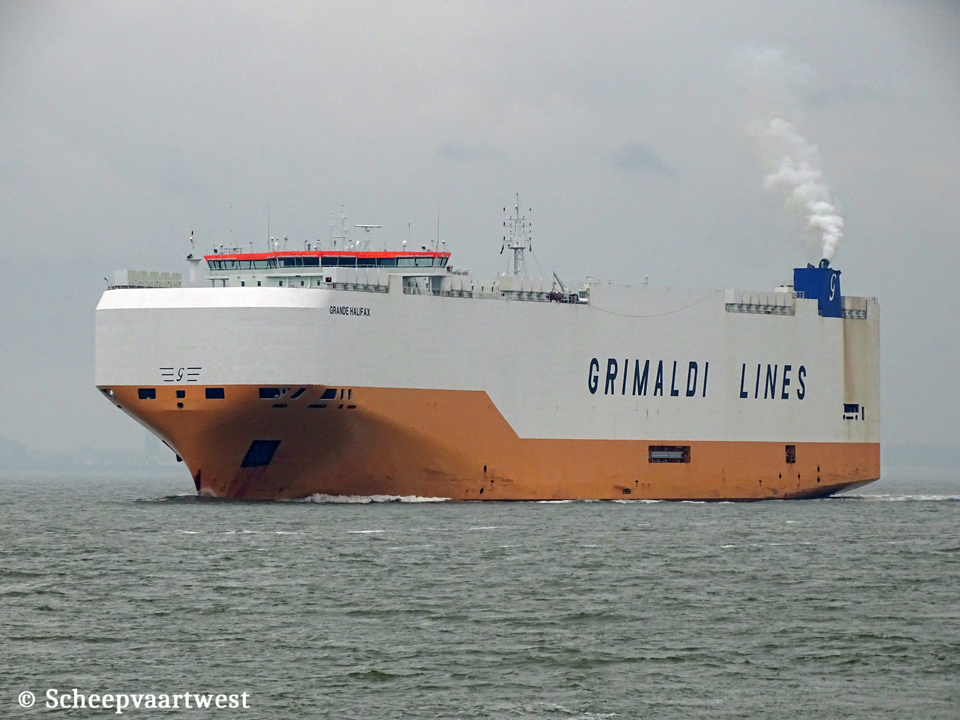

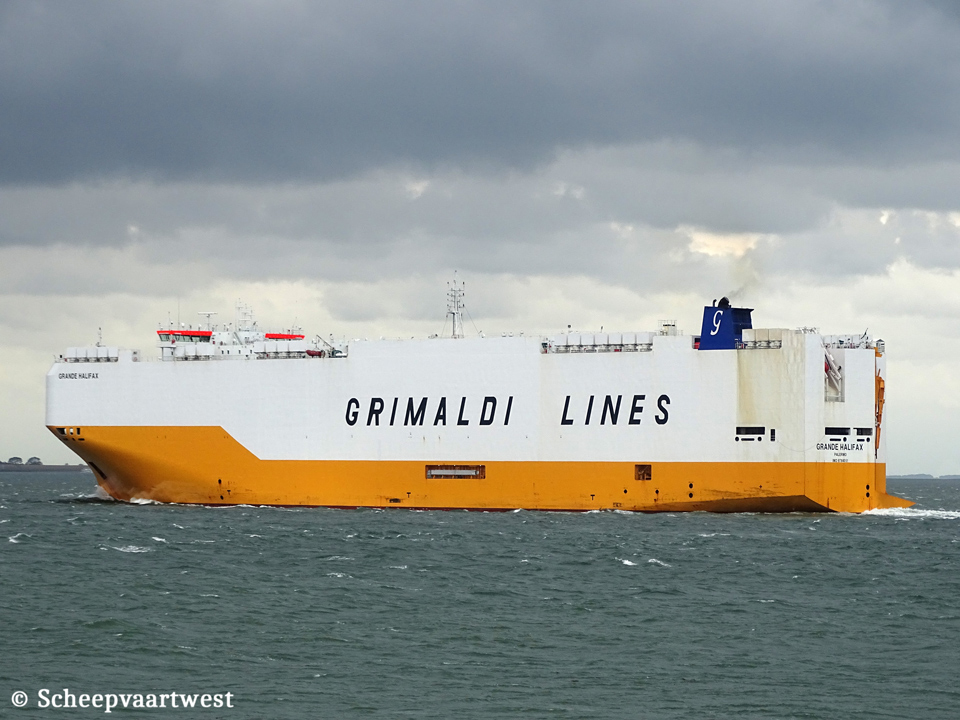

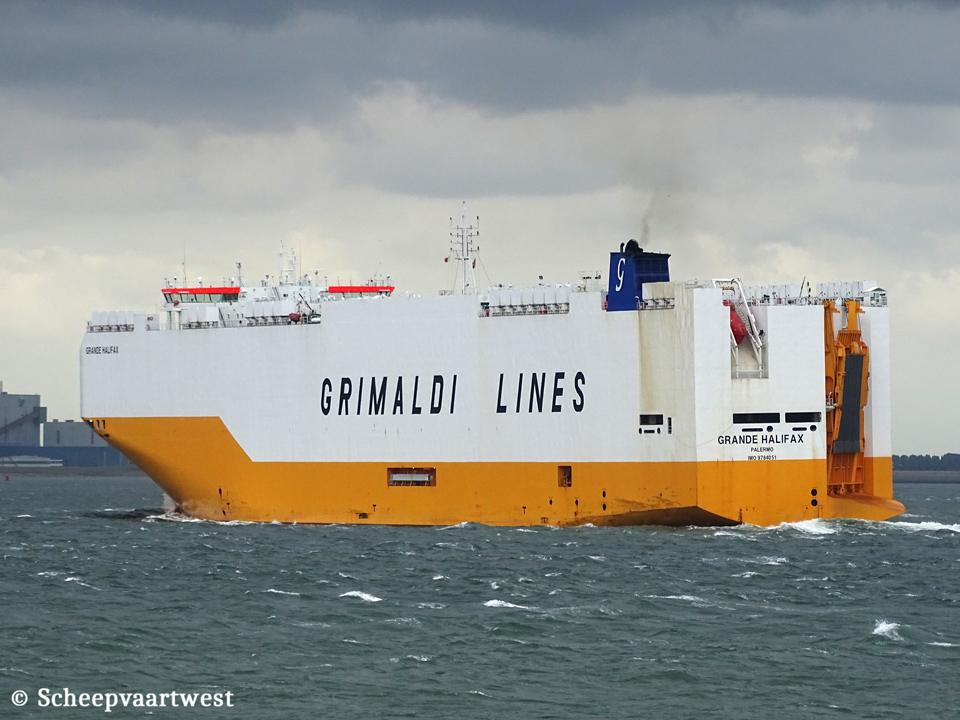

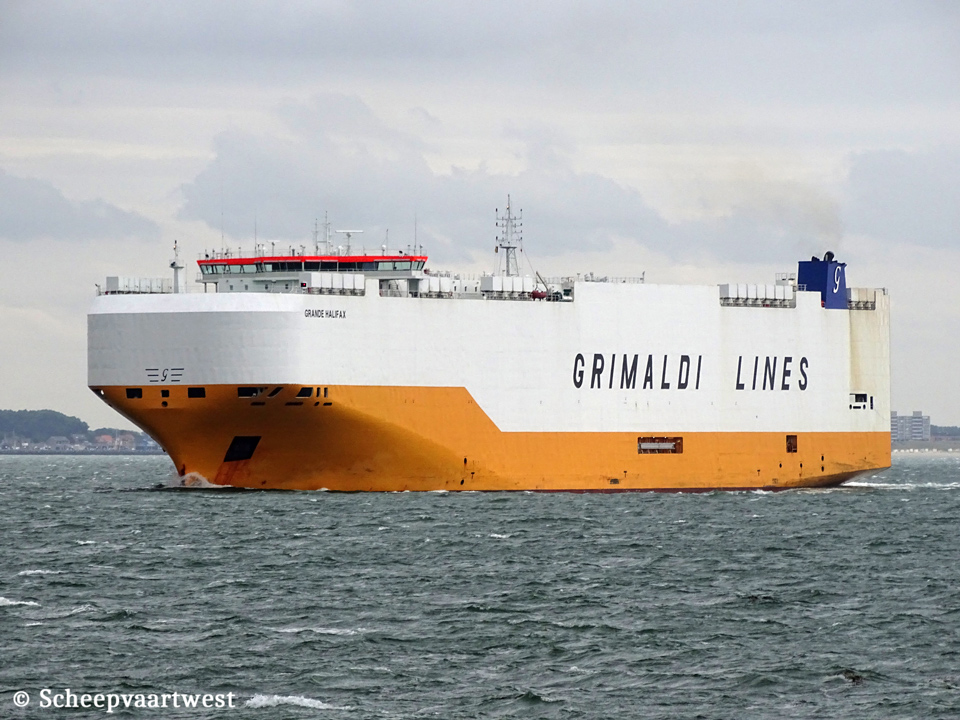

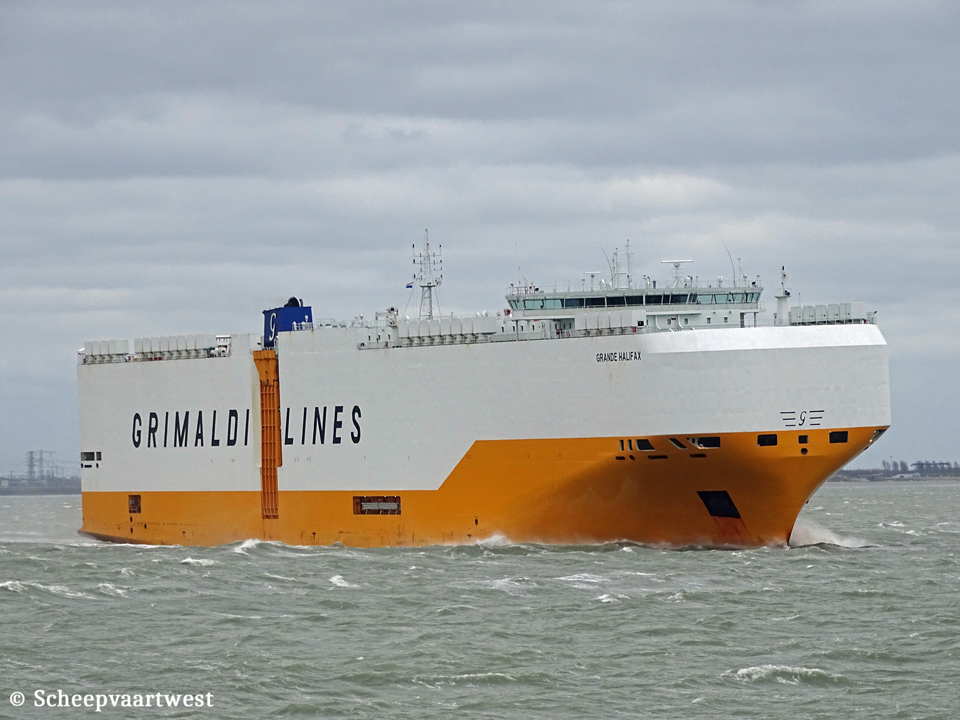

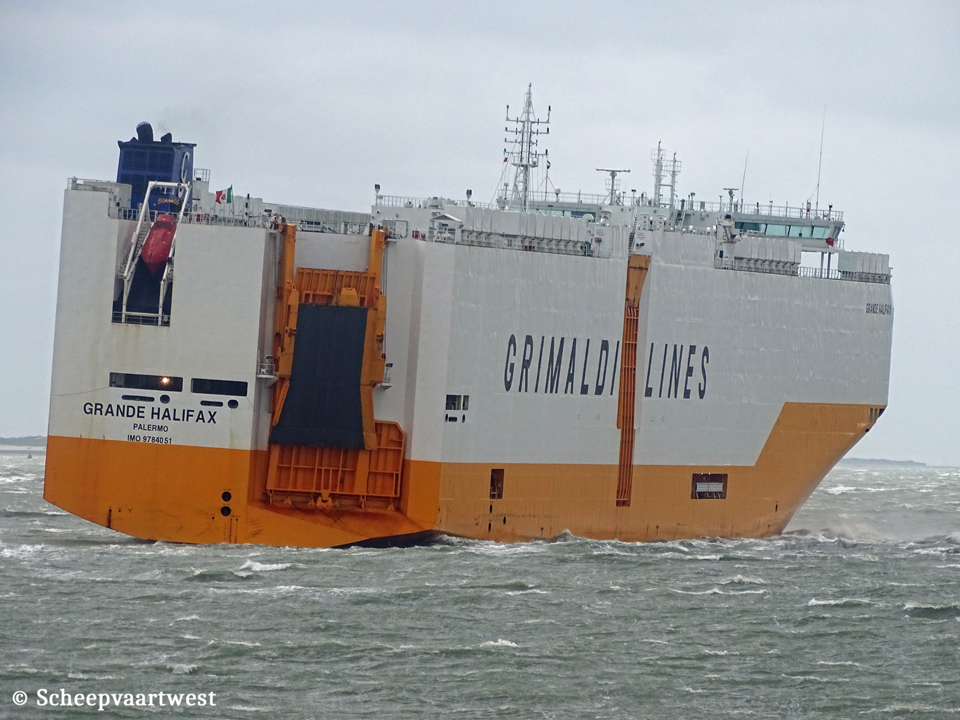

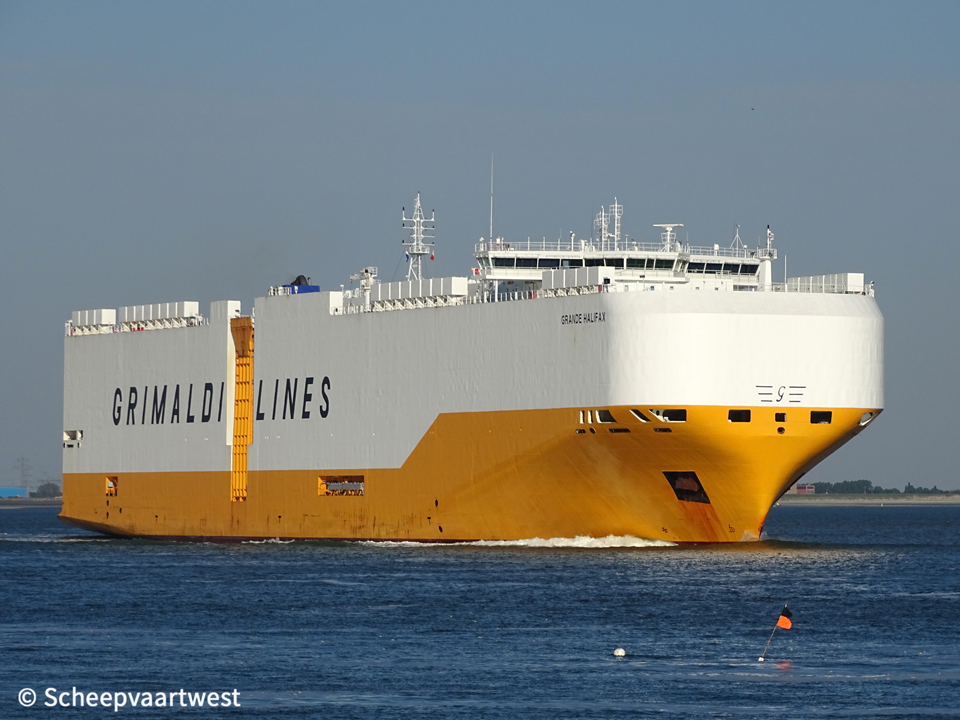

Westerschelde 18 July 2019 |
|
 |
 |
 |
 |
 |
|||||
| Westerschelde 18/07/19 | Westerschelde 18/07/19 | Westerschelde 15/05/19 | Westerschelde 18/11/19 | Westerschelde 16/03/19 | Westerschelde 16/03/19 | |||||
|
Name |
GRANDE HALIFAX |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9784051 |
|
Call sign |
IBOS |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
62.134 |
|
DWT |
18.353 t |
|
NT |
19.749 |
|
Displacement |
36.197 t |
|
Length |
199,90 m overall 190,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 10,00 m |
|
Depth |
21,45 m |
|
Lane metres |
4.000 m |
|
Speed |
19,5 knots |
|
Built |
2018 |
|
Keel laid |
18/11/2016 |
|
Delivery date |
10/01/2018 |
|
Builder |
Jinling Shipyard Nanjing China |
|
Yard number |
JLZ9150408 |
|
Hull material |
Steel - High resistance and ordinary |
|
Main engine |
1x MAN-B&W 6S60ME-C8 - 2 stroke 6 cylinder 600 x 2.000 m combustion engine 12.138 kW / 16.587 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
4x Diesel generatorsets each 1.820 kW |
|
Bow thruster |
1x 1.100 kW |
|
Number of complete decks |
7 |
|
Number of partial decks |
1 |
|
Number of cars |
6.700 |
|
Number of ramps |
2 |
|
Commercial manager |
Grimaldi Group Spa Via Marchese Campodisola 13 80133 Naples NA Italy |
|
ISM manager |
Grimaldi Euromed SpA Via Marchese Campodisola 13 80133 Naples NA Italy |
|
Operator |
Grimaldi Lines |
|
Registered owner |
Grimaldi Euromed SpA Via Marchese Campodisola 13 80133 Naples NA Italy |
|
Latest data adjustment |
09 May 2025 |
