Vlissingen 26 September 2018 |
|
Name |

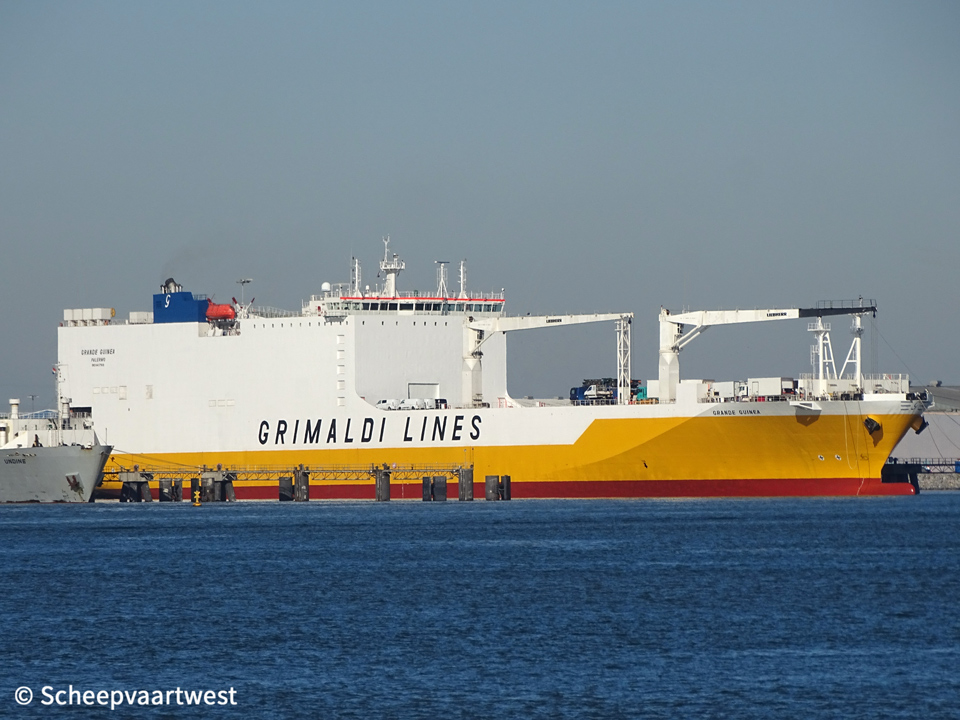

GRANDE GUINEA |
|
Type |
RoCon - Roll-On/Roll-Off car carrier- Containership |
|
IMO-number |
9437919 |
|
Call sign |
IBPL |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
47.658 |
|
DWT |
Summer: 25.799 t |
|
NT |
14.297 |
|
Number of 20ft containers |
1.318 |
|
Length |
211,00 m overall 196,80 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,75 m |
|
Lane metres |
4.190 m |
|
Depth |
13,51 m |
|
Speed |
Max: 20,9 knots |
|
Built |
2010 |
|
Keel laid |
14/01/2010 |
|
Date of completion |
28/07/2010 |
|
Builder |
Hyundai Mipo Dockyards Co. Ltd. Ulsan South Korea |
|
Yard number |
8028 |
|
Hull material |
Steel - High resistance and ordinary |
|
Main engine |
1x HHI/MAN-B&W 8S60ME-C - 2 stroke 8 cylinder combustion engine 19.040 kW / 25.895 hp at 104,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
3x Main diesel generatorsets each 1.500 kW / 440/220 Volt 60 Hz |
|
Bow thruster |
2x 1.000 kW each, forward 1x 1.000 kW, aft |
|
Number of complete decks |
4 |
|
Number of partial decks |
8 |
|
Number of cars |
3.616 |
|
Number of beds |
12 |
|
Number of passengers |
12 |
|
Cargo gear |
2x Deck cranes - SWL 40,0 t each |
|
Commercial manager |
Grimaldi Group Spa. Via Marchese Campodisola 13 80133, Naples NA Italy |
|
ISM manager |
Grimaldi Deep Sea Spa. Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Registered owner |
Grimaldi Deep Sea Spa. Via Marchese Campodisola 13 80133, Naples NA Italy |
|
Latest data adjustment |
09 May 2025 |
