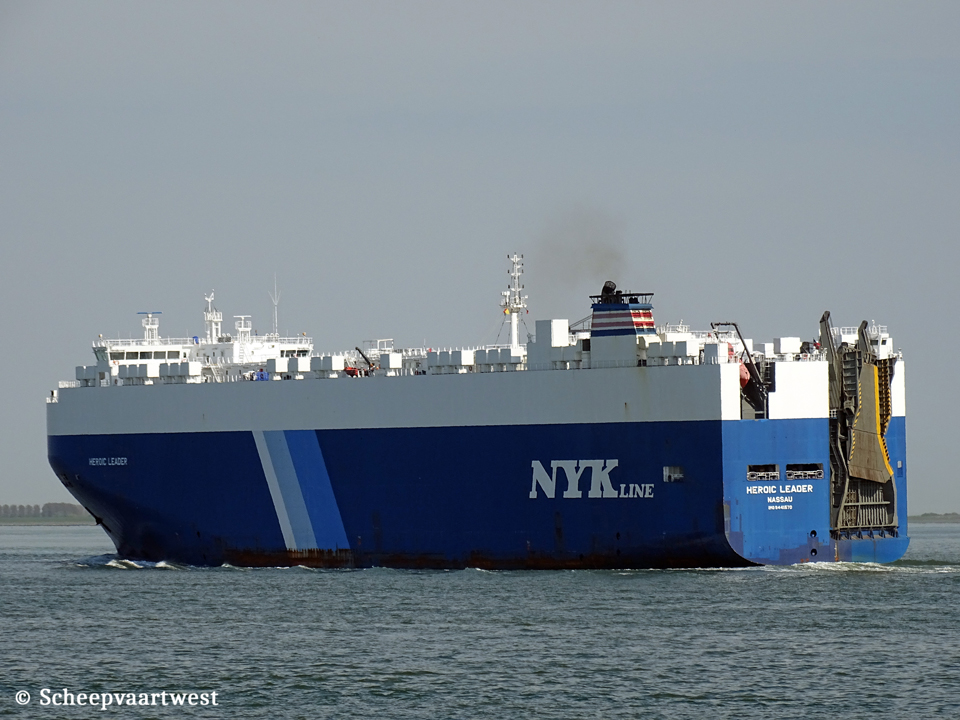

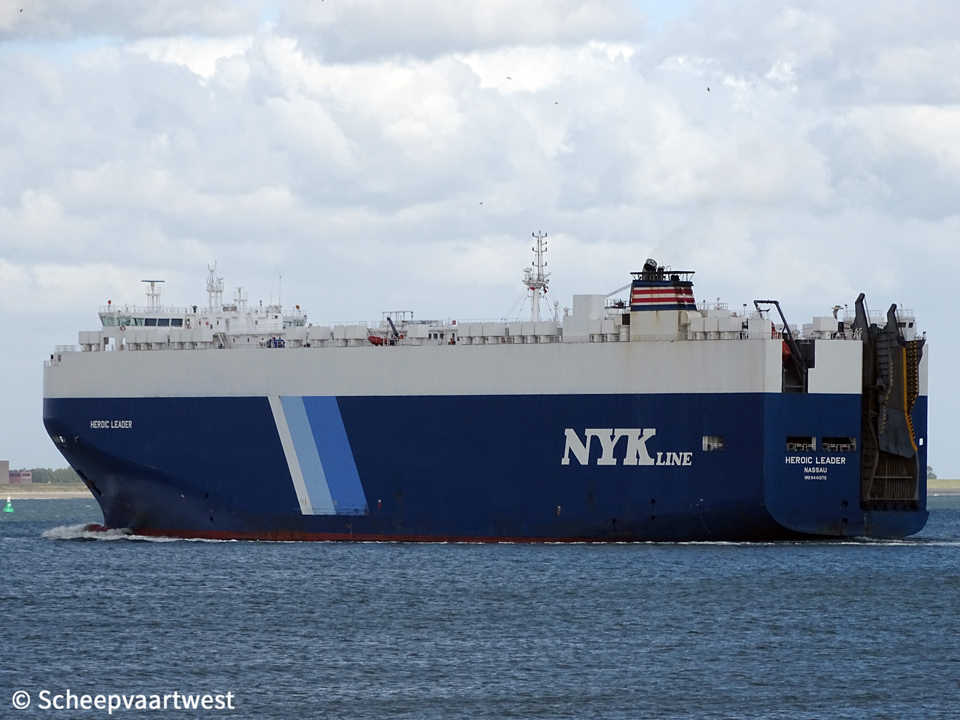

Westerschelde 21 June 2018 |
|
Name |
HEROIC LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC- Pure Car and truck Carrier |
|
IMO-number |
9441570 |
|
Call sign |
C6ZD2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.767 t |
|
DWT |
Summer: 20.434 t |
|
NT |
19.972 t |
|
Length |
199,95 m overall 191,00 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Max: 10,02 m |
|
Depth |
16,90 m |
|
Speed |
Max: 20,5 knots |
|
Built |
2011 |
|
Keel laid |
11/03/2011 |
|
Launch date |
30/05/2011 |
|
Date of completion |
20/09/2011 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
8040 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W/Hyundai 7S60MC-C - 2 stroke 7 cylinder combustion engine 14.280 kW / 19.150 hp |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Ind. Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated (Economizer) Builder: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
3x Hyundai/Himsen 6H25/33 main diesel generatorsets each 1.700 kW Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Doosan AD126TIS diesel generatorset |
|
Number of cars |
6.697 |
|
Ro-Ro ramps |
1x Starboard 1x Starboard aft |
|
Tank capacities |
Ballast: 8.906,1 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 81 mm |
|
Manager |
Stamco Ship Management Co. Ltd. |
|
Operator |
NYK-Line |
|
Registered owner |
Heroic Ray Limited |
|
Latest data adjustment |
31 October 2019 |
