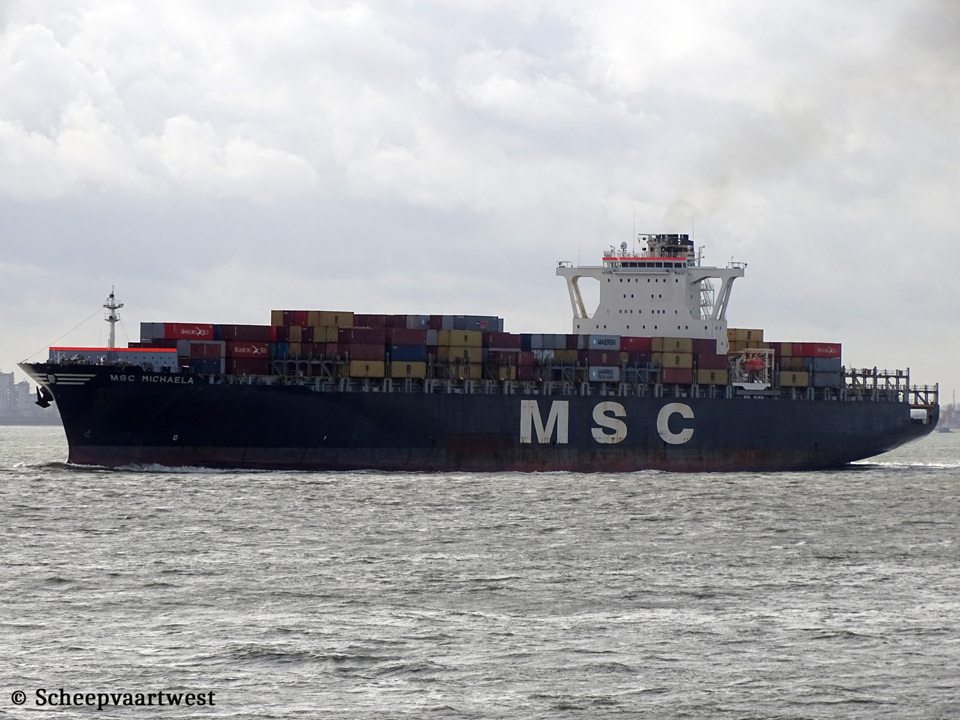

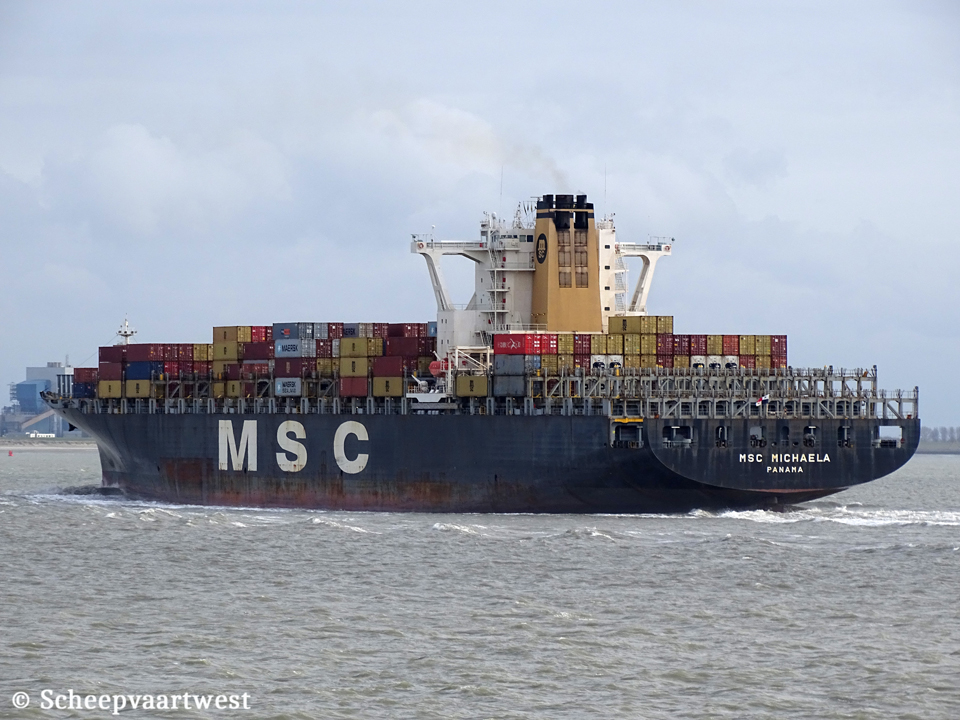

Westerschelde 17 January 2020 |
Westerschelde 17/01/20 | Antwerpen 20/05/11 | |
Name |
MSC MICHAELA |
Type |
Cellular containership |
IMO-number |
9230488 |
Call sign |
HOEZ |
Flag |
Republic of Panama |
Port of registry |
Panama City |
GT |
73.819 t |
DWT |
85.797 t |
NT |
47.138 t |
Number of 20ft containers |
6.730 |
Container capacity 14t |
5.150 |
Reefer capacity |
400 |
Length |
303,93 m overall 293,42 m registered |
Breadth |
40,00 m registered |
Draught |
14,50 m |
Freeboard |
5.370 mm |
Depth |
19,85 m moulded |
Speed |
24,0 knots |
Built |
2002 |
Keel laid |
26.12.2001 |
Launch date |
05.04.2002 |
Date of completion |
05.2002 |
Builder |
Hyundai Heavy Ind. Co., Ltd. |
Yard number |
1355 |
Hull material |
Shipbuilding steel (higher tensile) |
Hull type |
Double bottom |
Bulkheads |
8 |
Continuous decks |
2 |
Main engine |
1x MAN-B&W 10 K 98 MC-C - 2 stroke 10 cylinder 980 x 2.400 mm diesel engine - 57.100 kW at 104,0 rpm Year of manufacture: 2003 Manufacturer: Hyundai Heavy Ind. Co., Ltd. |
Propeller |
Solid propeller (keyless) - aft at 104,0 rpm |
Boilers |
1x Steam boiler, oil fired - 9,8 bar Heating surface: 68,0 m² 1x Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 894,0 m² Year of manufacture: 2003 Manufacturer: KangRim Ind. Co., Ltd. (1st Factory) |
Electric installations |
4x Plants each 440/220 V - 2.625 kVA 1x Plant 440 V - 625 kVA 1x Plant 24 V - 42 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 500 Ah |
Diesel generators |
4x MAN-B&W 8L27/38 diesel generatorsets each 2.625 kVA / 2.100 kW |
Emergency generator |
1x Diesel generatorset 625 kVA |
Compressed air receivers |
2x Receivers each 22.000 litres - 33,0 bar 2x Receivers each 250 litres - 33,0 bar 1x Receiver 250 litres - 7,7 bar |
Bow thruster |
1x Variable pitch propeller LIPS - 2.500 kW, forward |
Water ballast |
17.736 m³ |
Anchor equipment |
3x Anchors weight each 16.900 kg Chain Length: 742,50 m |
Cargo gear |
Gearless |
Manager |
MSC Mediterranean Shipping Company S.r.l. |
Operator |
MSC - Mediterranean Shipping Company |
Owner |
Hieracos Corporation |
