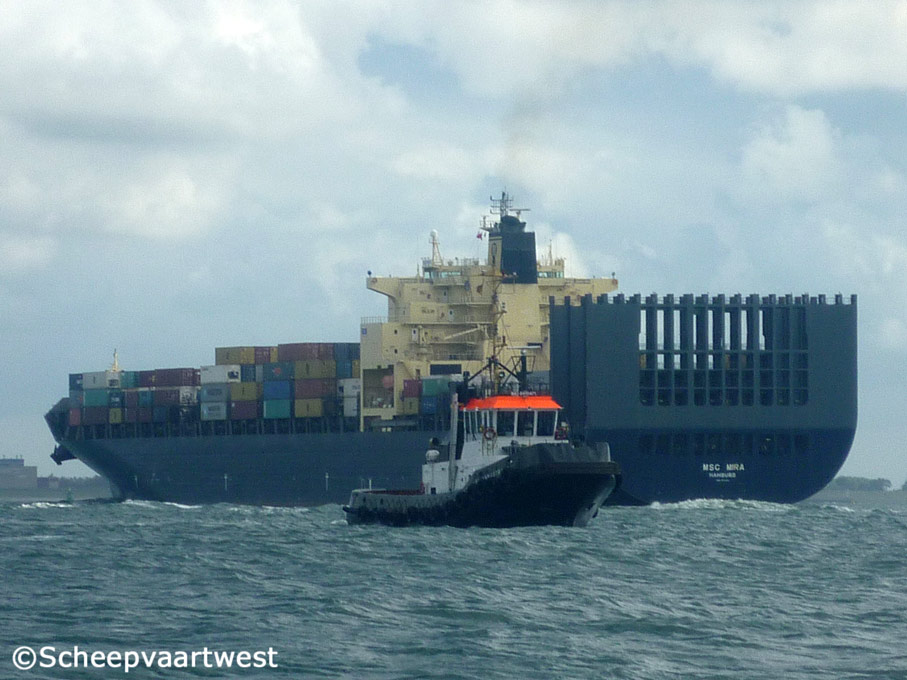

MSC Mira 01
Westerschelde 11 September 2011

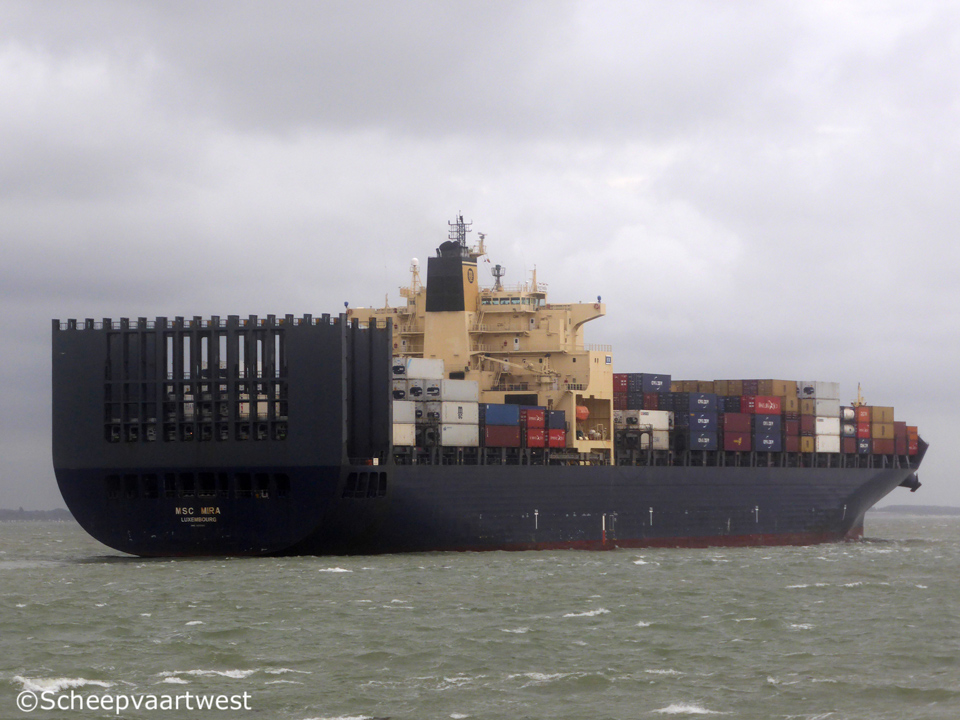

MSC Mira 02
Westerschelde 08/07/15



Name

MSC MIRA

Previous names

2000-2006 P&O Nedlloyd Torres

2006-2008 E.R. Felixstowe

Type

Cellular containership

IMO-number

9213583

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flag

2011 - 2013 Germany, Hamburg - Call sign: DPJW

GT

66.289 t

DWT

67.564 t

NT

33.235 t

Number of 20ft containers

5.514

Container capacity 14t

4.184

Reefer capacity

656

Length

277,23 m overall

263,25 m registered

Breadth

40,00 m registered

Draught

14,00 m

Forecastle

252,25 m

Poop

7,90 m

Freeboard

3.639 mm

Depth

24,30 m moulded

Speed

24,0 knots

Built

2000

Keel laid

25/04/2000

Launch date

28/07/2000

Date of completion

10/2000

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje ,656-710 Kyongsang-namdo
Republic of Korea

Yard number

1320

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 12K90MC - 2 stroke 12 cylinder 900 x 2.550 mm diesel engine - 54.840 kW at 94,0 rpm

Year of manufacture: 2000

Manufacturer: Samsung Heavy Industries Co., Ltd.
493, Banweol-dong
Hwasung-si , Kyunggi-do 445-330
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating Surface: 40,1 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating Surface: 1.033,0 m²

Year of manufacture: 2000

Manufacturer: Aalborg Boilers A/S
9100 Aalborg
Kingdom of Denmark

Electric installation

3x Plants each 440/220 V - 3.625 kVA

1x Plant 440 V - 2.625 kVA

1x Plant 440 V - 188 kVA

1x Plant 16 V - 200 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 2.625 kVA

Generators

3x MAN-B&W 7L32/40 main diesel generatorsets each 3.625 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Batteries

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 16.500 litres - 25,0 bar

2x Receivers each 150 litres - 25,0 bar

1x Receiver 100 litres - 25,0 bar

Bow thruster

1x Transverse thruster - 2.000 kW, forward

Tank capacities

Fuel oil: 8.737 m³

Ballast water: 15.057 m³

Anchor equipment

3x Anchors weight each 15.400 kg

Chain length: 742,50 m

Gear

Gearless

Manager

E.R. Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

MS "E.R. FELIXSTOWE" Schiffahrtsges. mbH & Co. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Renamed

2015 E.R. Felixstowe

Liberia, Monrovia - Call sign: D5OT9

Reg. owner: Fortyninth Phoenix Shipping Inc.
Manager: ZEABORN Ship Management GmbH & Cie. KG

Latest data adjustment

28 September 2018
