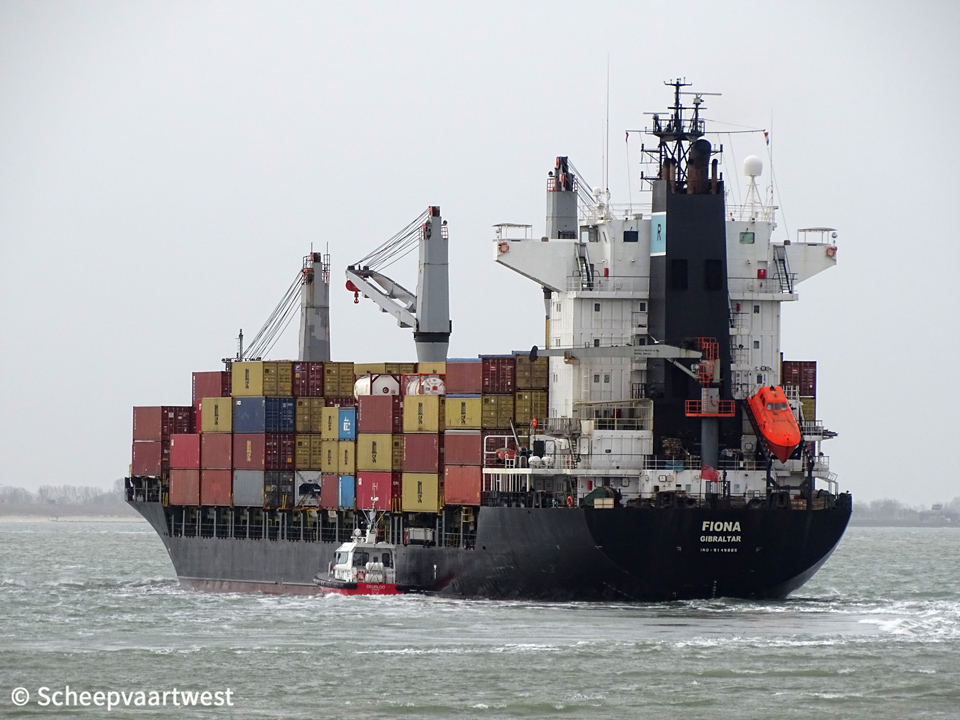

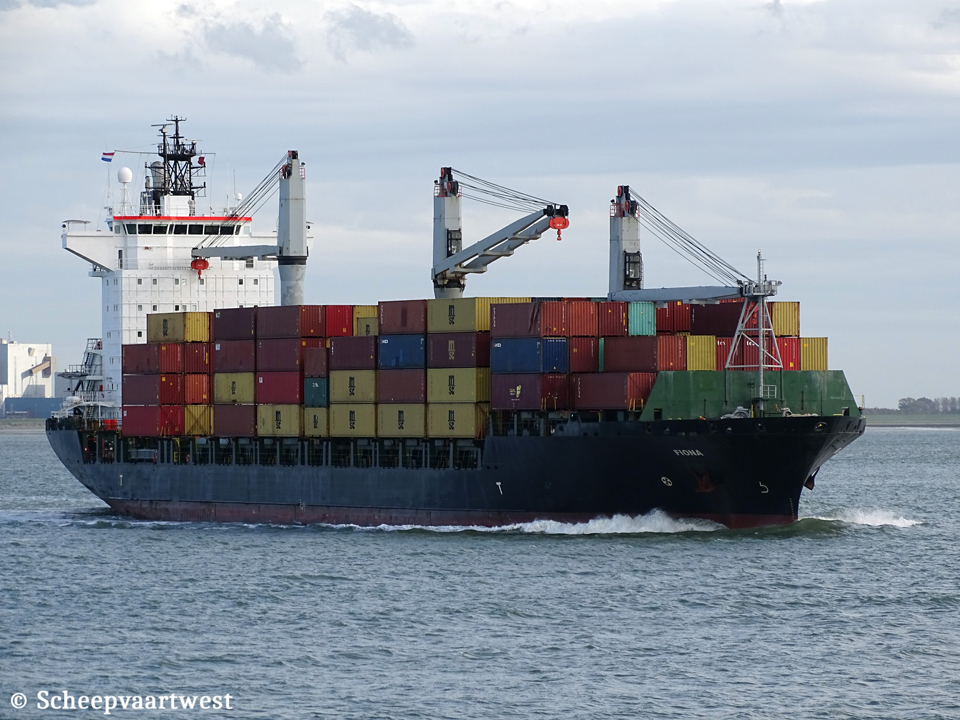

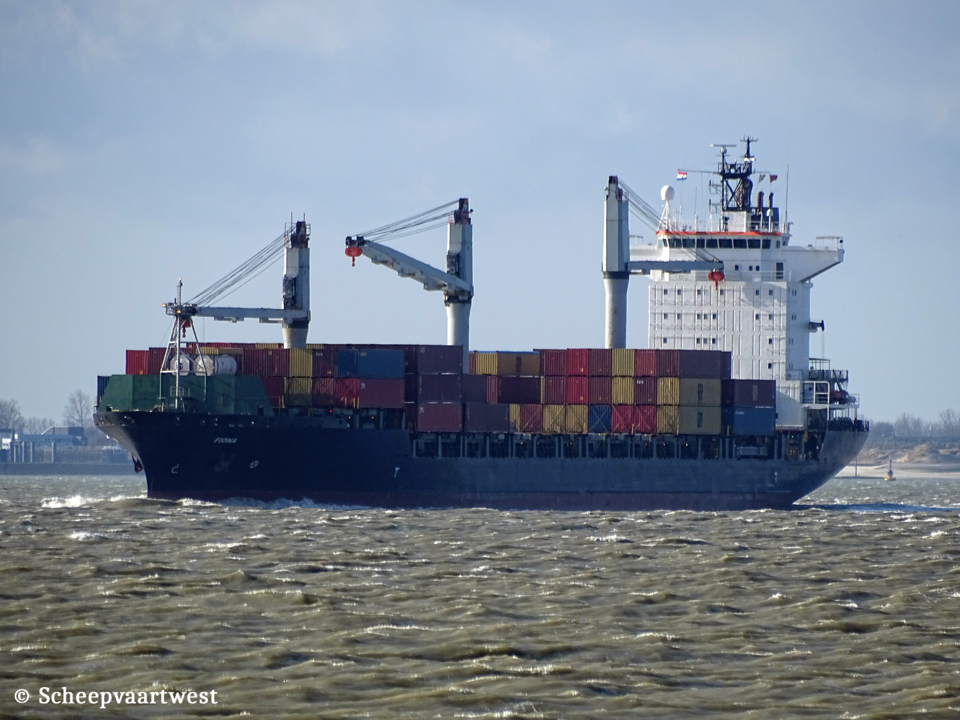

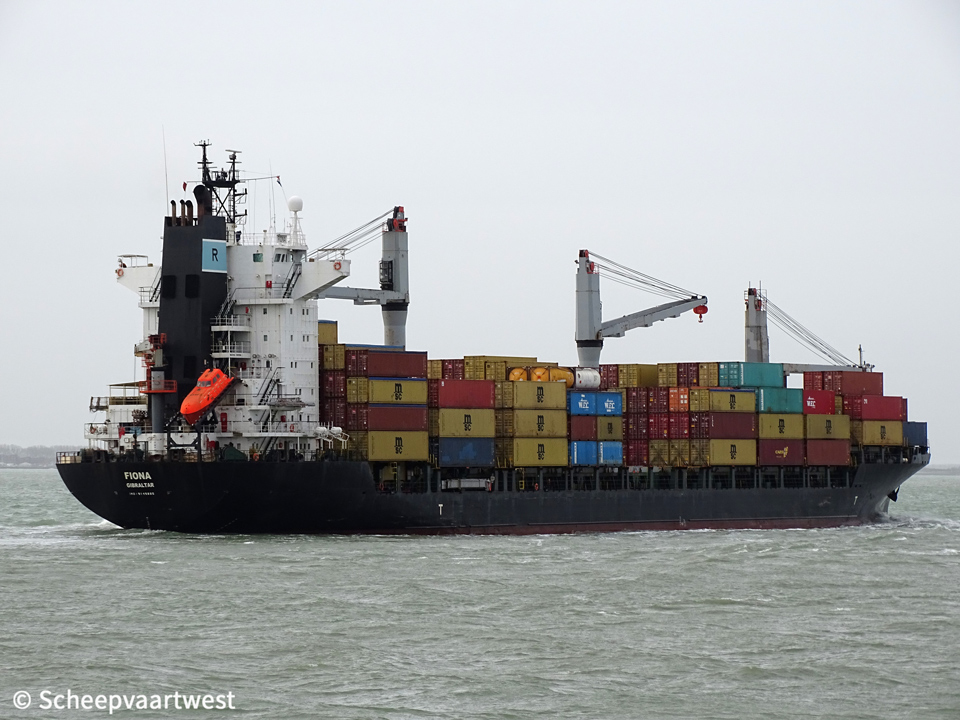

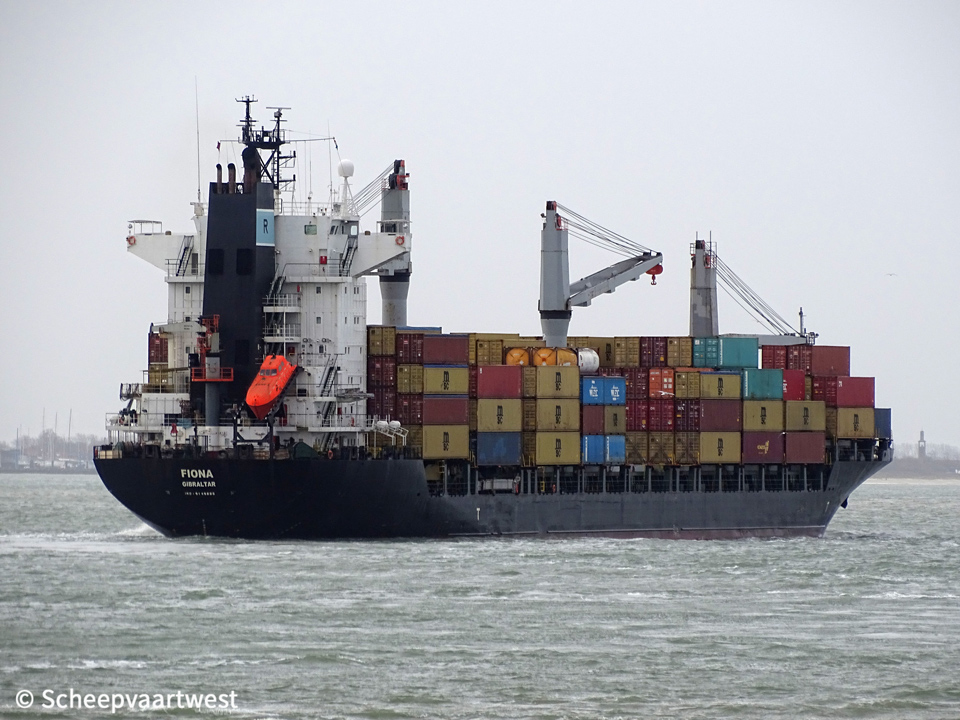

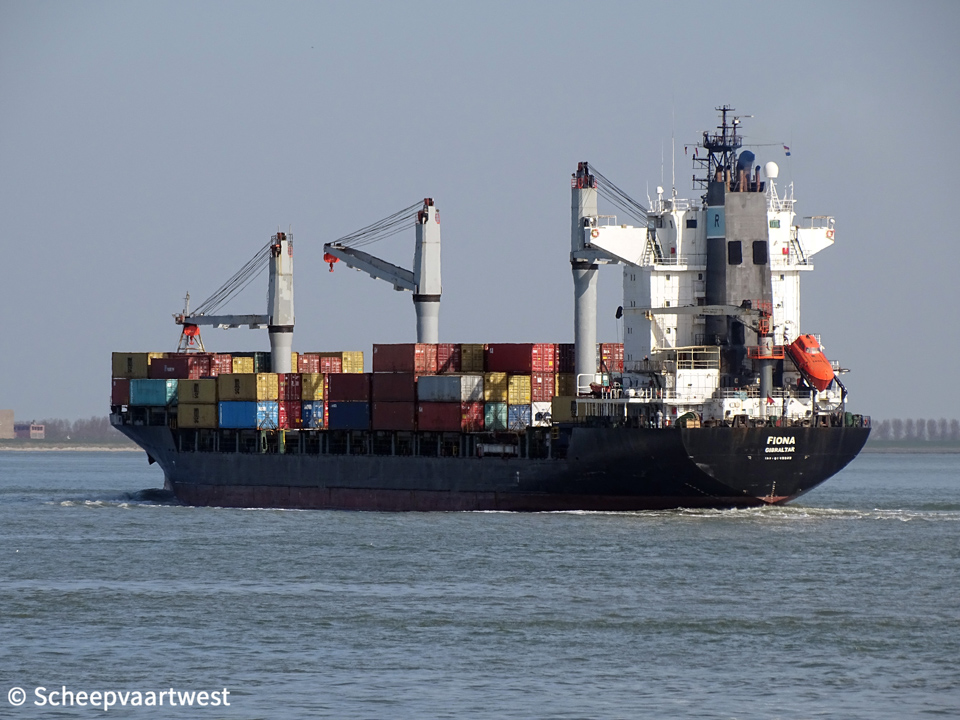

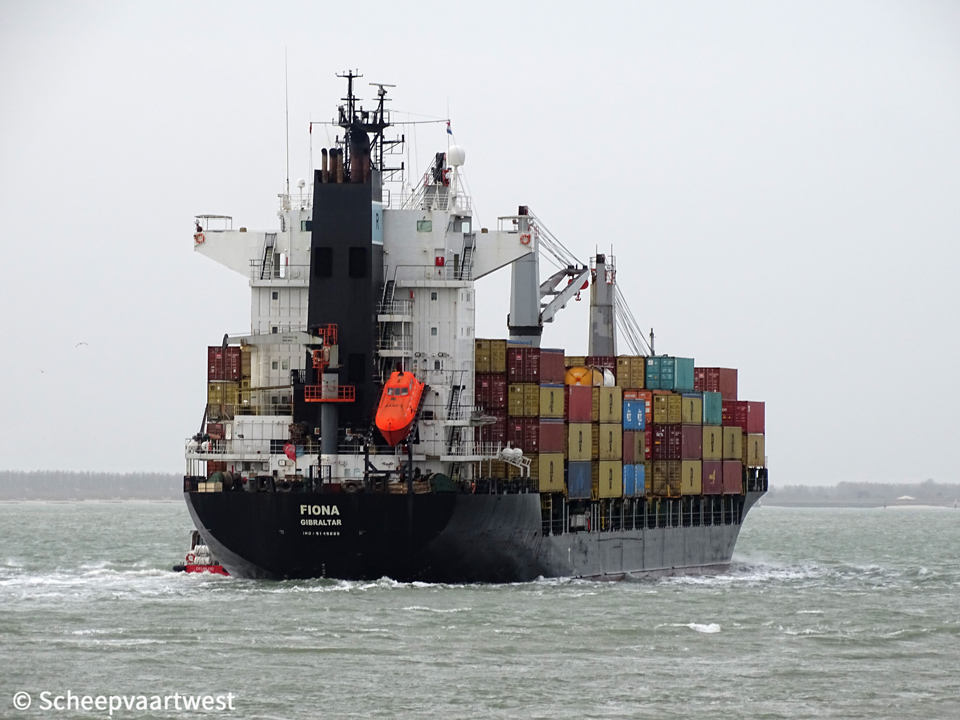

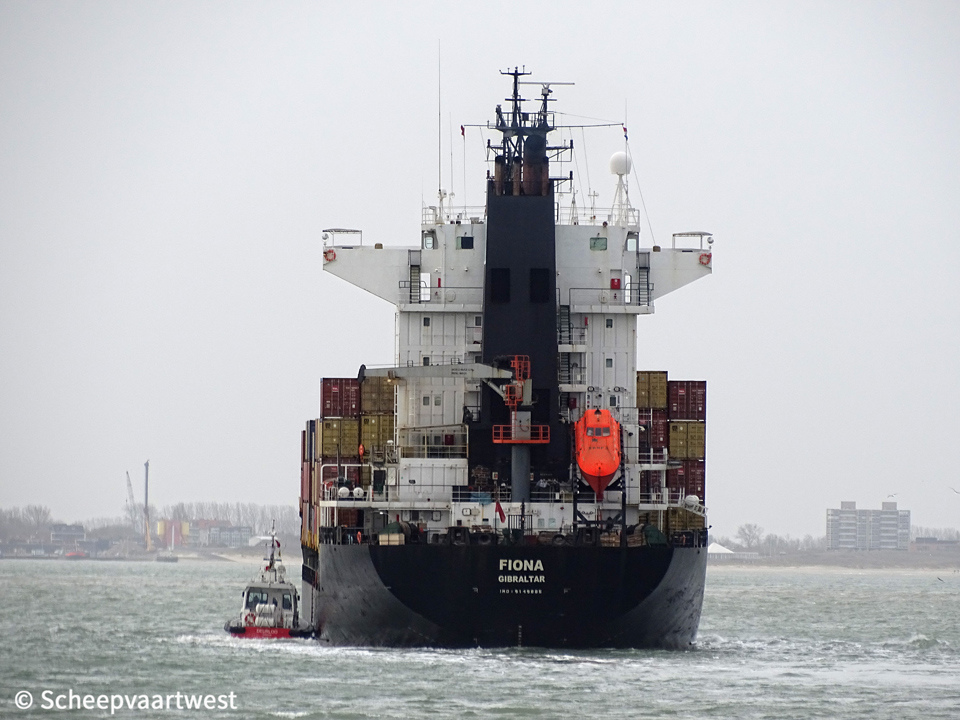

Westerschelde 22 October 2020 |
 |
 |
 |
 |
 |
 |
|||||
| Wetserschelde 21/02/20 | Wetserschelde 21/02/20 | Wetserschelde 21/02/20 | Wetserschelde 21/02/20 | Wetserschelde 21/02/20 | Wetserschelde 21/02/20 | |||||
 |
 |
|||||||||
| Westerschelde 07/04/20 | Westerschelde 13/02/20 | |||||||||
|
Name |
FIONA |
|
Previous names |
1998 Fiona Rickmers 10/1998 - 09/1999 Paranagua 09/1999 - 10/2001 Zim Sao Paulo I 10/2001 - 03/2002 La Hispaniola 03/2002 - 06/2002 Fiona Rickmers 06/2002 - 05/2003 Libra Barcelona 05/2003 - 02/2004 Fiona Rickmers 02/2004 - 04/2010 CMA CGM Licorne 04/2010 - 10/2011 CCNI Elbe 10/2011 - 10/2012 Fiona Rickmers |
|
Type |
Cellular containership |
|
IMO-number |
9149885 |
|
Call sign |
ZDNF3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
Germany Liberia |
|
GT |
16.801 t registered |
|
DWT |
Summer: 23.011 t |
|
NT |
8.672 t registered |
|
Number of 20ft containers |
In hold: 634 On deck: 1.094 Total: 1.728 |
|
Number of 40ft containers |
On hold: 305 + 24 TEU On deck: 502 + 48 TEU Total: 807 + 72 TEU |
|
Container capacity 14t |
1.124 |
|
Reefer capacity |
200 |
|
Length |
184,06 m overall 171,94 m between perpendiculars |
|
Breadth |
25,30 m extreme |
|
Draught |
Max: 9,89 m |
|
Keel to mast end |
49,20 m |
|
Depth |
13,50 m |
|
Speed |
Max: 19,6 knots |
|
Built |
1998 |
|
Keel laid |
17/06/1998 |
|
Launch date |
31/07/1998 |
|
Delivery dare |
07/10/1998 |
|
Builder |
Stocznia Szczecinska S.A. ul. Hutnicza 1 71-642 Szczecin (Stettin) Poland |
|
Yard number |
B170-I/16 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x Cegielski/Sulzer 6RTA62U - 2 stroke 6 cylinder 620 x 2.150 mm combustion engine 13.320 kW / 17.625 bhp at 113,0 rpm Build: 1998 Manufacturer: H. Cegielski-Poznan S.A |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - 10,0 bar Heating surface: 582,0 m² 1x Auxiliary boiler, oil/gas fired - 8,0 bar Heating surface: 44,7m² Builder: Thermal Engineering International Ltd. Greens Division |
|
Electric installations |
1x Plant 440/ 220 V - 1370 kVA 1x Plant 440/ 220 V - 1370 kVA 1x Plant 440/ 220 V - 1370 kVA 1x Plant 440 V - 138 kVA 1x Plant 24 V - 108 kVA |
|
Generators |
3x Cegielski/Sulzer 9S20H - 4 stroke 9 cylinder diesel engines each 1.170 kW at 900 rpm connected with generators each 1.370 kVA 450 V, 60 Hz |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 138 kVA |
|
Compressed air receivers |
2x Receivers each 6.300 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 500 litres - 16,5 bar 1x Receiver 45 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Zamech 590 kW, forward |
|
Number holds |
4 |
|
Cargo hold capacity |
Bale: 29.668 m³ Grain: 29.744 m³ |
|
Hold ventilation |
Mechanical axial-flow fans 6 air changes per hour (basis empty holds) |
|
Number of hatches |
9 Hatch 1: 12,48 x 13,00 m Hatch 2-9: 12,48 x 20,60 m |
|
Hatches type |
Pontoon type hatch covers |
|
Tank capacities |
IFO: 2.230 m³ MDO: 165 m³ Water ballast: 7.867 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 606,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Crane - SWL 2,5 t |
|
Cargo gear |
3x Deck cranes - SWL 45,0 t each |
|
Crew size |
24 |
|
ISM & commercial manager |
Regal Agencies Corporation 145, Filonos Street 185 36 Piraeus Greece |
|
Registered owner |
Sirius Navigation Ltd. Care of Regal Agencies Corp. 145, Filonos Street 185 36 Piraeus Greece |
|
Previous owners |
1998 - 2011 ms "Fiona Rickmers" Schiffahrts GmbH & Cie KG |
|
Latest data adjustment |
29 August 2021 |
