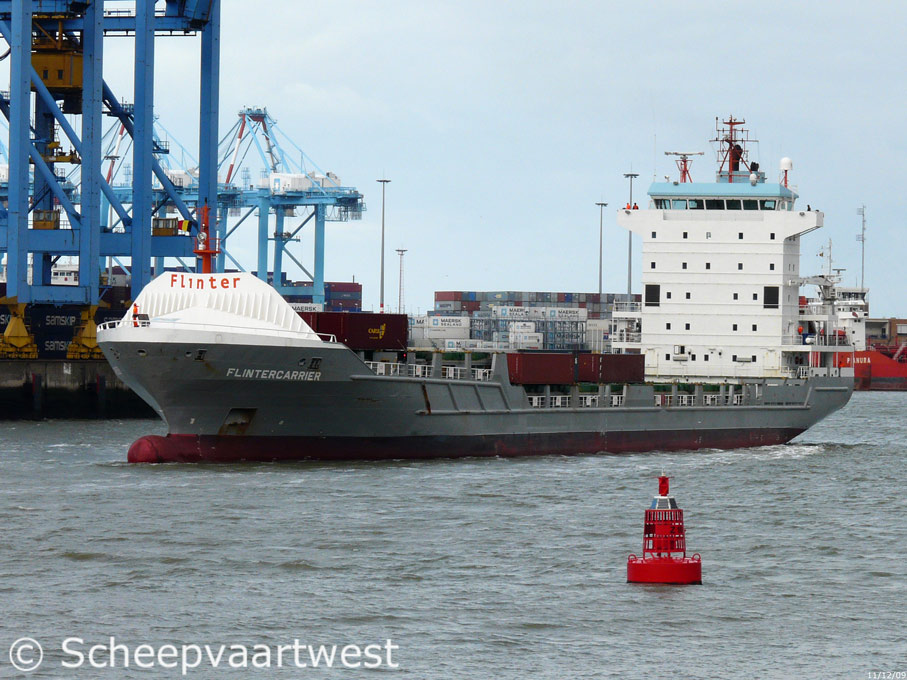

Flintercarrier 10
Zeebrugge 11 December 2009

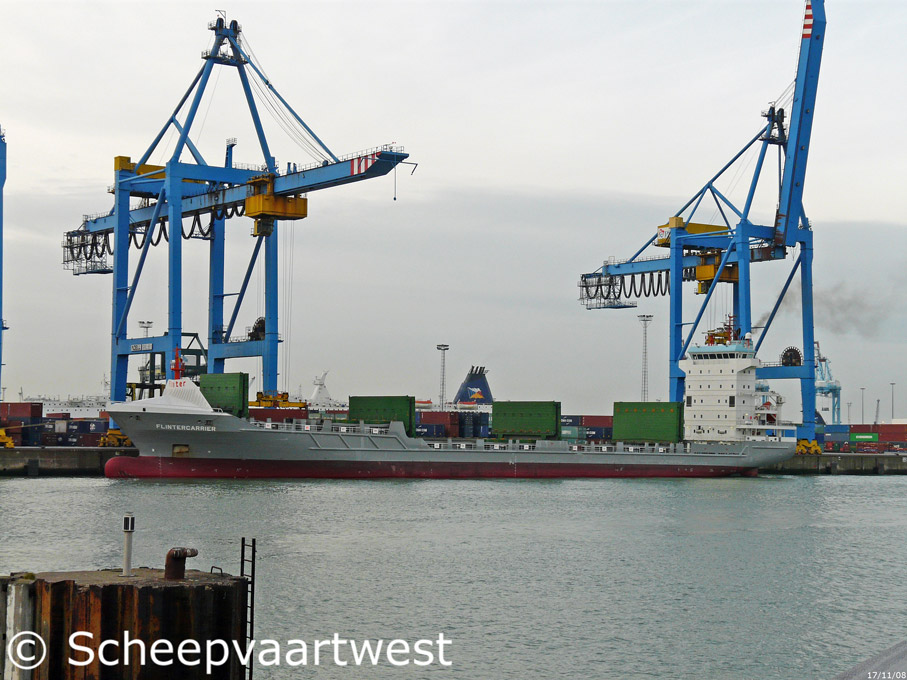

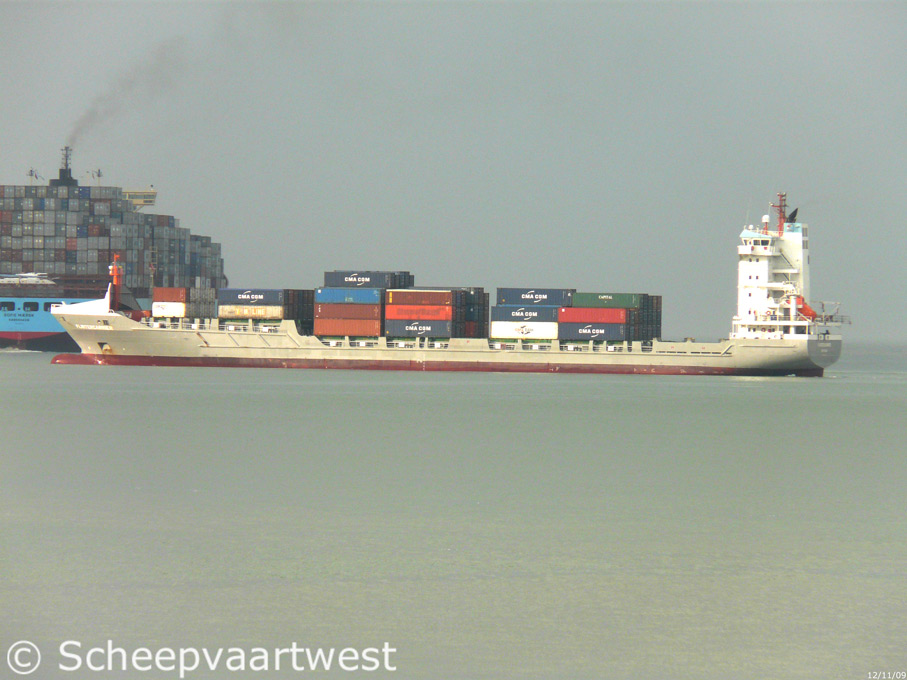

Flintercarrier 08   Flintercarrier 04
Zeebrugge 12/11/09 Zeebrugge 17/11/08



Name

FLINTERCARRIER

Previous name

2007 Fresena Sailor

Type

Cellular containership

IMO-number

9365960

Call sign

PHOR

Flag

The Netherlands

Port of registry

Rotterdam

GT

7.702 t

DWT

9.604 t

NT

3.614 t

Number of 20ft containers

809

Container capacity at 14t

514

Reefer plugs

Cargo hold: 80

Hatch: 120

Length

141,60 m overall

132,30 m between perpendiculars

Breadth

20,55 m

Draught

7,72 m

Air draft

40,00 m ballast

Freeboard

2.222 mm

Depth

9,50 m

Speed

18,7 knots

Built

2007

Builder casco

Nantong Mingde Shipyard Heavy Industry Stock Co.,Ltd.
Beijing
China

Builder of completed

IHDA Shipbuilding Service
Krimpen aan de IJssel
The Netherlands

Yard number

253

Hull material

steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä 8 L 46D - 8 cylinder 460 x 580 mm internal combustion engine- 9.240 kW / 12.554 hp at 500 rpm

Builder: Wärtsilä Italia S.p.A., Trieste - Italy

Electrical Propulsion Gen.

1x 1.250kW - 440 Volt

Number of screws

1x Screw propeller controllable pitch

Boilers

1x CHO 28,00 m² - 13,00 bar
1x CHR 90,15 m² - 10,00 bar

Shaft generator

1.000 kW

Generators

2x Main diesel generatorsets each 938 kVA - 750 kW - 1.034 hp

Bow thruster

750 kW

Number of holds

3

Dimensions:

Hold 1: 26,32 x 17,91 x 11,80 m

Hold 2: 27,08 x 17,91 x 9,00 m

Hold 3: 27,08 x 17,91 x 9,00 m

Fuel capacity

1487,2 m³

Cargo gear

Gearless

Crew

14

Manager

Flinter
Groningen
The Netherlands

Operator

CMA CGM

Owner

Rederij Flinter (Allships BV)

C.V. Scheepvaartonderneming Flintercarrier
