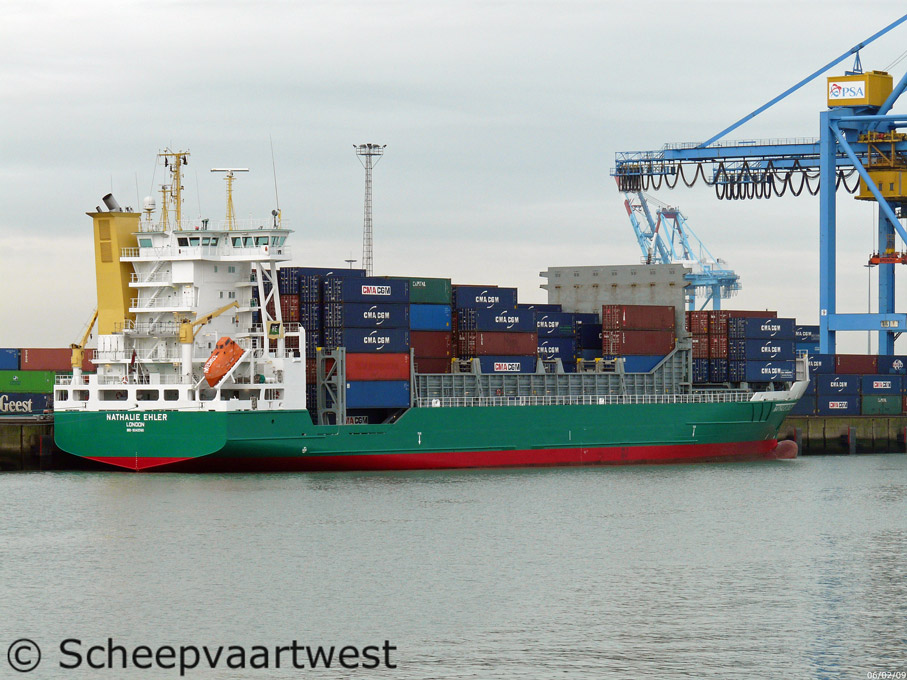

Nathalie Ehler 03
Zeebrugge 02 February 2009

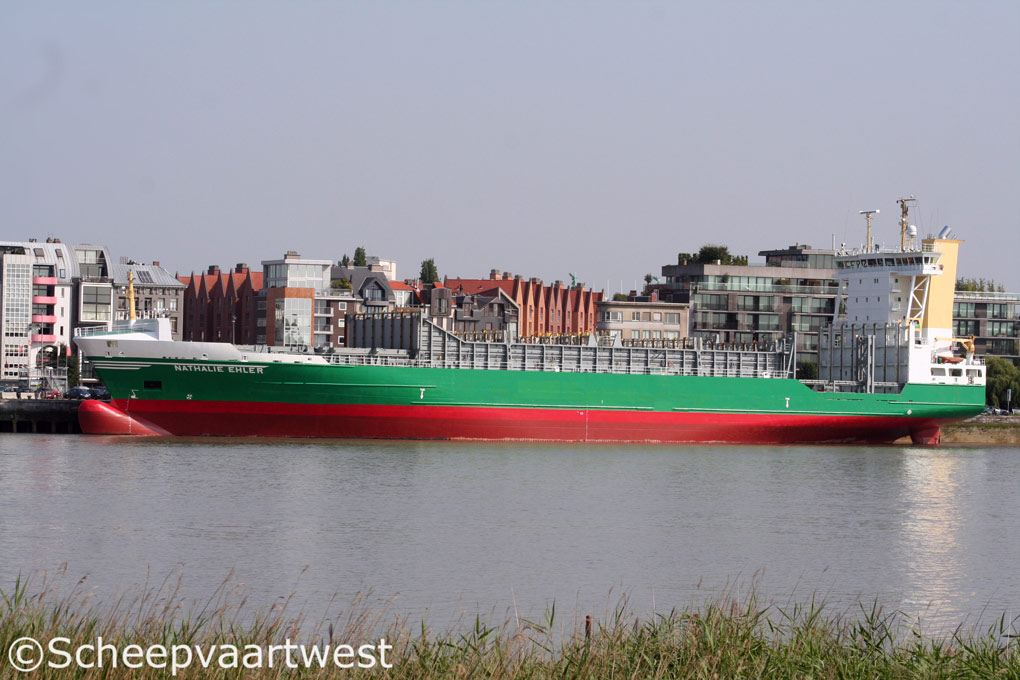

Nathalie Ehler 08
Antwerpen 05/07/11



Name

NATHALIE EHLER

Previous names

Launch as: Nathalie Ehler
2002-2004 Rachel Borchard
2004 Nathalie Ehler

Type

Containership

IMO-number

9242560

Call sign

MEMS3

Flag

United Kingdom

Previous flags

2004 Antigua & Barbuda

Port of registry

London

GT

9.981 t

DWT

11.367 t

NT

6.006 t

Number of 20ft containers

868

Container capacity 14t

600

Reefer Point

150 reefer 380 V / 50 Hz / 3 ph

Length

134,40 m overall
124,80 m between perpendiculars
125,08 m registered

Breadth

22,50 m over all

Draught

Summer: 8,71 m

Freeboard

2.600 mm

Depth

11,30 m

Speed

18,0 knots

Built

2002

Keel laid

12.12.2000

Launch date

09.02.2002

Date of completion

03.2002

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelde
Hamburg
Germany

Yard number

1144

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull
Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Mak 9M43 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 kW
Built: 2001
Builder: Caterpillar Motoren GmbH & Co. KG Kiel - Germany

Propeller

1x controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 52,0 m²
Year of manufacture: 2001
Manufacturer: PWT Prozesswärmeträgertechnik GmbH
1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 208,0 m²
Year of manufacture: 2001
Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Electric installations

1x 380/220 V - 1.250 kVA
1x 380 V - 1.625 kVA
1x 380 V - 290 kVA
1x 24 V - 520 Ah

Shaft generator

1.300 kW / 1.625 kVA

Main generators

2x Main diesel generatorsets each 625 kVA / 500 kW

Emergency generator

1x Diesel generatorset 290 kVA

Batteries

2x Batteries for Start emergency engine each 140 Ah

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

Bow thruster

1x Transverse thruster Brunvoll - 750 kW forward

Stern thruster

1x Transverse thruster Brunvoll - 450 kW aft

Tank capacities

Ballast water: 4.033 m³
Fuel oil: 920 m³

Anchor equipment

3x Anchors weight each 5.250 kg
Chain length: 577,50 m

Gear

Gearless

Crew

14

Manager

MS "NATHALIE EHLER" Heinz Ehler GmbH & Co. KG
Eschstr. 2
21762 Otterndorf
Federal Republic of Germany

Operator

CMA CGM

Owner

Nathalie Shipping Co. Ltd.
c/o MS "NATHALIE EHLER" Heinz Ehler GmbH & Co. KG
Eschstr. 2
21762 Otterndorf
Federal Republic of Germany
