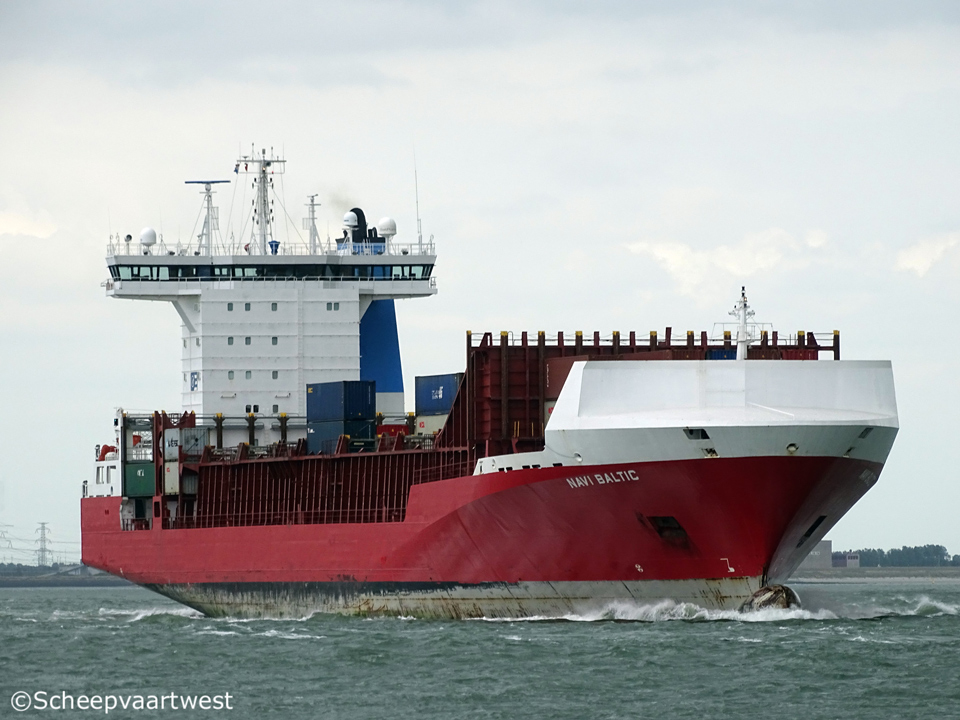

Navi Baltic 01

Westerschelde 23 August 2018

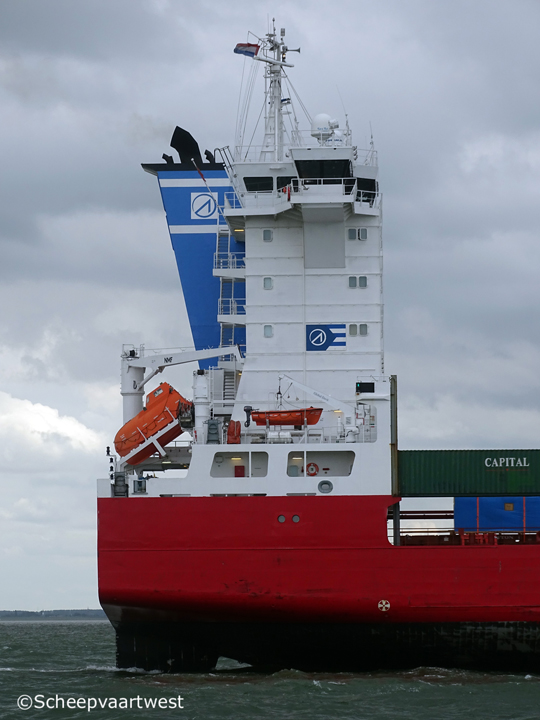

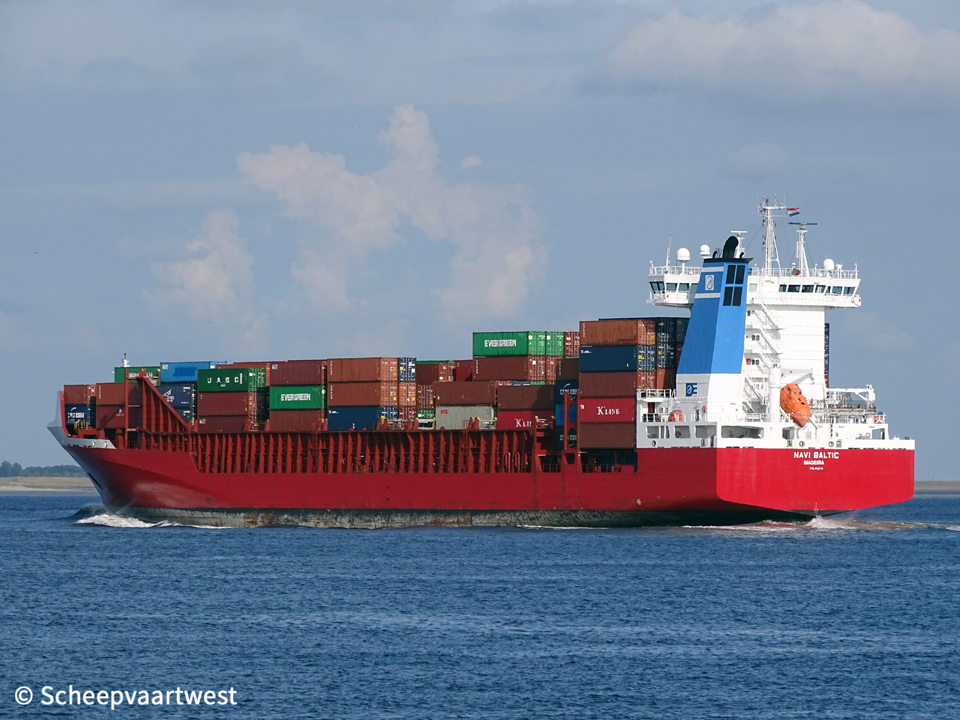

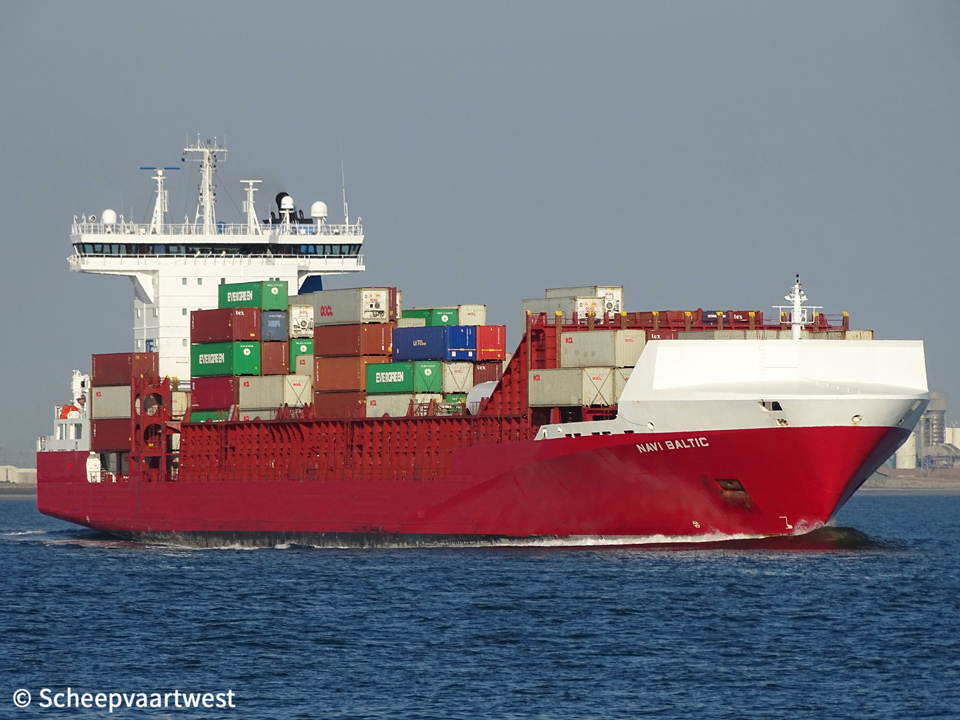

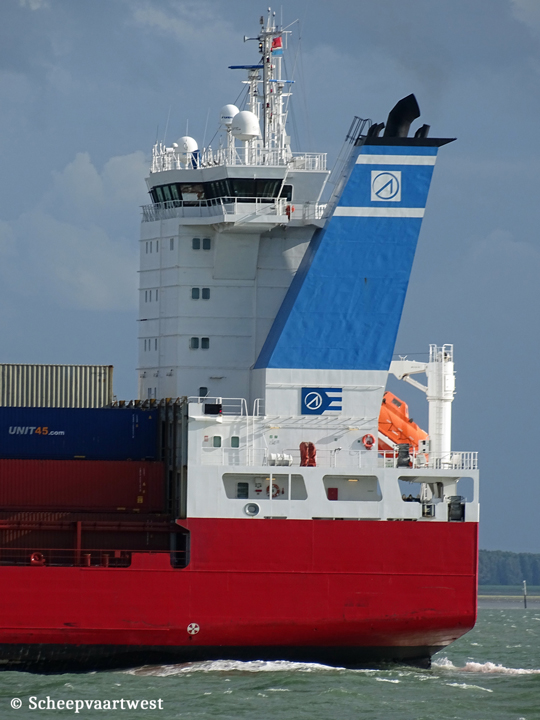

Navi Baltic 02   Navi Baltic 03   Navi Baltic 05   Navi Baltic IMO 9386718 06
WS 23/08/18 Westerschelde 23/07/18 Westerschelde 09/07/18   WS 18/08/17


Name

NAVI BALTIC

Type

Cellular containership - Semi-hatchless (open top) container ship

IMO-number

9386718

Call sign

CQYE

Flag

Portugal

Port of registry

Madeira

Previous flags

2013 - 2016 Cyprus, Limassol - call sign: 5BTT2

GT

17.488 t

DWT

Summer: 17.894 t

NT

8.125 t

Light ship

7.149 t

Number of 20ft containers

1.421

Number of 40ft containers

652

Container capacity 14t

1.040

Reefer plugs

300

Length

168,11 m overall

155,10 m between perpendicular

Breadth

26,80 m moulded

Draught

9,61 m

Keel to mast end

46,10 m

Freeboard

4.415 mm

Depth

14,00 m moulded

Speed

Max: 19,3 knots

Built

2009

Keel laid

21/12/2006

Launch date

09/04/2009

Date of completion

10/07/2009

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Hamburg

Germany

Yard number

1263

Hull material

Shipbuilding steel (standard)

Hull type

Single hull, double bottom

Watertight bulkheads

7

Continuous decks

1

Number of partial decks

6

Main engine

1x MAN-B&W 8L58/64 CD - 4 stroke single acting 8 cylinder 580 x 640 mm combustion engine 11.200 kW / 15.228 hp at 428 rpm

Propellers

1x Controllable pitch propeller aft at 121 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 51,0 m²

1 x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 220,0 m²

Electric installations

1x Plant 450 V - 1.360 kVA

1x Plant 450 V - 1.360 kVA

1x Plant 450 V - 1.360 kVA

1x Plant 450 V - 2.860 kVA

1x Plant 450 V - 220 kVA

1x Plant 24 V - 180 Ah

1x Plant 24 V - 180 Ah

Shaft generator

2.288 kW / 2.860 kVA

Generators

3x Caterpillar diesel generatorsets each 1.040 kW / 1.040 kVA

Emergency generator

1x Diesel generatorset 220 kVA

Batteries

2x Batteries for start emergency engine each 180 Ah

2x Batteries for UPS radio each 180 Ah

Compressed air receivers

2 x Receivers each 1.250 litres - 30,0 bar

1 x Receiver 10 litres - 30,0 bar

1 x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

1x Transverse thruster 750 kW, aft

Number of holds

3

Number of hatches

1

Tank capacities

Heavy fuel oil: 1.380 t

Fresh water: 135 t

Diesel oil: 260 t

Water ballast: 6.900 t

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

Gearless

Crew size

25

Commercial manager

Amisco Ltd.

Toenismaegi tn 9

10119 Tallinn

Estonia

ISM manager

Amisco Ship Management

Sala 6.2, 6 andar, Edificio Arriaga, Avenida Arriaga 42

B9000-064 Funchal

Madeira

Register owner

Navi Baltic Shipping Ltd.

Care of Amisco Ltd (Amisco AS)

Toenismaegi tn 9

10119 Tallinn

Estonia.

Latest data adjustment

24 June 2024
