Norfolk Express - IMO 9104902

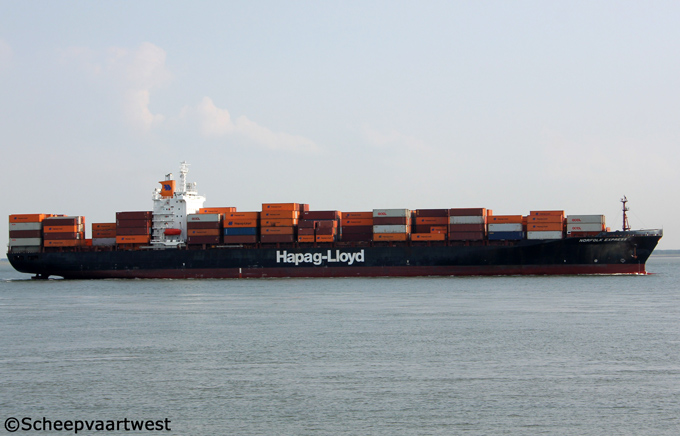

Westerschelde 20 August 2013

Name

NORFOLK EXPRESS

Previous names

1995-14.05.1996 Northern Majesty

14.05.1996-26.02.2002 Hong Kong Express

26.02.2002-19.07.2002 Norfolk Express

19.07.2002-07.07.2003 OOCL Atlantic

Type

Cellular containership

IMO-number

9104902

Call sign

ZCEI6

Flag

Bermuda

Port of registry

Hamilton

Previous flag

Germany - Hamburg - call sign: DGOS

GT

36.606 t

DWT

45.117 t

NT

20.779 t

Number of 20ft containers

3.607

Container capacity 14t

2.575

Reefer capacity

300

Length

244,94 m overall

230,78 m registered

Breadth

32,28 m

Draught

Max.: 12,00 m

Forecastle

12,87 m

Depth

19,00 m moulded

Speed

23,5 knots

Built

1995

Keel laid

03.05.1995

Launch date

13.08.1995

Date of completion

10.10.1995

Builder

Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan 682-792
Republic of Korea

Yard number

929

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 8RTA84C - 2 stroke 8 cylinder 840 x 2.400 mm diesel engine - 32.884 kW at 102,0 rpm

Year of manufacture: 1995

Manufacturer: Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan 682-792
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 55,0 m²

1x Exhaust gas heated - 8,0 bar

Heating surface: 230,0 m²

Year of manufacture: 1995

Manufacturer: Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installations

3x Plant 450/220 V - 1.313 kVA

1x Plant 450 V - 500 kVA

Generators

3x Wärtsilä 8R20 diesel engines each coupled with 3 generators each 1.313 kVA

Emergency generator

1x Diesel generatorsets 500 kVA

Compressed air receivers

2x Receivers each 15.500 litres - 30,0 bar

1x Receiver 150 litres - 7,0 bar

Bow thruster

1x Fixed pitch propeller LIPS - 1.200 kW, forward

Largest hatch

12,60 x 28,54 m

Tank capacities

Fuel: 4.180 m³

Ballast water: 12.628 m³

Anchor equipment

3x Anchors weight each 10.500 kg

Chain length: 660,00 m

Cargo gear

None

Crew size

31

Manager

Anglo-Eastern Ship Management Ltd.
23rd Floor, CEF Life Tower 248, Queen's Road East
Wanchai
Hong Kong Special Administration Region of P.R. China

Previous manager

Hapag-Lloyd
Ballindamm 25

D-20095 Hamburg

Germany

Operator

Hapag-Lloyd
Hamburg
Germany

Owner

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Latest data adjustment

15 March 2014
