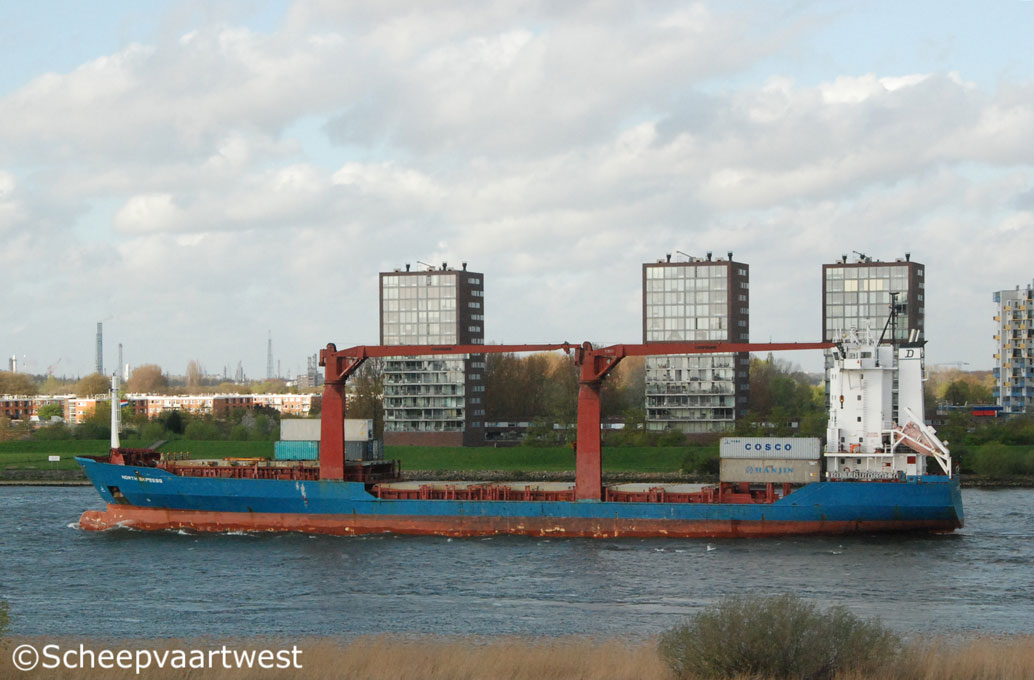

| Spijkenisse 12 April 2011 |
|
Name |
NORTH EXPRESS |
|
Previous names |
1997 Ingrid 1997 Maersk Mombasa 1998 Ingrid 2001 CTE Valencia 2006 Ingrid |
|
Type |
Containership |
|
IMO-number |
9141053 |
|
Official number |
3677 |
|
Call sign |
V2JA8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
5.549 t |
|
DWT |
7.060 t |
|
NT |
2.621 t |
|
Number of 20ft containers |
601 |
|
Container capacity 14t |
330 |
|
Reefer capacity |
80 |
|
Length |
117,97 m overall 110,04 m registered |
|
Breadth |
19,40 m registered |
|
Draught |
7,54 m |
|
Forecastle |
37,28 m |
|
Poop |
11,85 m |
|
Depth |
9,45 m moulded |
|
Speed |
17,0 knots |
|
Built |
1997 |
|
Keel laid |
07.08.1996 |
|
Launch date |
14.02.1997 |
|
Date of completion |
04.1997 |
|
Builder |
Detlef Hegemann Rolandwerft GmbH & Co. KG |
|
Yard number |
178 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 7S35MC - 2 stroke 7 cylinder 350 x 1.400 mm diesel engine - 5.000 kW at 170,0 rpm Reduced power: 2900 kW Year of manufacture: 1996 Manufacturer: MAN B&W Diesel A/S Frederikshavn |
|
Propellers |
1x Controllable pitch propeller - aft at 158,0 rpm |
|
Electric installation |
2x Plants each 440/220 V - 450 kVA 1x Plant 440 V - 595 kVA 1x Plant 440 V - 88 kVA |
|
Shaft generator |
1x 595 kVA |
|
Generators |
2x Main diesel generatorsets each 450 kVA |
|
Emergency generator |
1x Diesel generatorset 88 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 450 kW, forward |
|
Tank capacities |
Fuel oil: 578 m³ Ballast water: 2.640 m³ |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Cargo gear |
2x Cranes - SWL 40 t each |
|
Manager |
Kapitän Manfred Draxl Schiffahrts GmbH & Co. KG |
|
Registered owner |
Condra Schiffahrts GmbH & Co. KG MS "INGRID" |
