Malaga, Spain 04 November 2020 |
|
Name |

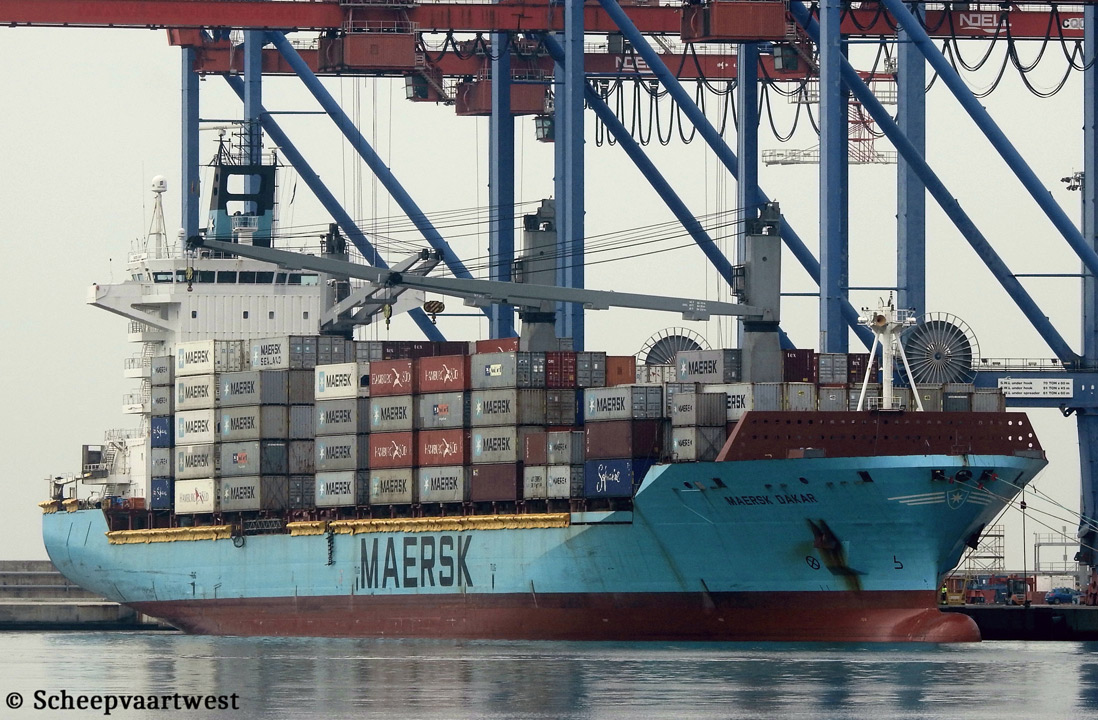

MAERSK DAKAR |
|
Previous names |
2004 - 09/2004 Frisia Lubeck 09/2004 - 01/2009 Libra Santa Catarina 01/2009 - 08/2009 Frisia Luebeck 18/2009 - 09/2009 Frisia Lubeck 09/2009 - 04/2011 CSAV Rio Lontue 04/2011 - 12/2017 Frisia Lubeck |
|
Type |
Cellular containership |
|
IMO-number |
9302449 |
|
Call sign |
9V5669 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2004 - 2017 Liberia, Monrovia - Call sign: A8IY7 |
|
GT |
25.406 t |
|
DWT |
Summer: 33.781 t |
|
NT |
12.538 t |
|
Displacement |
44.437 t |
|
Number of 20ft containers |
On deck: 1.496 In hold: 992 Total: 2.478 |
|
Number of 40ft containers |
On deck: 706 + 74 TEU Total: 1.188 + 102 TEU In hold: 482 + 28 TEU |
|
Container capacity 14t |
1.894 |
|
Reefer capacity |
400 |
|
Length |
207,51 m overall |
|
Breadth |
29,80 m moulded |
|
Draught |
Summer: 11,40 m |
|
Freeboard |
5.040 mm |
|
Depth |
16,40 m moulded |
|
Speed |
Max: 21,09 knots |
|
Built |
2004 |
|
Launch date |
24/07/2004 |
|
Date of completion |
09/09/2004 |
|
Builder |
Aker Mtw Werft GmbH Wendorferweg 5 Wismar, D-23966 Germany |
|
Yard number |
103 |
|
Hull material |
Steel |
|
Hull type |
Single hull - Double bottom |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7L70MC-C - 2 stroke 7 cylinder 700 x 2.260 mm combustion engine 21.770 kW at 108,0 rpm Manufacturer: Hitachi Zosen Corporation |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 19,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 482,0 m² |
|
Electric installations |
1x Plant 450/230 V - 1.131 kVA 3x Plant 450/230 V - 1.662,5 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 128 Ah 1x Plant 24 V - 180 Ah |
|
Generators |
3x MAN-B&W 7L21/31 main diesel generatorsets each 1.330 kW / 1.662,5 kVA at 900 rpm 1x MAN-B&W 5L21/31 main diesel generatorset 904,8 kW / 1.131 kVA at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 128 Ah |
|
Compressed air receivers |
2x Receivers each 8.000 litres - 30,0 bar 1x Receiver 1.000 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Brunvoll - 1.100 kW |
|
Number of holds |
5 |
|
Hold capacity |
49.018,50 m³ |
|
Hold ventilation |
2x Air changes per hour, mechanical and natural |
|
Number of hatches |
10 |
|
Hatch covers type |
Mac GREGOR pontoon type hatch covers, weathertight |
|
Tank capacities |
Fuel oil: 2.459 m³ (98%) MDO: 171 m³ (98%) Lub oil: 31,50 m³ Ballast: 10.700,00 m³ Fresh water: 200 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m |
|
Lifting equipment |
1x Engine room crane - SWL 5,0 t |
|
Cargo gear |
3x Deck cranes - SWL 45,0 t each |
|
Crew size |
23 |
|
Manager |
Maersk Line Copenhagen Denmark |
|
Registered owner |
A.P. Moller Singapore Pte Ltd. 200 Cantonment Road #10-00 Southpoint Singapore, 089763 Republic of Singapore |
|
Latest data adjustment |
08 November 2020 |
