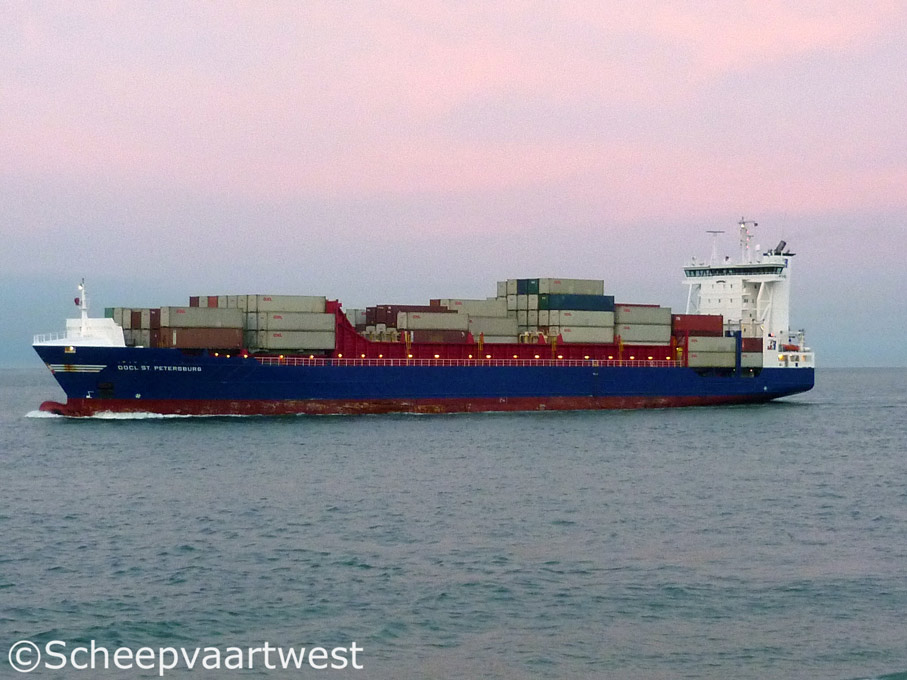

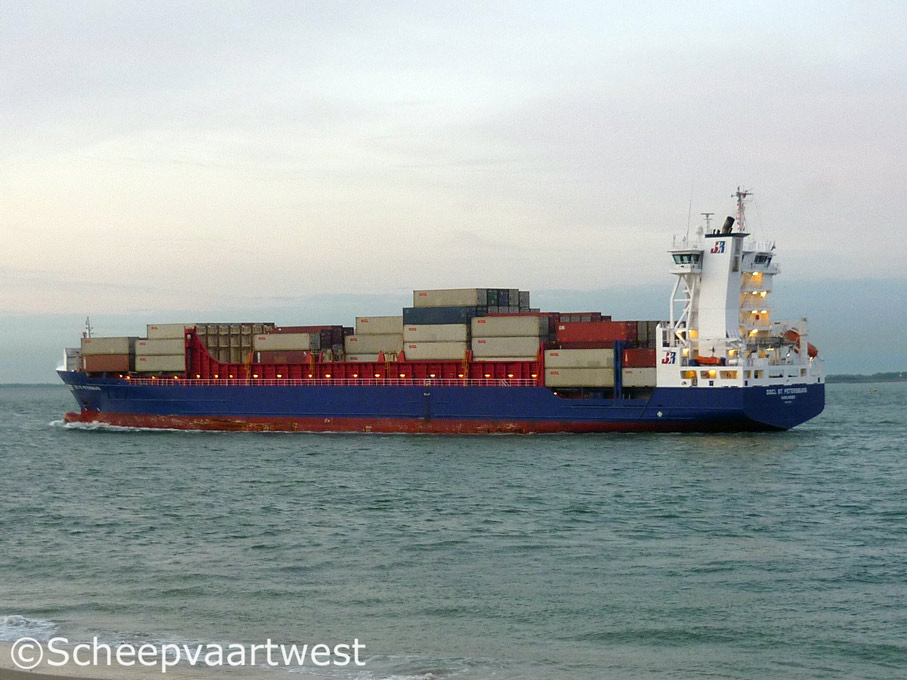

| Westerschelde 25 August 2011 |
 |
 |
|

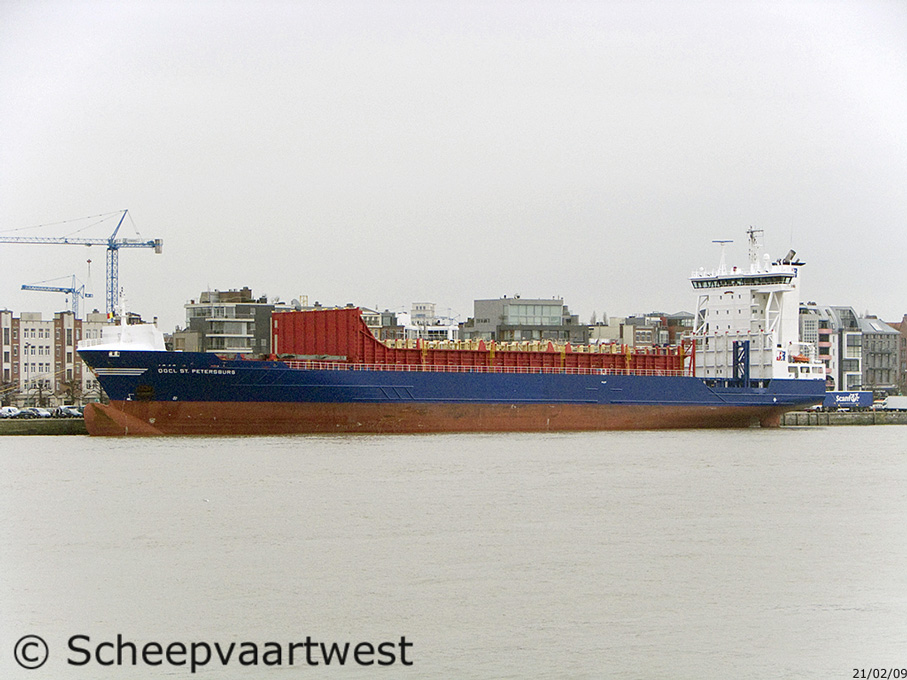

| Westerschelde 25/08/11 | Antwerpen 21/02/09 |
|
Name |
OOCL ST. PETERSBURG |
|
Previous name |
Launch as: 15.05.2005 Elan |
|
Type |
Containership |
|
IMO-number |
9315006 |
|
Call sign |
PHCZ |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
GT |
11.662 t |
|
DWT |
Summer: 11.284 t |
|
NT |
7.284 t |
|
TEU |
1008 |
|
Reefer point |
150 |
|
Length |
149,14 m overall 134,41 m between perpendiculars 139,79 m registered |
|
Breadth |
22,50 m registered |
|
Draught |
Summer: 8,71 m |
|
Forecastle |
91,39 m |
|
Poop |
9,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m |
|
Speed |
18,00 knots |
|
Built |
2005 |
|
Start build |
01.04.2004 |
|
Keel laid |
29.03.2004 |
|
Launch date |
25.02.2005 |
|
Completion |
24.05.2005 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelde |
|
Yard number |
1244 |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43 - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 kW Built: 2005 Builder:Caterpillar Motoren GmbH & Co. KG Kiel - Germany |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar 1x Thermal oil heater, exhaust gas heated - 10,0 bar |
|
Electric installations |
1x 400/230 V - 1.250 kVA 1x 400 V - 1.625 kVA 1x 400 V - 290 kVA 1x 24 V - 192 Ah 1x 24 V - 1.120 Ah |
|
Shaft generator |
1x 1.625 kVA / 1.300 kW |
|
Generators |
2x Main diesel generatorsets each 625 kVA / 534 kW |
|
Emergency + Harbour gen. |
1x Diesel generatorset 290 kVA |
|
Batteries |
4x Batteries for start emergency engine each 280 Ah 1x Battery for emergency lighting 192 Ah |
|
Thrusters |
1x Transverse thruster - 750 kW, forward 1x Transverse thruster - 450 kW, aft |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Manager |
JR Shipping B.V. |
|
Operator |
OOCL - Orient Overseas Container Line |
|
Owner |
MS "ELAN" Scheepvaartbedrijf C.V. |
