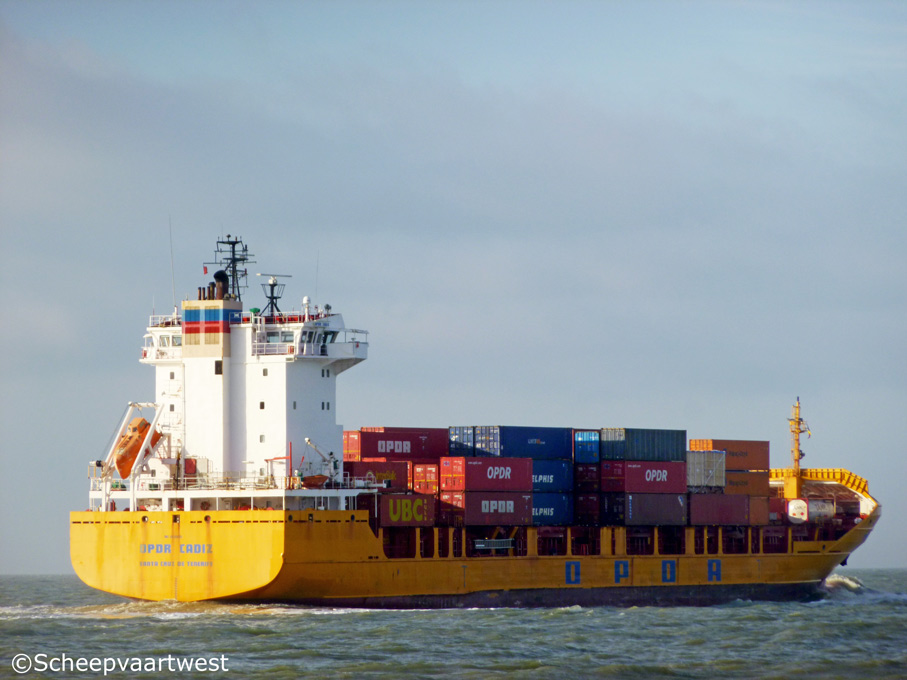

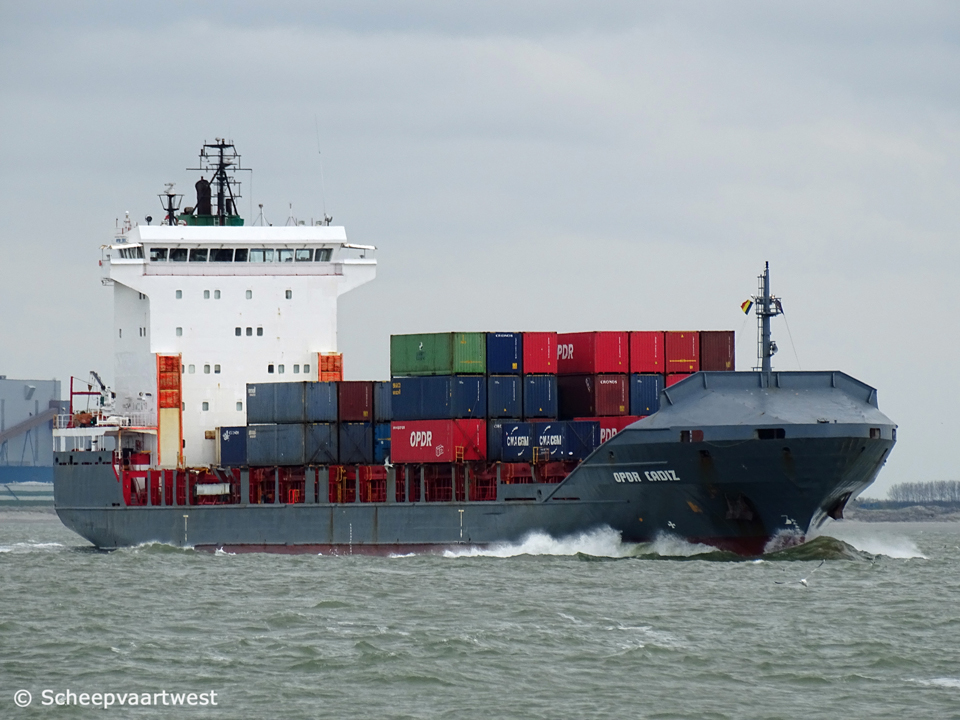

Westerschelde 16 April 2016 |
 |
|
| Westerschelde 15/12/13 | |
|
Name |
OPDR CADIZ |
|
Type |
Containership |
|
IMO-number |
9216858 |
|
Call sign |
CQCM |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2003 - 2015 Spain, Santa Cruz De Tenerife - Call sign: EBWM |
|
GT |
7.360 |
|
DWT |
Summer: 8.394 |
|
NT |
3.085 t |
|
Number of 20ft containers |
698 |
|
Container capacity 14t |
444 |
|
Reefer plugs |
On deck: 81 In hold: 35 Total: 116 |
|
Length |
127,94 m overall 117,50 m between perpendiculars |
|
Breadth |
21,60 m extreme |
|
Draught |
7,40 m |
|
Forecastle |
8,53 m |
|
Poop |
9,87 m |
|
Freeboard |
3.411 mm |
|
Depth |
10,80 m |
|
Speed |
Max.: 16,5 knots Service: 15,5 knots |
|
Built |
2003 |
|
Keel laid |
04/06/2001 |
|
Launch date |
16/05/2002 |
|
Date of completion |
23/03/2003 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. Mawei China |
|
Yard number |
VMW437-3 |
|
Hull material |
Steel |
|
Watertight bulkhead |
5 |
|
Continuous decks |
1 |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Main engine |
1x MaK 7M43 - 4 stroke single acting 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG – Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 135 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 35,8 m² 1x Thermal oil heater, exhaust heated - 10,0 bar Heating surface: 87,2 m² Manufacturer: PWT Prozesswärmeträgertechnik GmbH |
|
Shaft generator |
1x 1.000 kW / 1.250 kVA |
|
Generators |
3x Yanmar 6N18AL-DV diesel generatorsets each 450 kW / 563 kVA |
|
Emergency generator |
1x MAN D2866E diesel generatorset 156 kVA |
|
Batteries |
1x Battery for automation, 120 Ah 1x Battery for UPS radio 170 Ah 1x Battery for start emergency engine 80 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 6.410 m³ |
|
Number of hatches |
4 |
|
Tank capacities |
Fuel: 672 m³ Ballast: 3.300,7 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 550,00 m Diameter: 52 mm |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG |
|
Previous managers |
2003 - 2015 Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG 2015 - 2015 Bernhard Schulte GmbH & Co. KG |
|
Registered owner |
Perses Vermögensverwaltungs GmbH & Co. KG Vorsetzen 54 20459 Hamburg Germany |
|
Previous owners |
2003 - 2003 Velazques Shipping Co. Ltd. 2003 - 2003 Bernhard Schulte Canarias, S.A.U. 2003 - 2015 Oldenburg-Portugiesische Dampfschiffs-Rhederei GmbH 2015 - 2015 Bernhard Schulte GmbH & Co. KG |
|
Renamed |
2018 Hai Su 2 Hong Kong, China - Call sign: VRQU3 2020 Tang Shan Gang Ji 1 Hong Kong, China - Call sign: VRQU3 Owner: Hede Hongkong International Shipping Limited Operator: Tosco Keymax International Ship Management Co., Ltd. |
|
Latest data adjustment |
11 July 2023 |
