Regina J

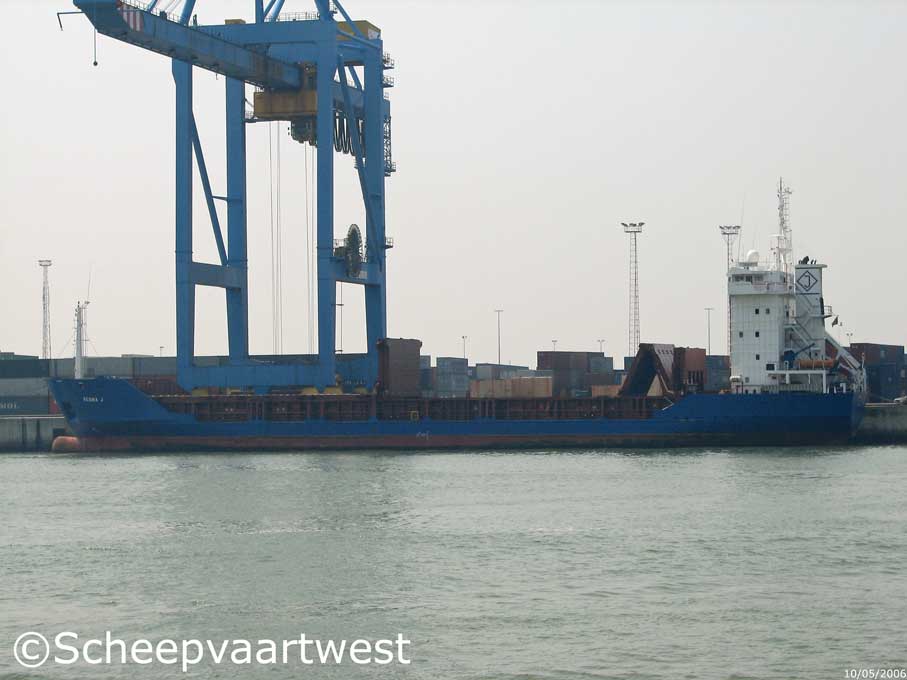

Zeebrugge 10 May 2006



Name

REGINA J

Previous names

Regina J

Portlink Hunter

Regina J

Bremer Handel

Regina J

Type

Multi purpose container vessel

IMO-number

9071064

Call sign

V2AC3

Flag

Antigua & Barbuda

Port of registry

St. Johns

GT

3.806 t

DWT

4.766 t

NT

1.981 t

Number of 20ft containers

In hold: 127

on deck: 268

Total: 395

Container capacity 14t

240

Reefer Point

50

Length

100,67 m overall

93,37 m registered

Breadth

16,50 m registered

Draught

5,898 m

Forecastle

9,52 m

Poop

10,90 m

Depth

7,50 m moulded

Speed

15,0 knots

Line

Xpress

Built

1994

Keel laid

02.09.1993

Launch date

12.02.1994

Date of completion

04.1994

Builder

ENVC - Estaleiros Navais de Viana do Castelo, S.A.
Avenida Praia do Norte
4901-851 Viana do Castelo
Portugal

Yard Number

188

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x Mak 9 M 453 C - 4 stroke single acting 9 cylinder 320 x 120 mm diesel engine - 3.300 kW at 600 rpm

Year of manufacture: 1993

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 55,0 m²

Year of manufacture: 1993

Manufacturer: Feenstra's Techn. Industrie Dalfsen B.V.
Wilhelminastr. 66
7721 CJ Dalfsen
The Netherlands

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 15,2 m²

Year of manufacture: 1993

Manufacturer: Apparate- und Kesselbau AKB GmbH
Baiertaler Str. 98
69168 Wiesloch
Federal Republic of Germany

Electric installations

1x Plant 400/220 V - 600 kVA

1x Plant 400 V - 625 kVA

1x Plant 400 V - 300 kVA

Shaft generator

1x 625 kVA

Generators

2x Main diesel generatorsets each 300 kVA - 380/220 V 50 Hz

Emergency generator

1x Diesel generatorset 300 kVA- 380/220 V 50 Hz

Compressed air receivers

2x Receivers, each 250 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

1x Receiver 100 litres - 15,0 bar

1x Receiver 100 litres - 7,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 250 kW, forward

Number of holds

2

Hold 1: 25,60 x 13,20 x 9,00 m

Hold 2: 32,00 x 13,20 x 9,00 m

Number of hatches

2

Hatch 1: 32,50 x 13,20 m

hatch 2: 26,00 x 13,20 m

Hold capacity

Grain: 6.803 m³

Anchor equipment

3x Anchors weight each 3.060 kg

Chain length: 495,00 m

Tank capacities

Fuel oil: 298 m³

Ballast water: 1.670 m³

Ventilation

6 fold basic empty holds

Gear

Gearless

Owner

Jüngerhans & Co. Reederei
Boschstraβe 31
49733 Haren (Ems)
Germany

Renamed

2006 Hanseatic Swan
