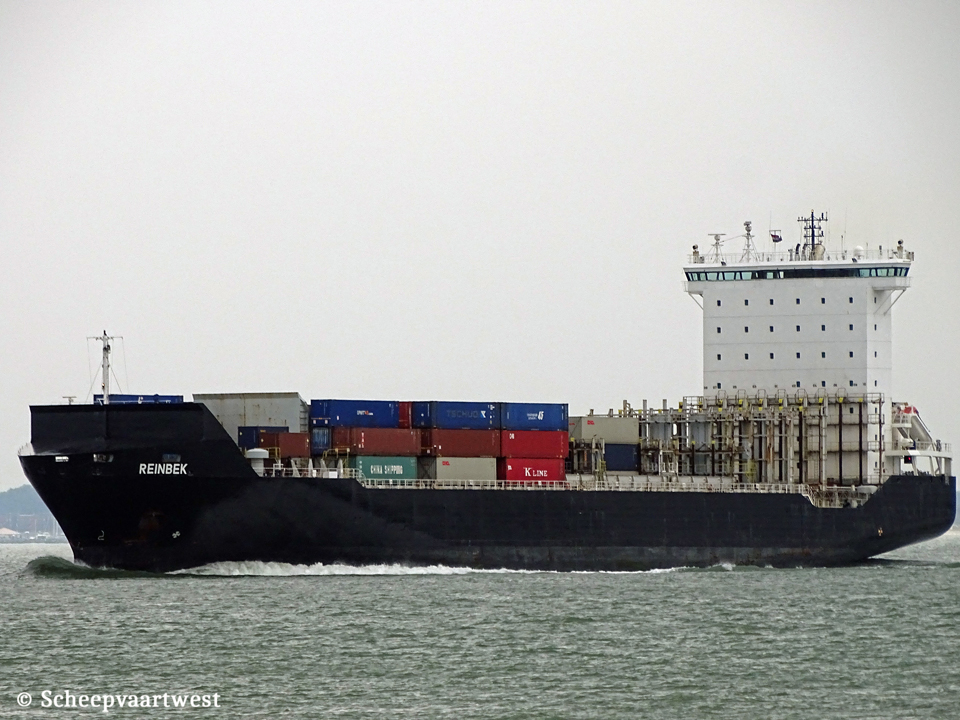

Westerschelde 22 December 2015 |
 |
 |
 |
 |
 |
 |
|||||

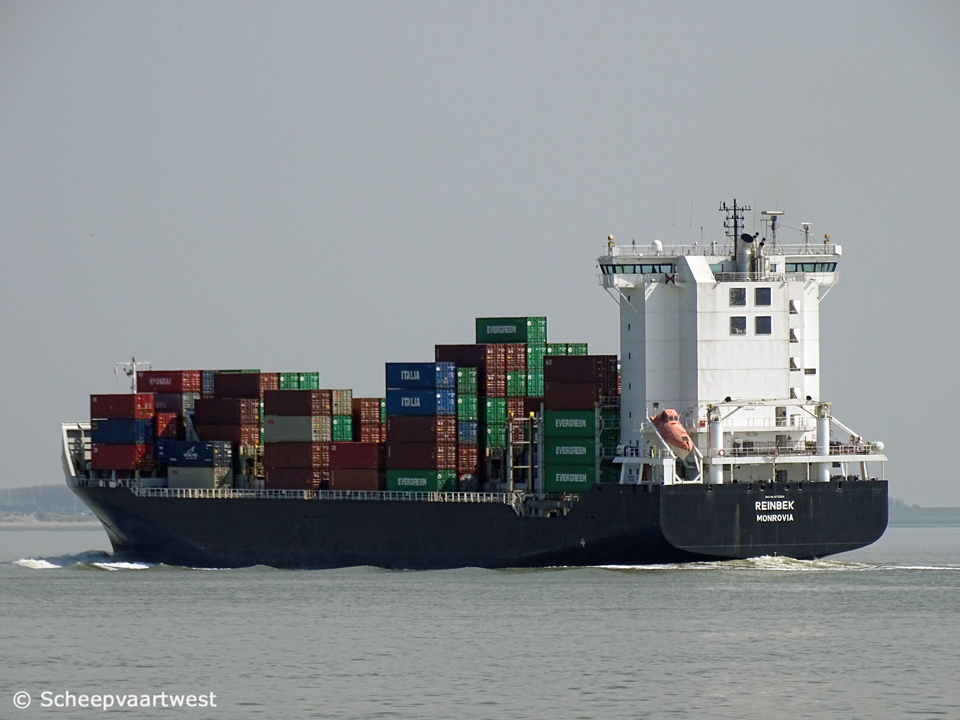

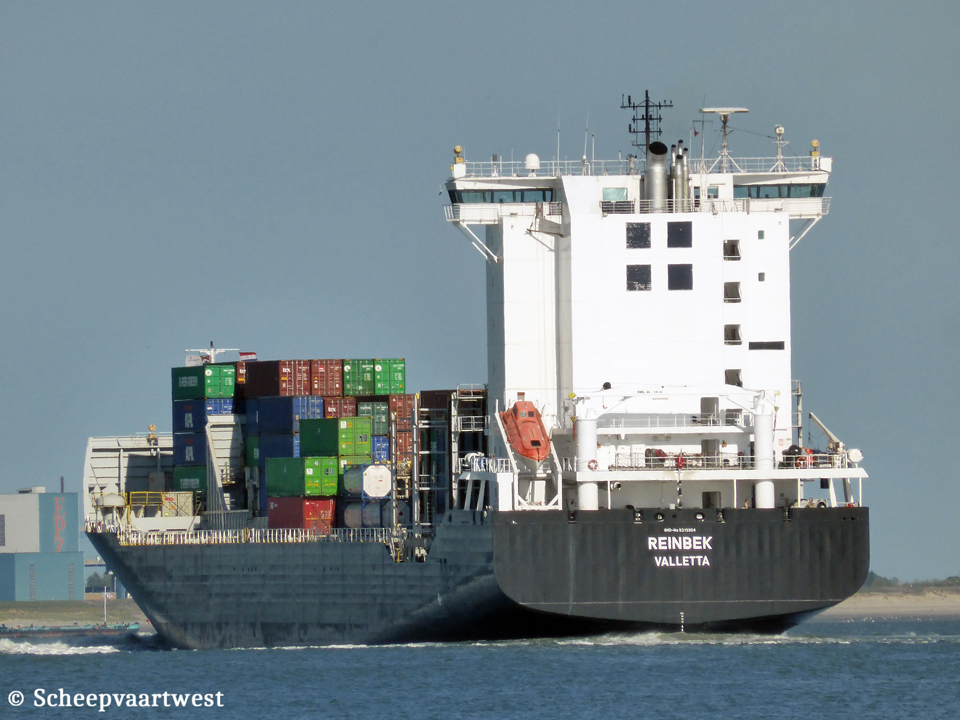

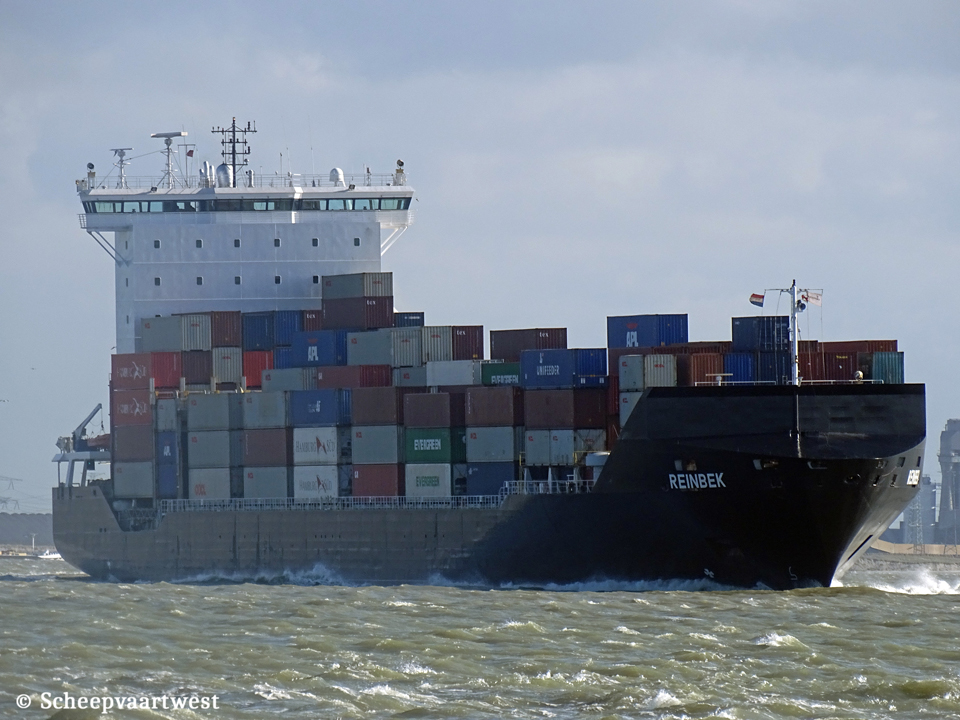

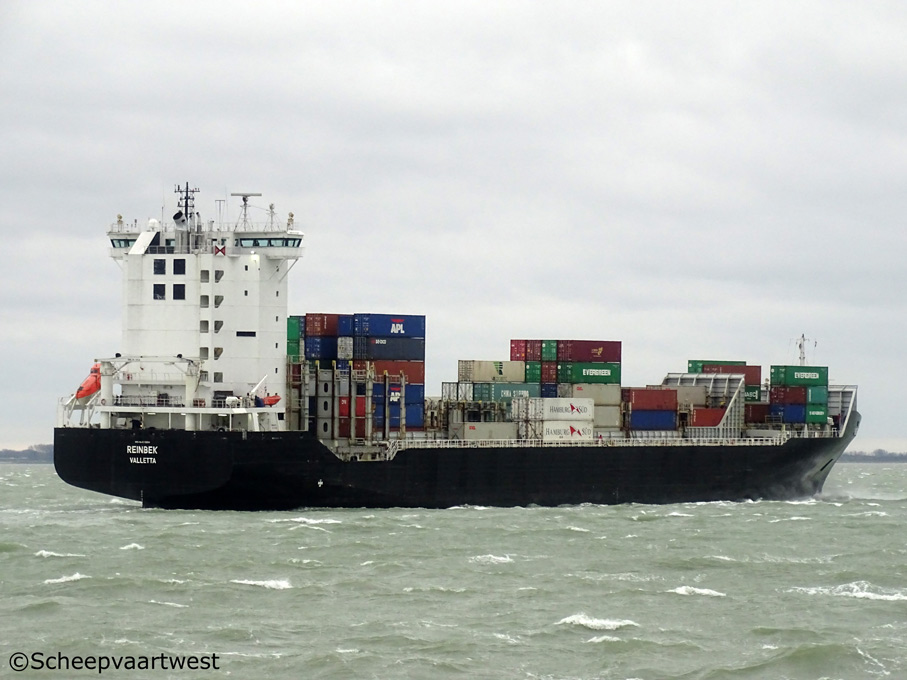

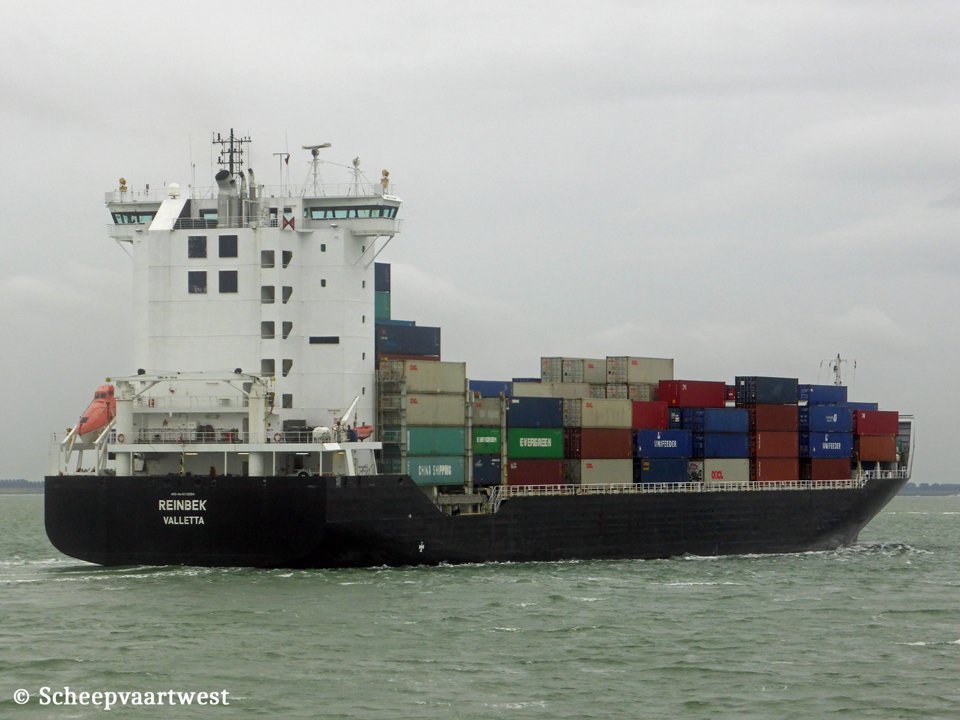

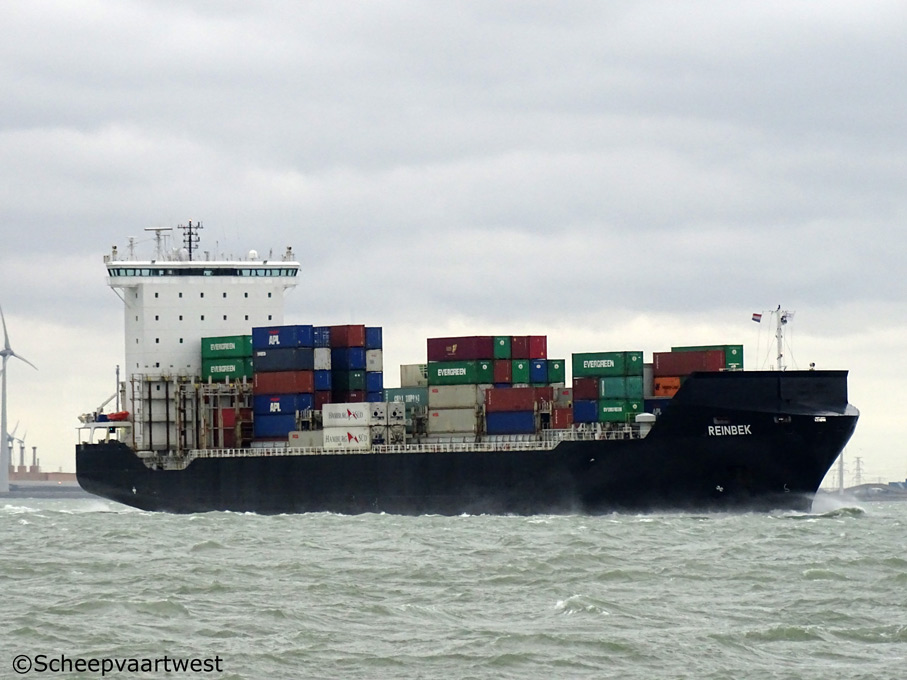

| Westerschelde 22/12/15 | Westerschelde 14/04/16 | Westerschelde 07/02/16 | Westerschelde 27/08/15 | Westerschelde 13/05/15 | Westerschelde 10/08/17 | |||||
|
Name |
REINBEK |
|
Previous names |
2005 built as: Reinbek 03/2005 - 04/2006 Cast Prestige |
|
Type |
Cellular containership |
|
IMO-number |
9313204 |
|
Call sign |
D5KV3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2005 - 2006 Germany 2006 - 2010 United Kingdom 2010 - 2014 Liberia, Monrovia - Call sign: A8VH3 2014 - 2016 Malta, Valletta - Call sign: 9HA3566 |
|
GT |
16.324 t |
|
DWT |
Summer: 15.952 t |
|
NT |
6.450 t |
|
Number of 20ft containers |
In hold: 221 On deck: 1.417 Total: 1.638 |
|
Container capacity 14t |
1.100 |
|
Reefer capacity |
312 |
|
Length |
169,00 m overall 157,88 m between perpendiculars |
|
Breadth |
27,23 m extreme |
|
Draught |
9,20 m |
|
Forecastle |
35,20 m |
|
Bridge |
92,00 m |
|
Poop |
32,80 m |
|
Freeboard |
3.810 mm |
|
Depth |
15,10 m |
|
Speed |
20,0 knots |
|
Built |
2005 |
|
Keel laid |
14/05/2004 |
|
Launch date |
30/10/2004 |
|
Date of completion |
10/03/2005 |
|
Builder |
Jos. L. Meyer GmbH Industriegebiet Süd 26871 Papenburg Federal Republic of Germany |
|
Yard number |
S672 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S50MC-C - 2 stroke single acting 8 cylinder 500 x 2.000 combustion engine 12.640 kW / 17.185 hp at 127,0 rpm Year of manufacture: 2004 Manufacturer: MAN Diesel A/S Teglholmsgade 41 2450 Copenhagen SV |
|
Propellers |
1x Controllable pitch propeller - aft at 127,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 56,4 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 405,2 m² Year of manufacture: 2004 Manufacturer: VKK Standardkessel Köthen GmbH Am Holländerweg 21-23 06366 Köthen Federal Republic of Germany |
|
Electric installations |
3x Plants 400 V - 1.000 kVA 1x Plant 400 V - 2.250 kVA 1x Plant 400 V - 625 kVA 2x Plants 24 V - 115 Ah |
|
Shaft generator |
1x 1.800 kW / 450/230 Volt |
|
Generators |
3x Cummins KTA 38-D(M) - 4 stroke 12cylinder 159 x 159 mm diesel engine each Mcr 850 kW connected with generators each 1.000 kVA / 800 kW |
|
Emergency generator |
1x Cummins VTA 28-D(M) diesel generatorset 625 kVA |
|
Batteries |
2x Batteries for UPS radio each 115 Ah 2x Batteries for start emergency engine each 115 Ah |
|
Compressed air receivers |
2x Receivers each 3.000 litres - 33,0 bar 1x Receiver 30 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 950 kW / 1.292 bhp, forward 1x Transverse thruster - 650 kW / 884 bhp, aft |
|
Tank capacities |
Ballast: 5.710 m³ |
|
Anchor equipment |
Length: 634,80 m Diameter: 70 mm |
|
Cargo gear |
Gearless |
|
Manager |
RHL Reederei Hamburger Lloyd GmbH & Co. KG Raboisen 38 20095 Hamburg Federal Republic of Germany |
|
Previous managers |
2005 - 2010 RHL Hamburger Lloyd Tanker GmbH & Co. KG |
|
Registered owner |
Reederei MS "REINBEK" GmbH & Co. KG |
|
Previous owners |
2005 - 2005 Schiffahrtsgesellschaft MS "REINBEK" mbH & Co. KG |
|
Renamed |
2017 Baltic Fulmar Cyprus, Limasol - Call sign: 5BSL4 Manager:Bernhard Schulte Owner: Efolium Co., Ltd. 06/2023 Newnew Polar Bear Hong Kong, China - Call sign: VRVQ4 Owner: Efolium Co., Ltd. Manager: Eastaway Ship Management Pte Ltd., Republic of Singapore |
|
Latest data adjustment |
09 July 2023 |
