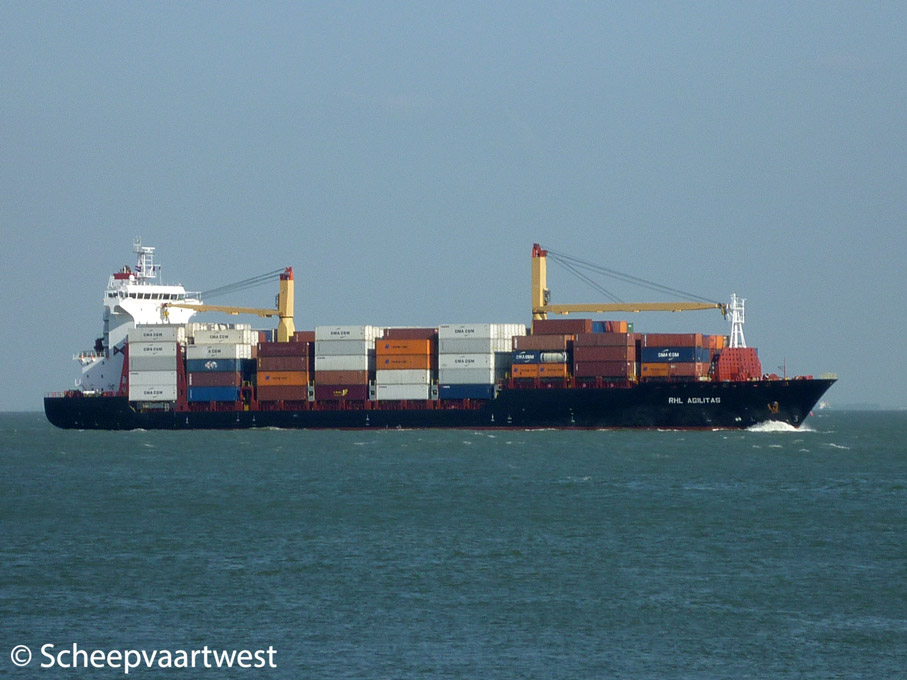

RHL Agilitas 01
Westerschelde 14 may 2012



Name

RHL AGILITAS

Previous names

Wilhelm Busch

Type

Containership

IMO-number

9373486

Call sign

A8ND5

Flag

Liberia

Port of registry

Monrovia

GT

18.480 t

DWT

23.664 t

NT

10.277 t

Number of 20ft containers

1.732

Container capacity 14t

1.275

Reefer plug

379

Length

176,88 m overall

167,45 m registered

Breadth

27,40 m registered

Draught

10,90 m

Forecastle

57,40 m

Poop

15,93 m

Depth

14,30 m moulded

Speed

20,6 knots

Built

2007

Keel laid

06.06.2007

Launch date

16.08.2007

Date of completion

27.09.2007

Builder

Guangzhou Wenchong Shipyard Co., Ltd.
1, Wenchuan Road Hongshan Street, Huangpu District
Guangzhou ,510725 Guangdong
People's Republic of China

Yard number

GWS337

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W 7 S60MC-C Mk8 - 2 stroke 7 cylinder 600 x 2.400 mm diesel engine - 16.660 kW at 105,0 rpm

Year of manufacture: 2007

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller (keyless) - aft at 105,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 61,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 380,0 m²

Year of manufacture: 2007

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

3x Plants each 450/230 V with 1.900 kVA

1x Plant 450 V - 212,5 kVA

1x Plant 24 V - 56 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 200 Ah

Generators

3x MAN-B&W 8L21/31H main diesel generatorsets each 1.900 kVA / 1.520 kW

Emergency generator

1x Diesel generatorset 212,5 kVA

Batteries

1x Battery for automation 200 Ah

1x Battery for UPS navigation 180 Ah

1x Battery for start emergency engine 56 Ah

Compressed air receivers

2x Receivers each 6.000 litres - 30,0 bar

1x Receiver 40 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 350 litres - 8,0 bar

Bow thruster

1x Transverse thruster - 900 kW, forward

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Cargo gear

2x Cranes - each SWL 40 t

Crew size

30

Manager

RHL Reederei Hamburger Lloyd GmbH & Co. KG
Zirkusweg 2
20359 Hamburg
Federal Republic of Germany

Registered owner

MS "RHL AGILITAS" Schiffahrtsges. mbH & Co. KG
Zirkusweg 2
20359 Hamburg
Federal Republic of Germany

Last update

24.01.2013
