Vlissingen 29 December 2019 |
 |
| Westerschelde 29/12/18 |
|
Name |

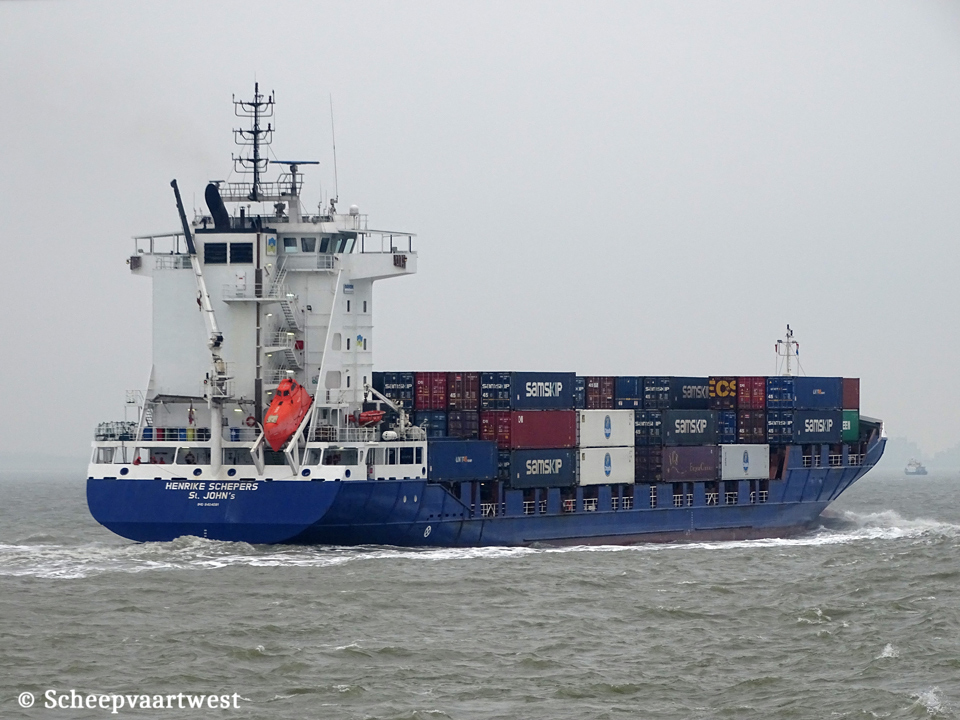

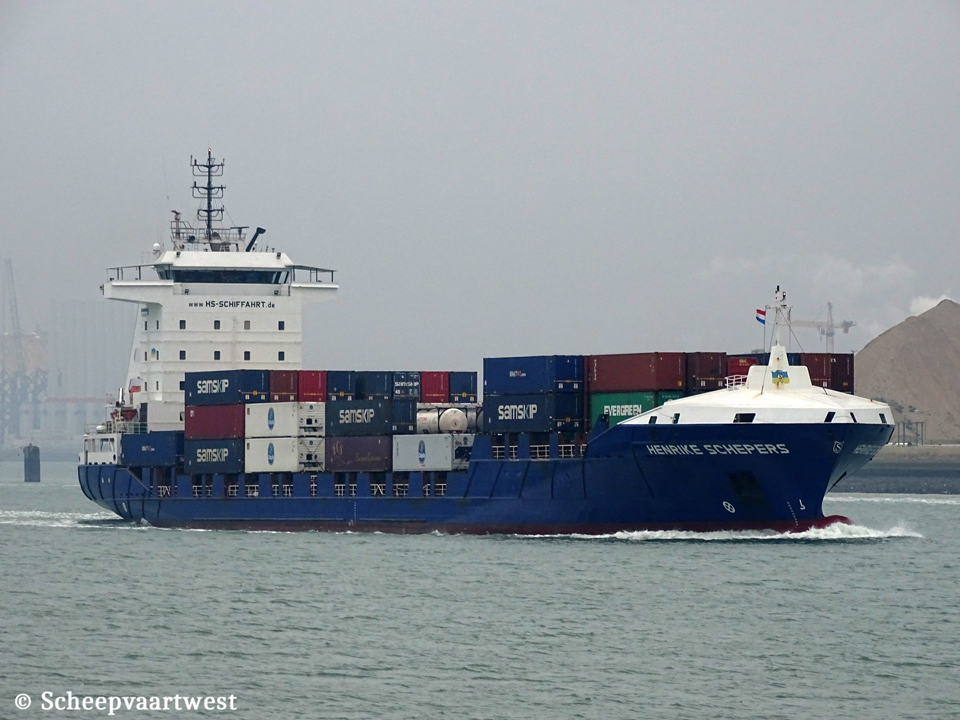

HENRIKE SCHEPERS |
|
Type |
Containership - Feeder |
|
IMO-number |
9404091 |
|
Call sign |
V2HS5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
7.852 t |
|
DWT |
Summer: 9.231 t |
|
NT |
3.363 t |
|
Number of 20ft containers |
In holds: 206 On deck: 579 Total: 785 |
|
Container capacity 14t |
518 |
|
Reefer capacity |
120 |
|
Length |
140,55 m overall 130,60 m between perpendiculars |
|
Breadth |
21,80 m |
|
Draught |
Summer: 7,34 m |
|
Freeboard |
1.880 mm |
|
Depth |
9,50 m |
|
Speed |
18,0 knots |
|
Built |
2008 |
|
Keel laid |
30/03/2006 |
|
Launch date |
15/07/2008 |
|
Date of completion |
15/11/2008 |
|
Builder |
Santierul Naval Damen Galati S.A. Galati Romania |
|
Yard number |
1116 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.413 hp at 500 rpm Builder: Caterpillar Motoren Rostock GmbH - Germany |
|
Propellers |
1x Fixed controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x CHO Aalborg 28,00 m² - 13,0 bar 1x CHR Aalborg 126,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.600 kW / 2.000 kVA |
|
Generators |
2x Scania DI-16 44M main diesel generatorsets each 530 kVA - 424 kW |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x 4 bladed transverse thruster - 700 kW, forward 1x 4 bladed transverse thruster - 500 kW, aft |
|
Number of holds |
3 Hold 1: 28,44 x 18,60/13,20 m Hold 2: 28,44 x 18,60 m Hold 3: 28,44 x 18,60 m, |
|
Cargo hold capacity |
11.948 m³ |
|
Hatch type |
Weatherdeck hatches - Hydraulic multi folding type |
|
Tank capacities |
HFO: 880 m³ MGO: 105 m³ Lubrication oil: 48 m³ Dirty oil: 20 m³ Potable water: 74 m³ Ballast water: 4597 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Length: 550,00 m |
|
Crew |
12 |
|
Manager |
HS Schiffahrts GmbH & Co KG Thyssenstraße 16 49733 Haren (Ems) Germany |
|
Owner |
HS Schiffahrts UG (haftungsbeschraenkt) & Co. KG MS 'Simke Schepers' |
|
Latest data adjustment |
19 June 2021 |
