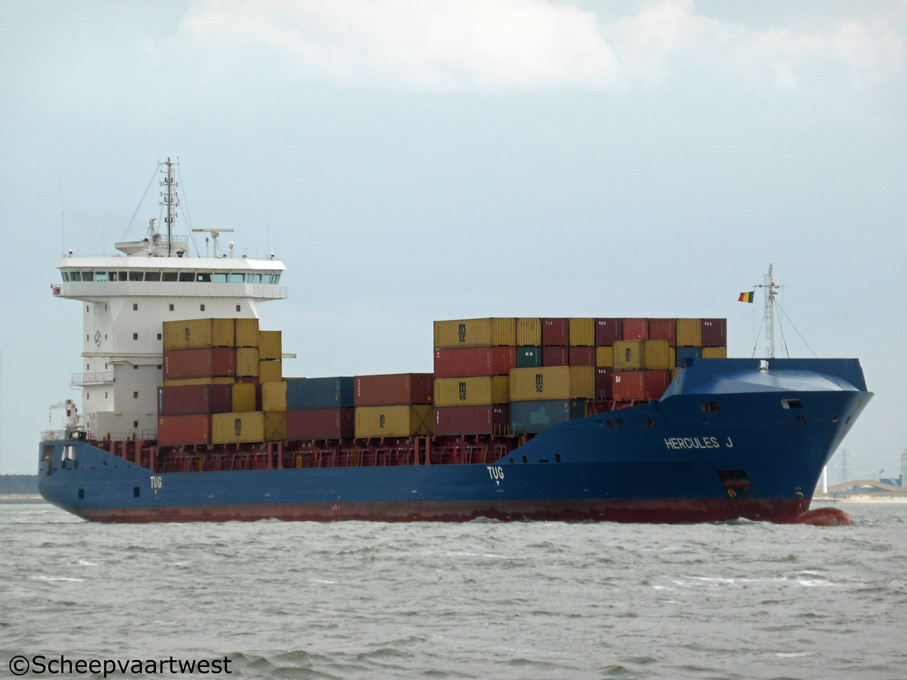

Hercules J 01

Westerschelde 29 April 2015

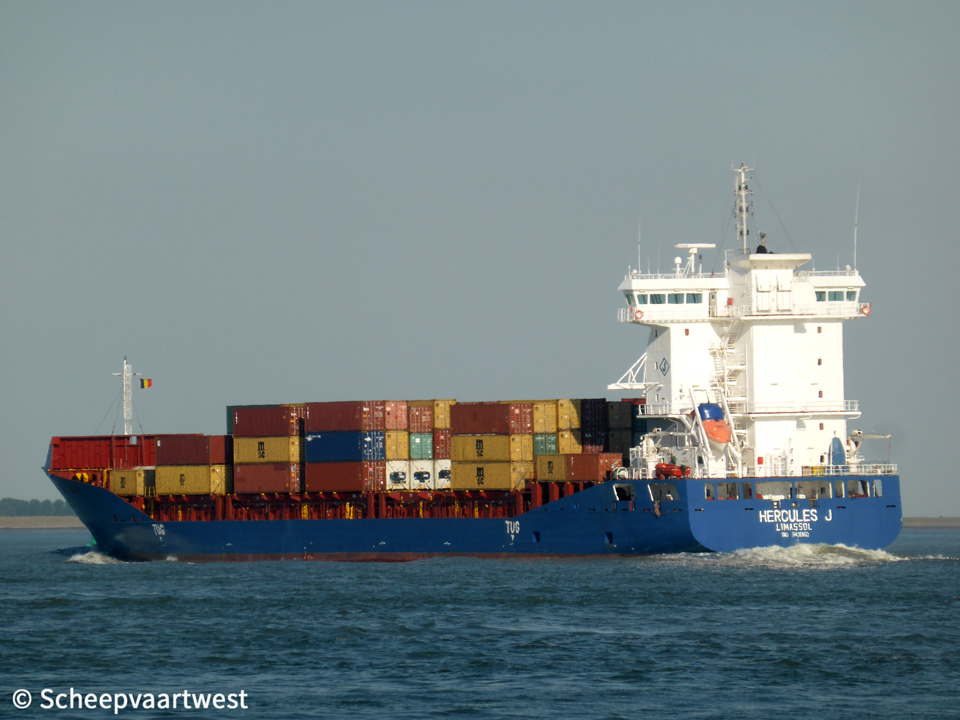

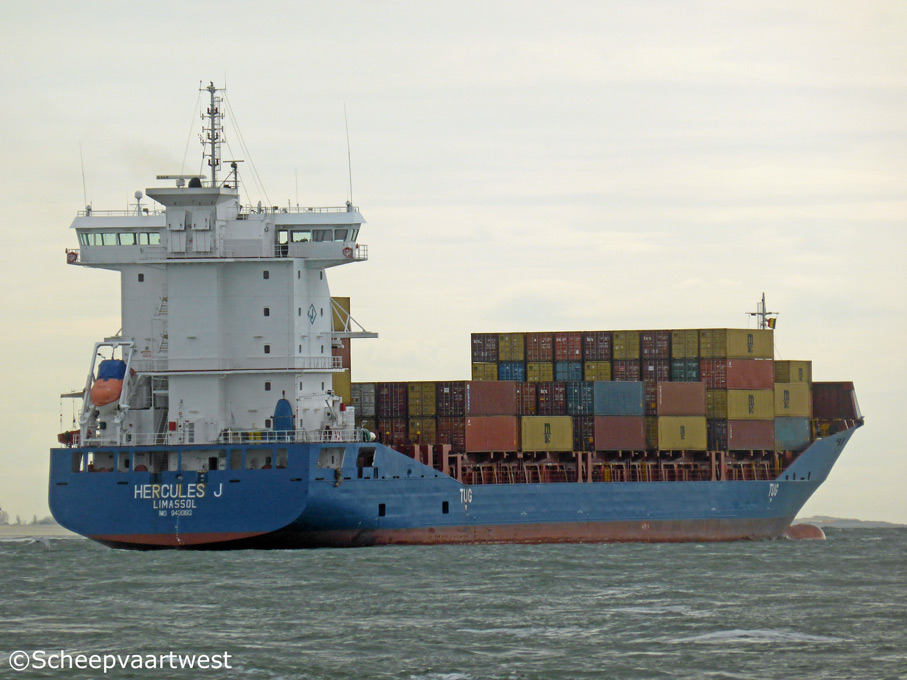

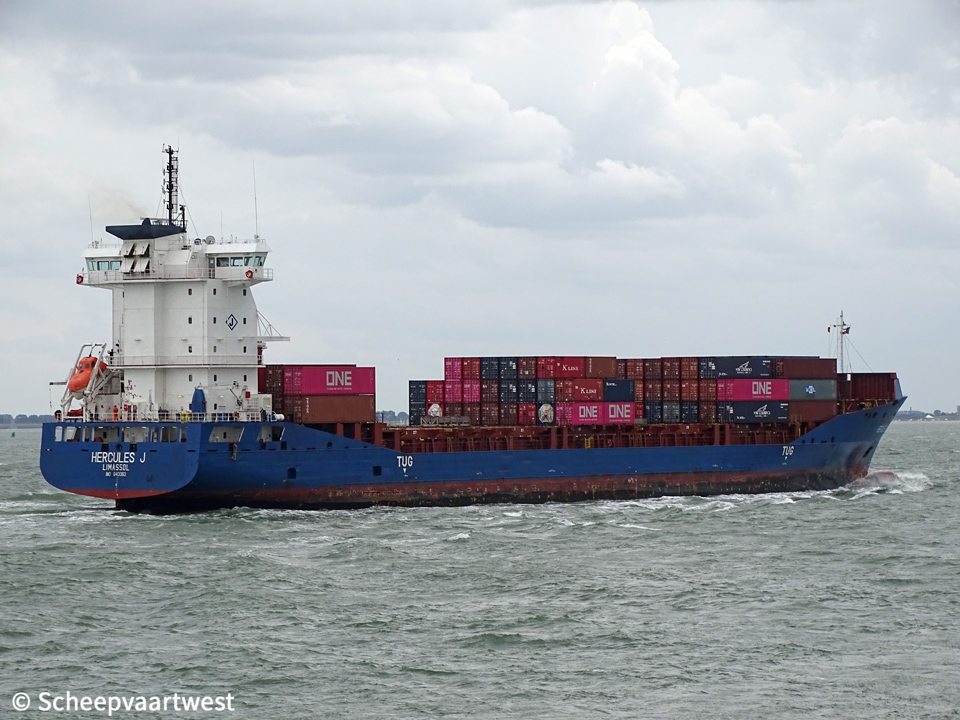

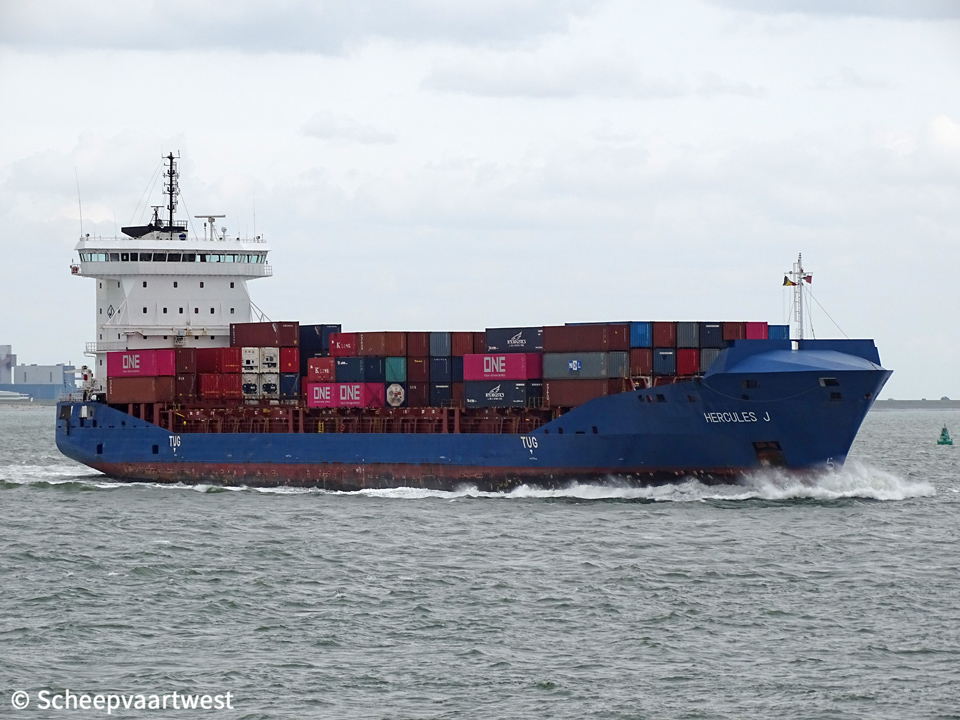

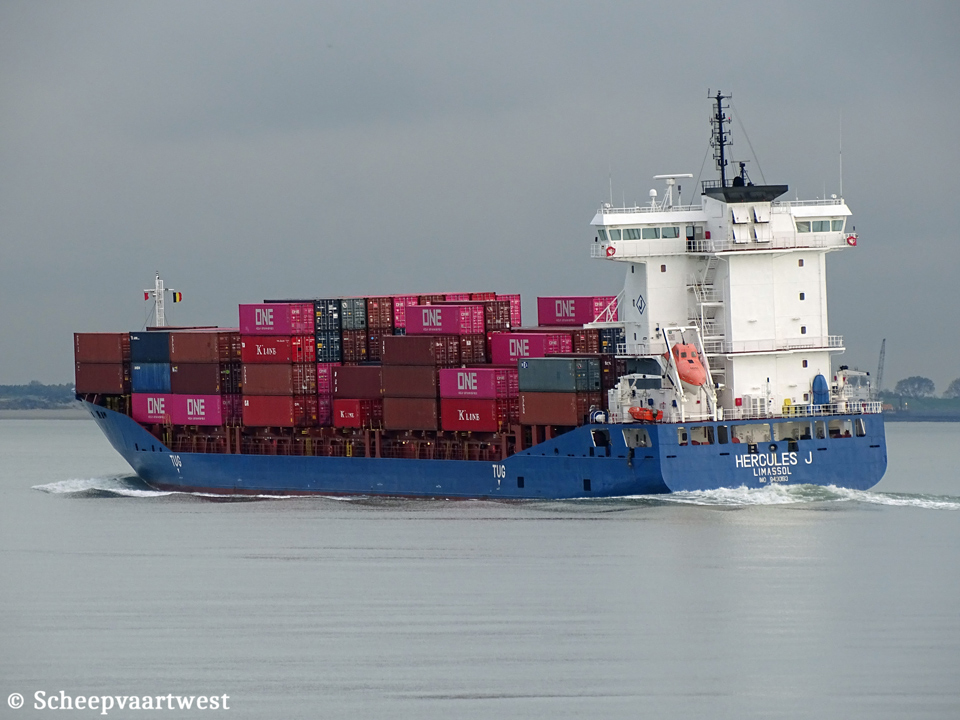

Hercules J 02   Hercules J 03   Hercules J 04   Hercules J 05   Hercules J IMO 9430193 06
Westerschelde 29/04/15 Westerschelde 30/06/15 Westerschelde 11/08/19 Westerschelde 11/08/19   Westerschelde 03/11/19



Name

HERCULES J

Type

Containership

IMO-number

9430193

Call sign

5BDG4

Flag

Cyprus

Port of registry

Limassol

GT

10.585 t

DWT

Summer: 12.893 t

NT

5.372 t

Number of 20ft containers

On deck: 714

Under deck: 322

Total: 1.036

Number of 40ft containers

511

Container capacity 14t

740

Reefer capacity

114 in hold

136 on deck

Total: 250

Length

151,72 m overall

142,37 m between perpendiculars

Breadth

23,43 m extreme

Draught

Summer: 8,00 m

Freeboard

1.510 mm

Depth

11,75 m

Speed

18,5 knots

Built

2009

Keel laid

03/12/2007

Launch date

01/09/2009

Date of completion

27/11/2009

Builder

Jiangdong Shipyard of China Changjiang Shipping Group

Anhui

China

Yard number

JD1000TEU-01

Hull material

Steel

Hull type

Partly double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 9.000 kW at 500 rpm

Year of manufacture: 2009

Manufacturer: Caterpillar Motoren Rostock GmbH

Werftallee 13

18119 Rostock

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 120 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 15,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 135,0 m²

Year of manufacture: 2008

Manufacturer: Aalborg Industries Ltd.

86, Guangzhou Road North Jiaozhou

266300 Qingdao 120

People's Republic of China

Electric installations

3x Plants each 450 V - 712 kVA

1x Plant 450 V - 2.125 kVA

1x Plant 450 V - 394 kVA

Shaft generator

1x 2.125 kVA - 1.700 kW

Generators

3x MAN D2842LE 301 main diesel generatorsets 712 kVA - 570 kW - 842 hp

Emergency generator

1x MAN D2842LE 301 main diesel generatorset 394 kVA - 315 kW - 523 hp

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver 100 litres - 33,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x 800 kW, forward

Number of holds

3

Hold 1: 25,60 x 20,60 m

Hold 2: 28,20 x 20,60 m

Hold 3: 12,60 x 20,60 and 12,60 x 15,60 m (taper)

Number of hatches

6

Hatch type

Hydraulic operated flap covers

Tank capacities

Fuel oil: 1.063 m³

Diesel oil: 128 m³

Water ballast: 5.500 m³

Anchor equipment

3x Anchors weight each 6.000 kg

Length: 577,50 m

Diameter: 60 mm

Cargo gear

Gearless

Manager

Jüngerhans Maritime Services GmbH & Co. KG

Boschstraße 31

49733 Haren (Ems)

Germany

Operator

ARKON Shipping GmbH & Co. KG

Boschstrasse 16

D-49733 Haren (Ems)

Germany

Registered owner

MS "HERCULES J" Schiffahrtsges. UG (haftungsbeschränkt) & Co. KG

Latest data adjustment

08 June 2020
