Westerschelde 07 April 2019 |
|
Name |

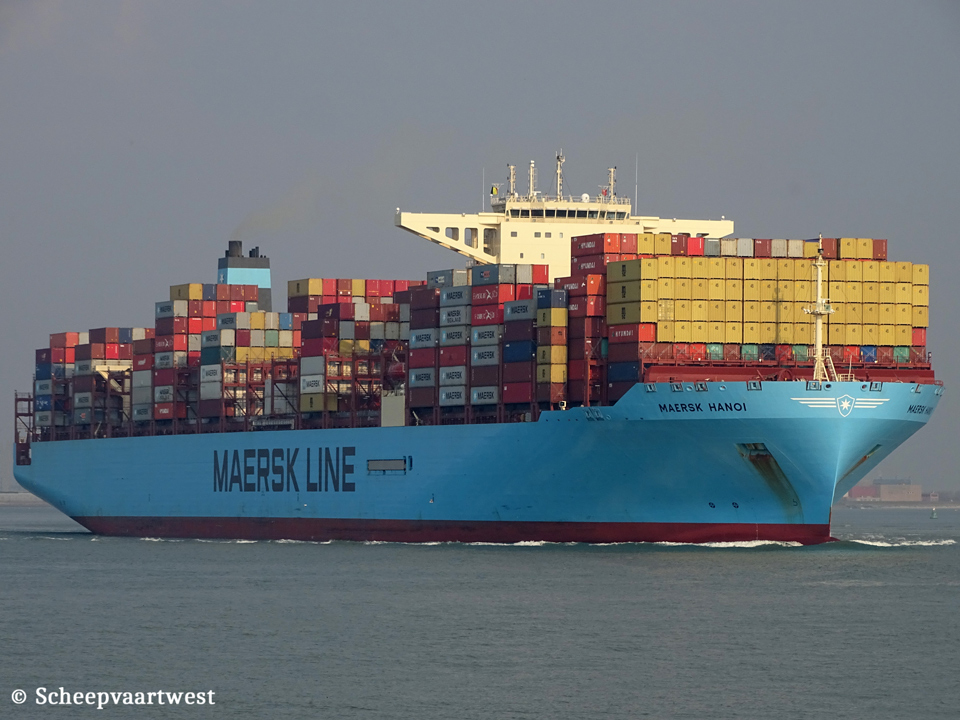

MAERSK HANOI |
|
Type |
Cellular containership - Carriage of dangerous goods - Refrigerated cargo |
|
IMO-number |
9784295 |
|
Call sign |
9V5601 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GRT |
153.744 t Suez: 157.986,21 t |
|
DWT |
161.905,3 t |
|
NRT |
79.806 t Panama: 143.423,04 t |
|
Displacement |
207.748 t |
|
Number of 20ft containers |
15.282 |
|
Reefer capacity |
1.000 |
|
Length |
353,02 m overall 340,50 m between perpendiculars |
|
Breadth |
53,50 m moulded |
|
Draught |
Summer: 17,00 m |
|
Freeboard |
6.677 mm |
|
Depth |
29,90 m moulded |
|
Speed |
Max: 23,0 knots |
|
Built |
2018 |
|
Keel laid |
15/12/2015 |
|
Launch date |
01/09/2017 |
|
Date of completion |
06/01/2018 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Bangeojinsunhwan-Doro, Dong-Gu Ulsan South Korea |
|
Yard number |
2875 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-BW/Hyundai 8G95ME-C9.5 - 2 stroke 8 cylinder 950 x 3.460 mm combustion engine Mcr 54.960 / 74.724 hp at 80,0 rpm Manufacturer: HHI Engine & Machinery Div |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div |
|
Boilers |
1x Exhaust gas boiler Aalborg XS-2V - 9,0 MPa 2x Exhaust gas boiler Aalborg XS-TC7A each 12,0 MPa 1x Auxiliary boiler, oil fired Mission OS Tci - 8,80 MPa |
|
Shaft generator |
1x Siemens generator 3.200 kW |
|
Generators |
4x Main diesel generatorsets each 2.850 kW Manufacturer: HHI Electro Electric System |
|
Tank capacities |
Ballast: 50.119,30 m³ Fuel oil: 11.959,60 m³ Lub oil: 589,60 m³ |
|
Lifting equipment |
2x Engine room crane - SWL 12,5 t 1x Monorail crane - SWL 12,5 t 1x Provision crane starboard starboard- SWL 5,0 t 1x Provision crane starboard port side - SWL 2,5 t Manufacturer: Oriental Precision Machinery Co., Ltd. |
|
Crew |
34 |
|
ISM & commercial manager |
Maersk Line AS Esplanaden 50 1263 Copenhagen, K Denmark |
|
Registered owner |
Moller Singapore AP Pte Ltd. 13-01, Paya Lebar Quarter, 1, Paya Lebar Link Singapore 408533 Republic of Singapore |
|
Latest data adjustment |
25 September 2021 |
