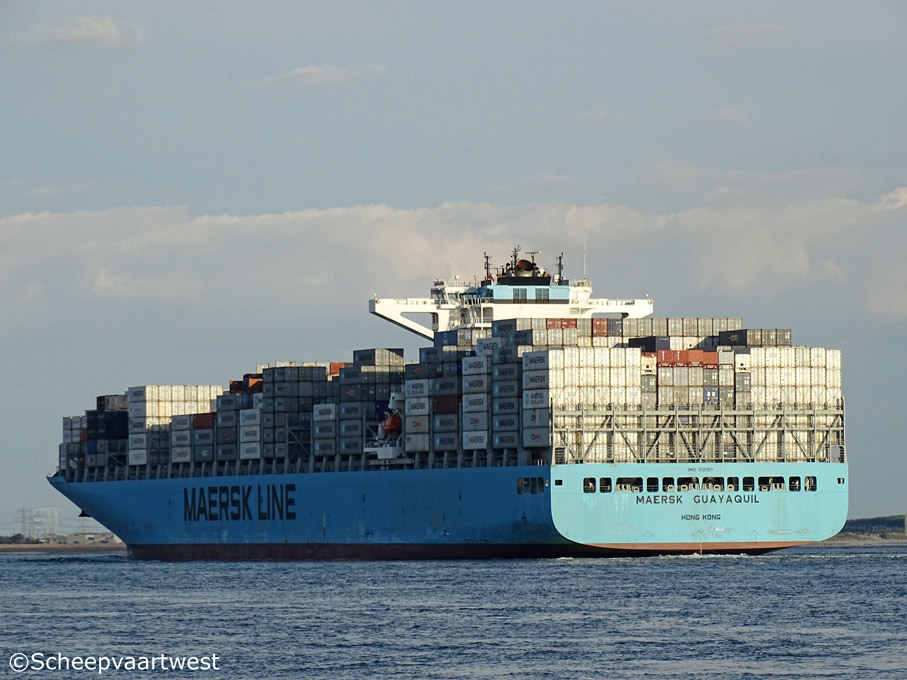

Westerschelde 08 October 2016 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 08/10/16 | Westerschelde 11/08/18 | Westerschelde 15/07/17 | Westerschelde 22/05/17 | Westerschelde 10/06/17 | Westerschelde 11/06/17 | |||||
|
Name |
MAERSK GUAYAQUIL |
|
Type |
Cellular containership |
|
IMO-number |
9727871 |
|
Call sign |
VROS8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
113.042 t |
|
DWT |
119.359 t |
|
NT |
59.440 t |
|
Number of 20ft containers |
10.000 |
|
Container capacity 14t |
8.060 |
|
Reefer capacity |
1.000 |
|
Length |
336,95 m overall 321,78 m between perpendiculars |
|
Breadth |
48,33 m extreme 48,22 m moulded |
|
Draught |
15,52 m |
|
Depth |
27,20 m |
|
Speed |
Max: 23,8 knots Service: 21,0 knots |
|
Built |
2015 |
|
Keel laid |
27/06/2014 |
|
Launch date |
27/03/2015 |
|
Date of completion |
18/09/2015 |
|
Builder |
Jiangsu Yangzi Xinfu Shipbuilding Co., Ltd. Jingjiang JS Yard China |
|
Yard number |
YZJ2013-1105 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 10S90ME-C9.2 - 2 stroke single acting 10 cylinder 900 x 3.260 mm combustion engine Mcr 58.116 kW/ 79.015 ph at 84,0 rpm Builder: CSSC-MES Diesel Co Ltd - China |
|
Propellers |
1x Fixed pitch mono-block propeller - aft at 84,0 rpm Builder: Nakashima |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated XS-7V 1x Auxiliary boiler, oil/gas fired MISSION OS-Tci-5500 Builder: Alfa Laval Aalborg A/S |
|
Generators |
2x Daihatsu 6DC-32 - 4 stoke 6 cylinder 320 x 400 mm diesel engines each Mcr 3.300 kW connected with generators each 3.185 kW 2x Daihatsu 8DC-3 - 4 stoke 6 cylinder 320 x 400 mm diesel engines each Mcr 4.000 kW connected with generators each 3.860 kW Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory |
|
Emergency generator |
1x Doosan V/AD 180 diesel generatorset 194 kW Builder: Doosan Infracore Co., Ltd. |
|
Bow thrusters |
1x Tunnel thruster 2.410 kW / 3.277 bhp, forward |
|
Tank capacities |
Ballast: 31.530,1 m³ HFO: 10.067 m³ MGO: 517 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
Seaspan Ship Management, Ltd. Suite 2600, 200, Granville Street Vancouver BC V6C 1S4 Canada |
|
Operator |
Maerks Line |
|
Registered owner |
Seaspan 1105 Ltd. |
|
Latest data adjustment |
06 August 2024 |
