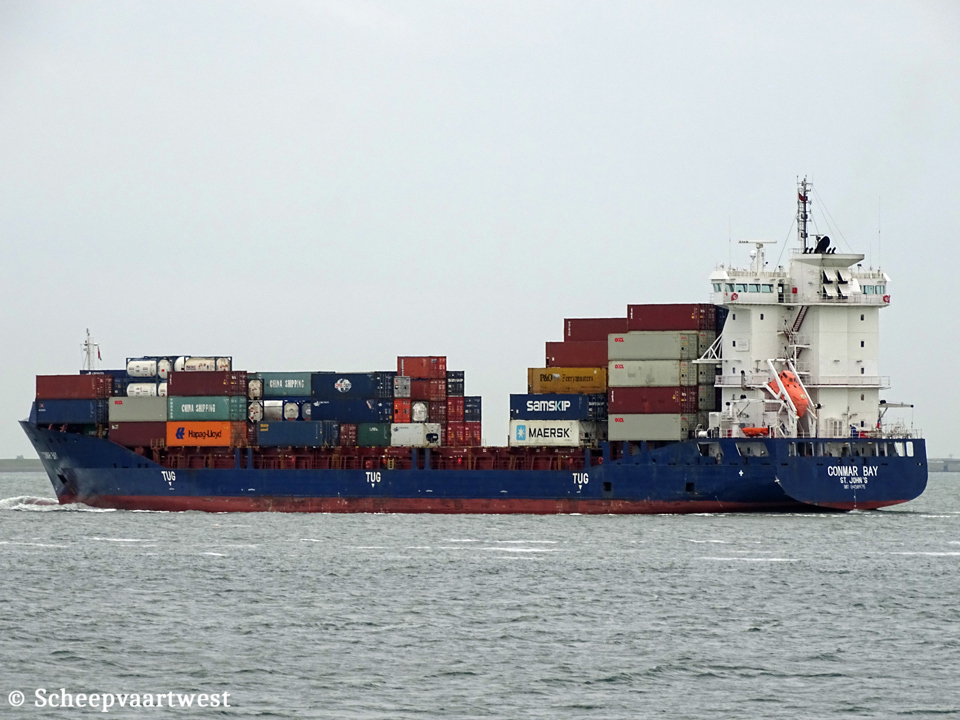

Westerschelde 03 June 2019 |
|
Name |
CONMAR BAY |
|
Previous names |
2012 - 2012 Haiwan 2012 - 2019 Conmar Bay 2019 - 2020 Samskip Estrela |
|
Type |
Cellular containership Type: SSW Super 1000 |
|
IMO-number |
9458975 |
|
Call sign |
V2GC2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
10.585 t |
|
DWT |
Summer: 13.200 t |
|
NT |
5.372 t |
|
Number of 20ft containers |
In hold: 322 On deck: 714 Total: 1.036 |
|
Number of 40ft containers |
In hold: 114 On deck: 136 |
|
Reefer capacity |
257 |
|
Length |
151,72 m overall 142,37 m between perpendiculars |
|
Breadth |
23,40 m |
|
Draught |
Summer: 8,0 m |
|
Keel to mast end |
43,66 m |
|
Freeboard |
1.510 mm |
|
Depth |
11,75 m |
|
Speed |
Max: 18,5 knots |
|
Built |
2012 |
|
Keel laid |
01/10/2007 |
|
Launch date |
08/12/2010 |
|
Date of completion |
18/06/2012 |
|
Builder |
Jiangdong Shipyard Of China Changjiang Shipping Group Anhui China |
|
Yard number |
JD1000TEU-9 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8L46/60B - 4 stroke 8 cylinder 430 x 600 mm combustion engine 9.000 kW / 12.228 hp at 500 rpm Builder: MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 120,0 rpm |
|
Boilers |
1 CHM Mission OC 135,00 m² / 7,0 Bar |
|
Shaft generator |
1x 2.125 kVA - 1.700 kW |
|
Generators |
3x Main diesel generatorsets each 625 kVA - 500 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 394 kVA - 315 kW - 550 hp |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
3 |
|
Tank capacities |
Fuel: 1.180 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Conmar Shipping GmbH & Co. KG Jork Niederelbe Germany |
|
Owner |
Schifffahrtsgesellschaft Conmar Bay mbH & Co. KG Germany |
|
Renamed |
2021 Skalar Portugal, Madeira - Call sign: CQES9 Reg. owner: Reederei Rambow GmbH & Co. KG MS ''SKALAR'' - Germany Manager: Rambow Reederei, 21706 Drochtersen - Germany |
|
Latest data adjustment |
23 October 2021 |
