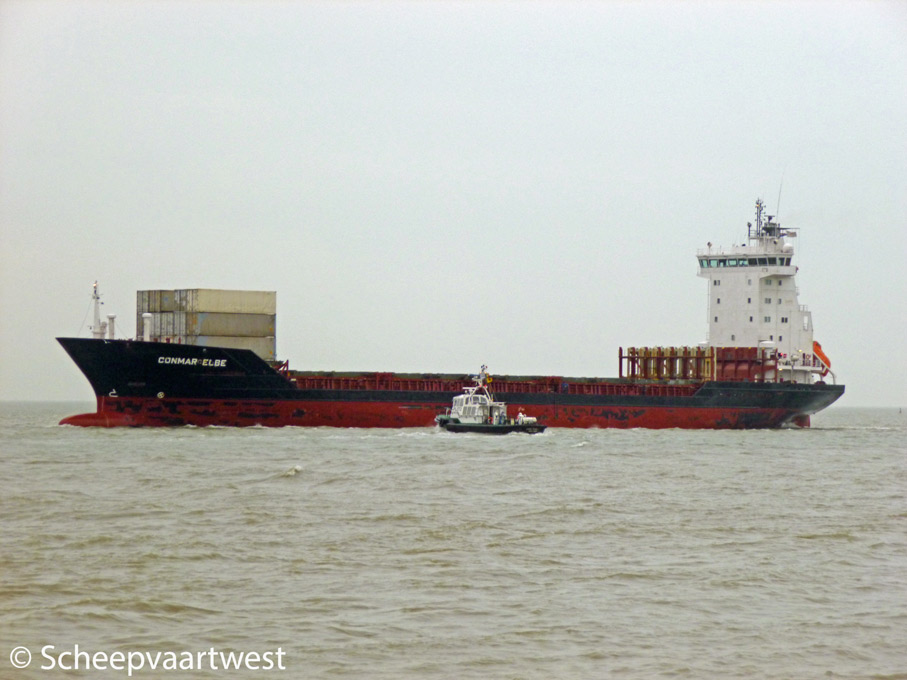

| Westerschelde 24 December 2012 |
 |

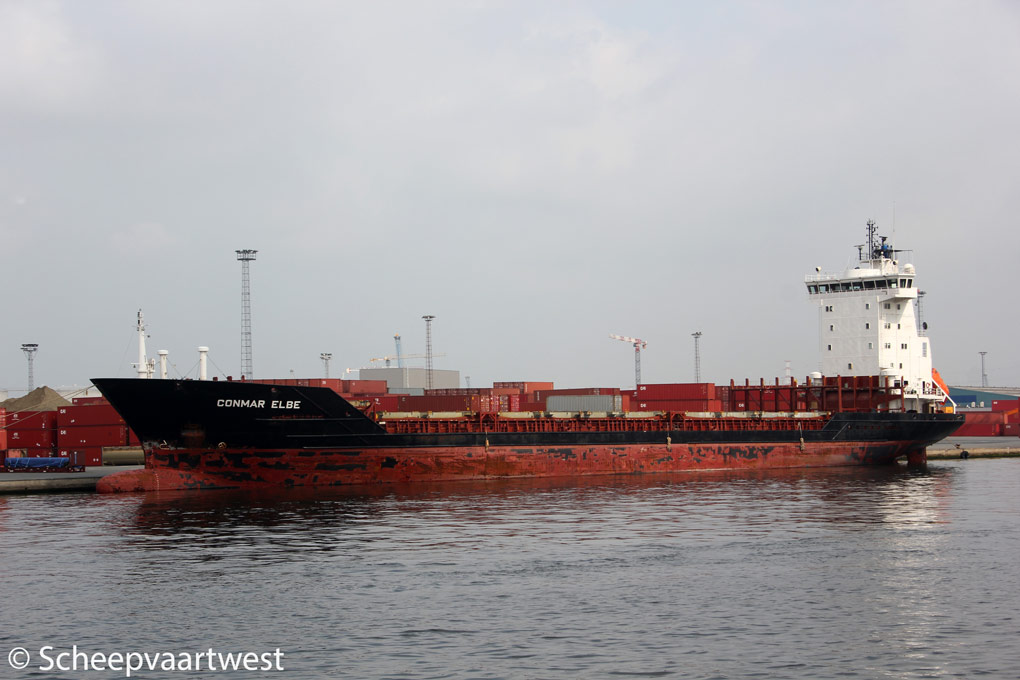

| Antwerpen 05/07/13 |
|
Name |
CONMAR ELBE |
|
Previous names |
2001 - 04/2012 Euro Storm |
|
Type |
Containership |
|
IMO-number |
9244180 |
|
Call sign |
5BQU3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flag |
2001 - 2011 Germany 2001 - 2012 United Kingdom - Call sign: VSPY6 |
|
GT |
6.191 t |
|
DWT |
7.992 t |
|
NT |
3.075 t |
|
Number of 20ft containers |
660 |
|
Container capacity 14t |
443 |
|
Reefer capacity |
110 |
|
Length |
132,61 m overall 123,55 m registered |
|
Breadth |
19,20 m registered |
|
Draught |
6,98 m |
|
Keel to mast end |
26,00 m |
|
Depth |
9,20m |
|
Poop |
10,11 m |
|
Speed |
18,0 knots |
|
Built |
2001 |
|
Keel laid |
18/06/1998 |
|
Launch date |
06/10/2001 |
|
Date of completion |
28/12/2001 |
|
Builder |
Peters Schiffbau AG Am Hafen 6 25599 Wewelsfleth Federal Republic of Germany |
|
Yard number |
671 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8M43 - 4 stroke single acting 8 cylinder 430 x 610 mm combustion engine 7.200 kW at 500 rpm Year of manufacture: 2001 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 172 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 34,8 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 139,0 m² Year of manufacture: 2001 Manufacturer: PWT Prozesswärmeträgertechnik GmbH Max-Weber-Str. 10 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
2x Plants each 380/220 V - 438 kVA 1x Plant 380 V - 1.563 kVA 1x Plant 380 V - 438 kVA |
|
Shaft generator |
1x 1.563 kVA / 1.250 kW |
|
Generators |
2x Volvo Penta TAMDS163 AKC main diesel generatorsets each 438 kVA |
|
Emergency generator |
1x Volvo Penta TAMDS163 AKC diesel generatorset 438 kVA / 350 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 410 kW, forward |
|
Cargo hold capacity |
Bale; 9.975 m³ Grain: 10.300 m³ |
|
Number of hatches |
4 |
|
Anchor equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m Diameter: 50 mm |
|
Crew size |
19 |
|
ISM & commercial manager |
Conmar Shipping GmbH & Co. KG Obstmarschenweg 11a 21635 Jork Federal Republic of Germany |
|
Registered owner |
Aetilo Shipping Ltd., 3013 Limassol - Republic of Cyprus Care of Conmar Shipping GmbH & Co KG Obstmarschenweg 11A 21635 Jork Niederelbe Germany |
|
Renamed |
11/2021 Elbe Liberia, Monrovia - call sign: 5LDJ9 Owner: Elbe Shipping & Trading Ltd. Manager: Toba Ship Management Co. Ltd. |
|
Latest data adjustment |
01 February 2022 |
